SMT DP Port Receptacle Connector, 20 Pin, Right Angle, Locating Peg, CS2 Shell, T&R
Introduction:
This SMT DP port receptacle connector provides a 20-pin, right-angle interface for surface-mount PCB layouts. Packaged in tape and reel (T&R), it feeds smoothly into automated pick-and-place lines for high-volume manufacturing. Integrated locating pegs ensure precise PCB alignment and prevent placement shift during solder reflow. The nickel-plated copper alloy CS2 shell delivers robust mechanical protection and effective shielding. In addition, copper alloy contacts with 15µ” gold plating over nickel underplate keep contact resistance below 30 mohms under 40 VAC. Common applications include graphics add-in cards, industrial box PCs, video capture modules, and high-definition monitors.
Key Features
- Tape & Reel Packaging: Supports high-speed automated SMD pick-and-place assembly.
- Integrated Locating Pegs: Prevents component misalignment during reflow soldering.
- 15µ” Gold Plating: Ensures reliable conductivity and contact oxidation resistance.
- CS2 Metal Shell: Provides mechanical durability and shielding protection.

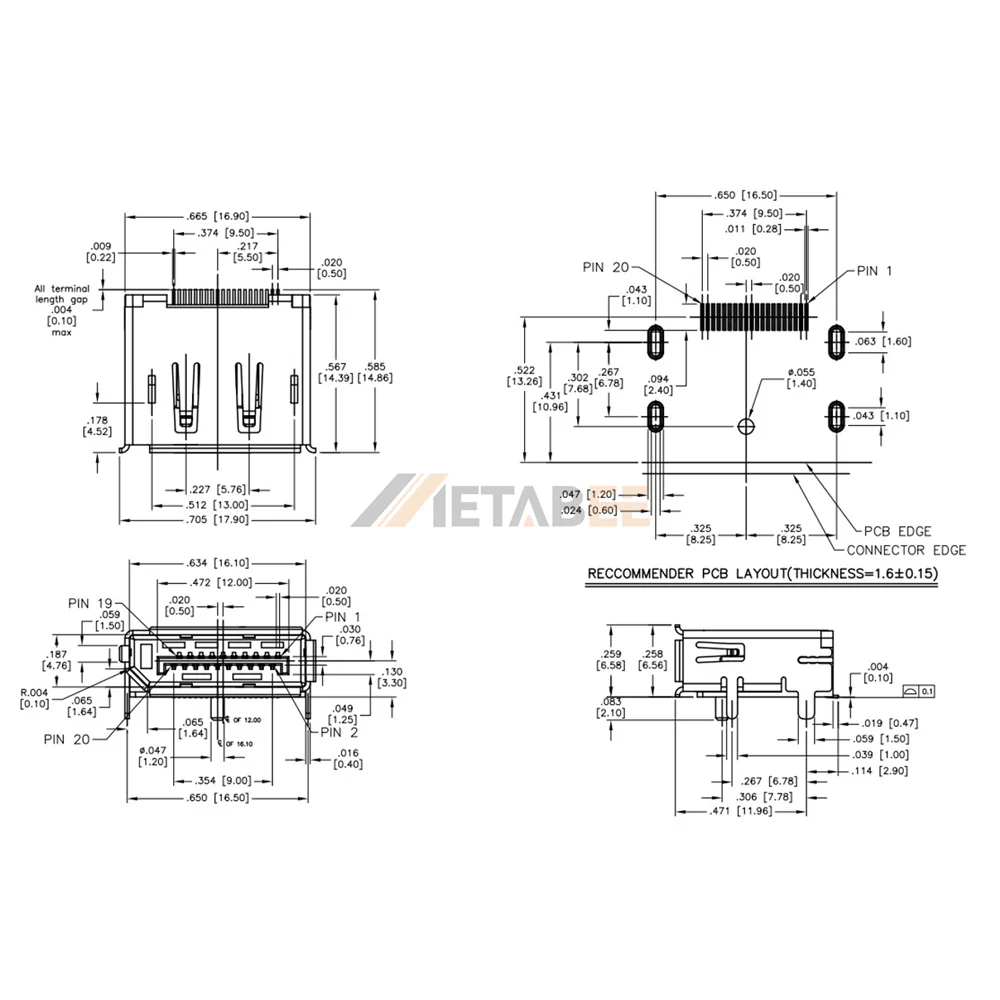

Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-SMT-P-CS2-15-TR | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Surface Mount | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Locating Peg | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | CS2 Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Thermal Plastic, UL 94V-0 | |
| Shell Material: | Copper Alloy, Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | 15 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -20°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
