20 Pin Female Mini DP Receptacle Port, Through Hole, R/A, 3.2mm Tail, Tape & Reel
Introduction:
This 20-pin female Mini DP receptacle port provides a right-angle interface configured for through-hole PCB termination. Packaged in tape & reel (TR), it directly feeds automated pick-and-place equipment while 3.2mm solder tails create secure mechanical joints to resist cable pull forces. The nickel-plated brass shell delivers physical shielding against electromagnetic interference. Using UL 94V-0 high-temperature thermoplastic, the body maintains dimensional stability during wave soldering and runs stably from -40°C to +85°C. Phosphor bronze contacts with gold flash over nickel keep contact resistance under 30 mohms at 0.5 A. Engineers commonly install this port on edge computing platforms, multi-output graphics boards, industrial tablets, and digital signage players.
Key Features
- Tape & Reel Packaging: Accelerates automated feeder loading for high-speed assembly.
- 3.2mm Solder Tails: Delivers strong mechanical anchoring against cable pull forces.
- Compact Mini DP Design: Saves horizontal board space in low-profile hardware.
- Nickel-Plated Brass Shell: Blocks electromagnetic noise to maintain signal clarity.

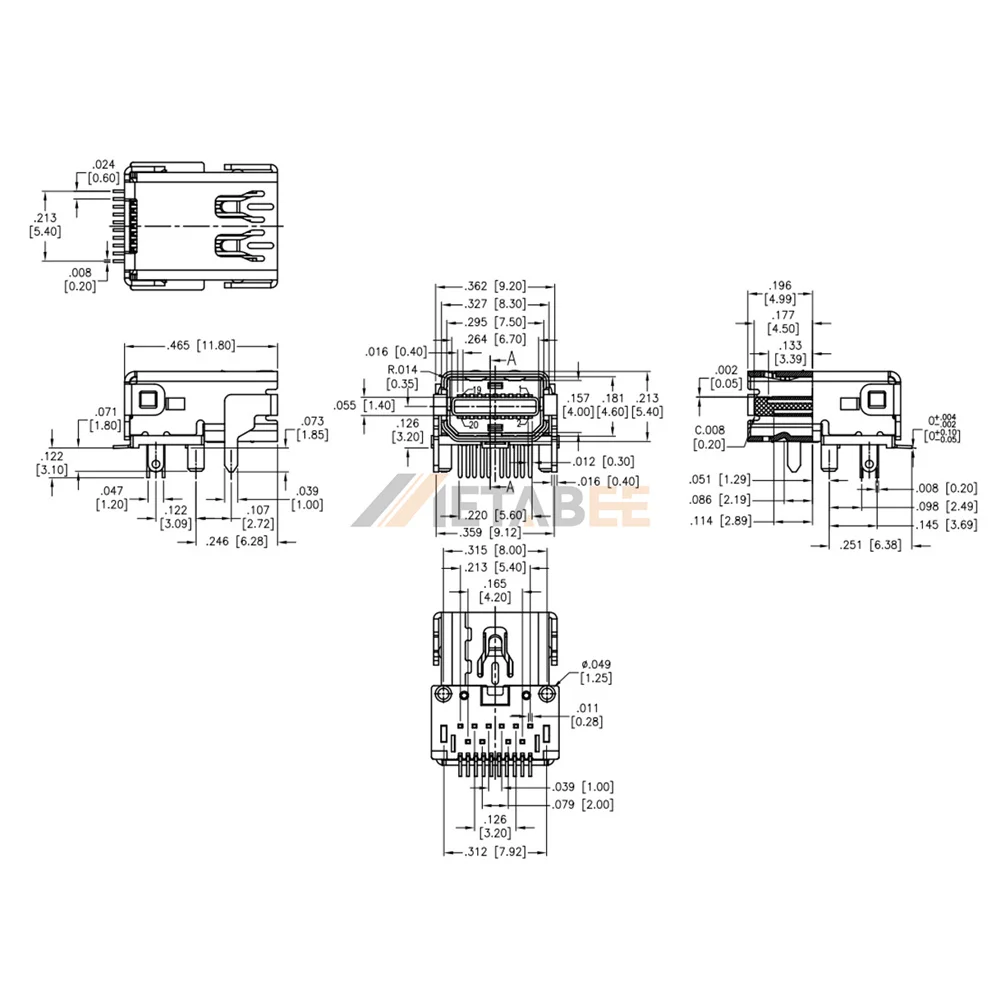

Main Specifications:
General Information:
| Product No.: | MDPC-S-RA-3.2-T/R | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
