Mini Display Port Receptacle Connector, 20 Pin, Through Hole, R/A, 3.2mm Tail for 0.091″ PCB
Introduction:
This Mini DisplayPort receptacle connector provides a 20-pin, right-angle interface designed for horizontal PCB integration. Supplied in tape and reel (TR) packaging, it supports automated placement while featuring 3.2mm solder tails specifically dimensioned for 0.091″ (2.3 mm) thick circuit boards. The nickel-plated brass shell ensures structural strength and shields high-speed video channels against electromagnetic interference. Built with UL 94V-0 rated high-temperature thermoplastic, the body withstands wave soldering temperatures without warping, operating reliably from -40°C to +85°C. In addition, phosphor bronze contacts with gold flash over nickel maintain contact resistance below 30 mohms under a 0.5 A current rating. Common applications include multi-display graphics boards, embedded computing systems, medical diagnostic monitors, and industrial imaging hardware.
Key Features
- 0.091″ PCB Compatibility: 3.2mm solder tails fit 0.091″ thick circuit boards.
- Tape & Reel Packaging: Enables high-speed automated assembly line feeding.
- Gold Flash Contacts: Maintains low resistance below 30 mohms for video.
- Nickel-Plated Brass Shell: Provides physical rigidity and blocks EMI noise.
Main Specifications:
General Information:
| Product No.: | MDPC-S-RA-3.2-.091-TR | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |

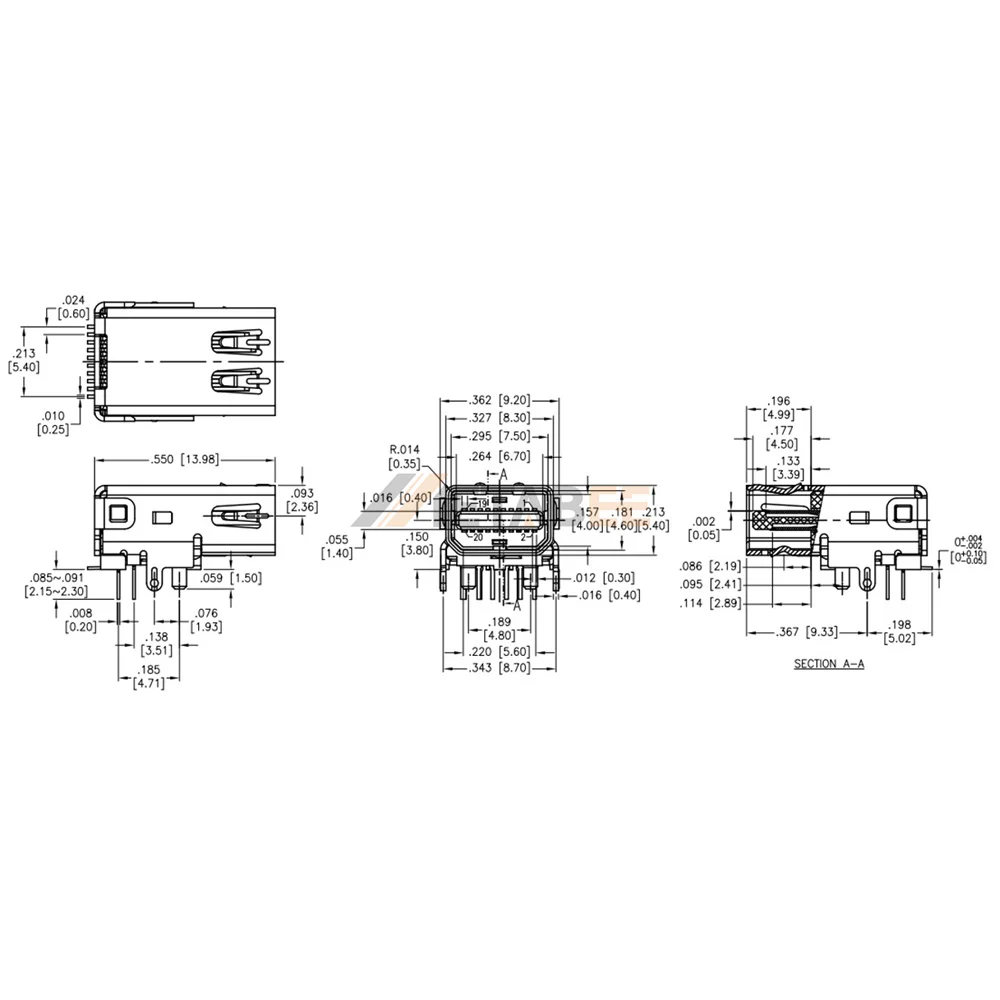

DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
