DisplayPort Mini DP Receptacle, 20 Pin, PCB Mount, Through Hole, R/A, 3.8mm Tail
Introduction:
This DisplayPort Mini DP receptacle provides a compact 20-pin horizontal interface designed for through-hole PCB termination. Packaged in tape and reel (TR), it supports automated production lines while utilizing extended 3.8mm solder tails to achieve deep, solid solder joints on thick multilayer circuit boards. The nickel-plated brass shell provides physical protection and shields against unwanted electromagnetic interference. Its UL 94V-0 high-temperature thermoplastic body withstands soldering heat and operates reliably across -40°C to +85°C. Phosphor bronze contacts with 30µ” gold plating maintain contact resistance below 30 mohms at 0.5 A. This receptacle is widely used in compact industrial single-board computers, multi-display graphic add-on cards, embedded edge computing gateways, and medical endoscopy monitors.
Key Features
- Tape & Reel Packaging: Enables automated feeder loading for high-speed assembly.
- 3.8mm Solder Tails: Ensures solid through-hole anchoring on thick circuit boards.
- 30µ” Gold Plating: Delivers durable wear resistance and reliable signal conductivity.
- Nickel-Plated Brass Shell: Shields internal lines against electromagnetic noise.

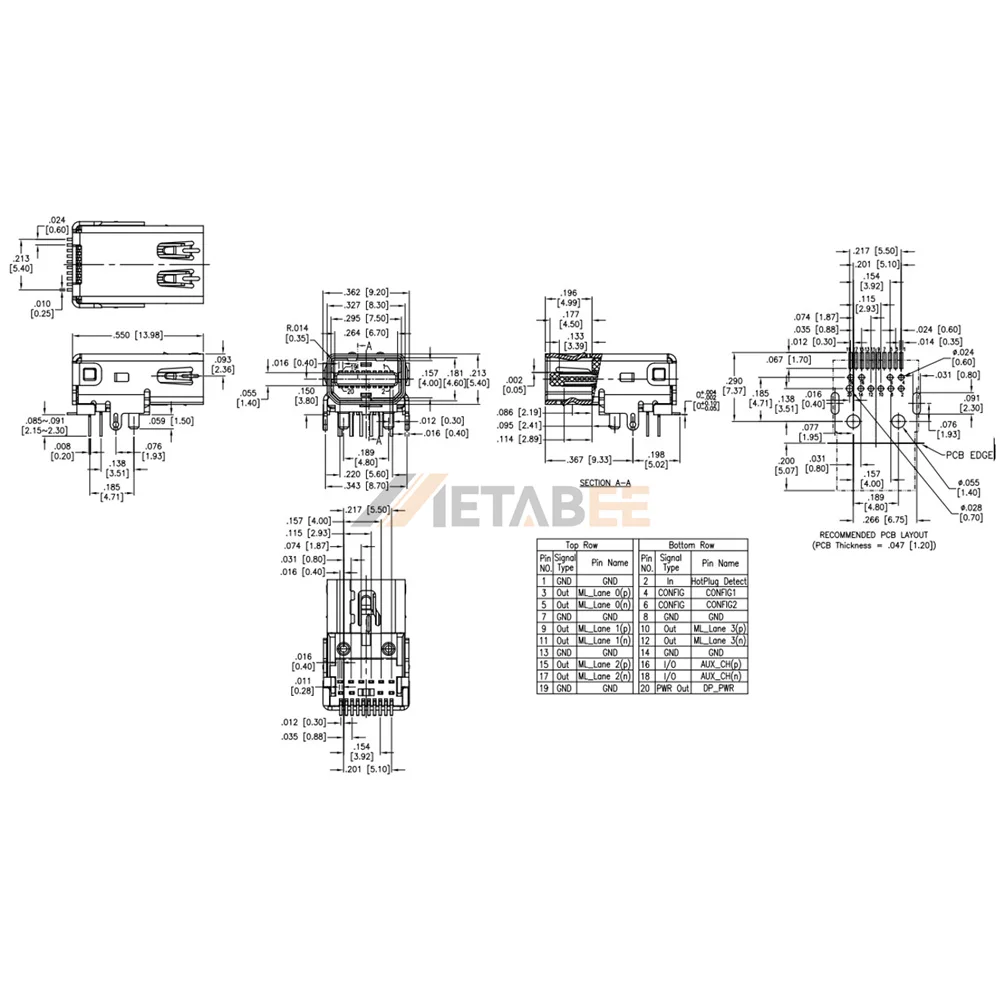

Main Specifications:
General Information:
| Product No.: | MDPC-S-RA-3 8-30-TR | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | 30 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
