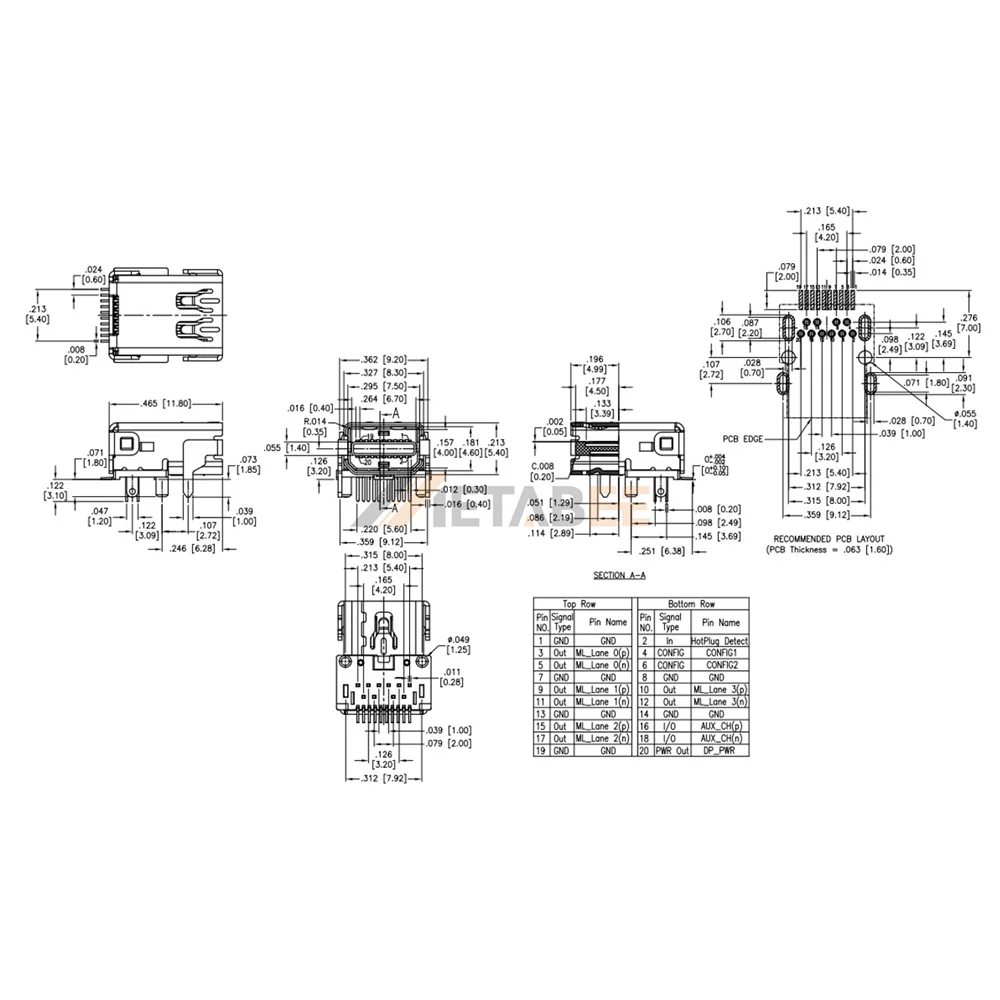

Mini DP Port Receptacle Connector, 20 Pin, PCB-THT, Right Angle, 3.2mm Solder Tail
Introduction:
This Mini DP port receptacle connector features a 20-pin right-angle structure designed for through-hole PCB mounting. Outfitted with 3.2mm solder tails, it provides deeper hole penetration on standard circuit boards, forming sturdy solder joints that resist mechanical shock and vibration. The nickel-plated brass shell delivers high physical rigidity and blocks unwanted electromagnetic interference. Its UL 94V-0 high-temperature thermoplastic body withstands wave soldering temperatures without warping, operating reliably from -40°C to +85°C. Furthermore, phosphor bronze contacts with gold flash over nickel maintain contact resistance below 30 mohms at 0.5 A. Engineers commonly deploy this interface on industrial single-board computers, graphic add-on cards, embedded video capture devices, and portable test instruments.
Key Features
- 3.2mm Solder Tails: Delivers strong mechanical anchoring in through-hole PCB mounting.
- Gold Flash Contacts: Ensures low resistance below 30 mohms for video signals.
- Compact Mini DP Design: Saves horizontal board space in low-profile devices.
- Nickel-Plated Brass Shell: Shields internal lines against harsh electromagnetic interference.
Main Specifications:
General Information:
| Product No.: | MDPC-S-RA-3 2 | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
