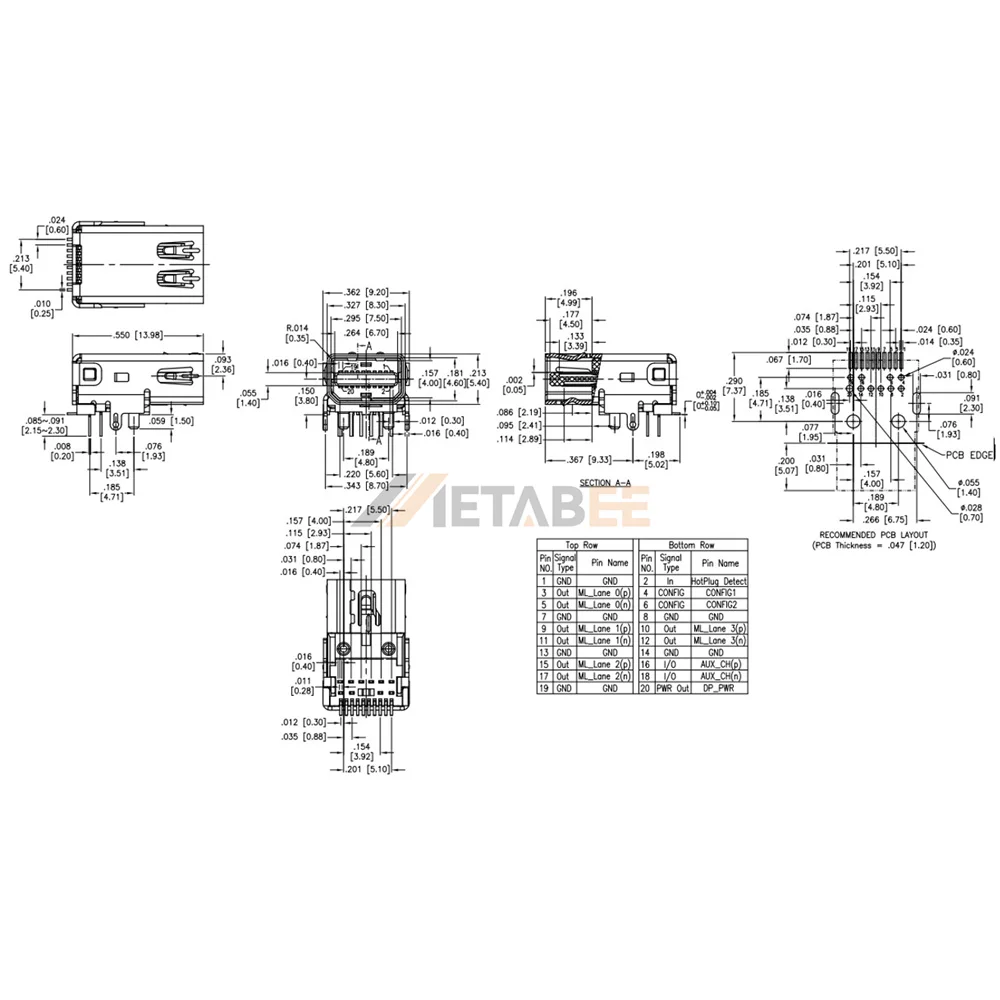

Display Mini DisplayPort Receptacle Connector, 20 Pin, DIP, Right Angle, 3.8mm Tail
Introduction:
This Display Mini DisplayPort receptacle connector features a 20-pin, right-angle profile designed for DIP through-hole PCB termination. Built with elongated 3.8mm solder tails, it allows complete pin protrusion through extra-thick multilayer circuit boards, forming heavy solder fillets that endure severe mechanical vibration. The nickel-plated brass shell provides rugged impact protection and blocks external electromagnetic interference. Constructed with UL 94V-0 high-temperature thermoplastic, it operates stably across -40°C to +85°C. In addition, phosphor bronze contacts with 30µ” gold plating over nickel prevent wear and corrosion, keeping contact resistance below 30 mohms at 0.5 A. This interface is widely used in rugged industrial PCs, broadcast video processing cards, multi-display avionics units, and embedded edge systems.
Key Features
- 3.8mm Solder Tails: Ensures secure through-hole termination on thick multilayer boards.
- 30µ” Gold Plating: Provides excellent contact wear resistance and long-term conductivity.
- Compact Mini DP Design: Saves horizontal board space in dense panel enclosures.
- Nickel-Plated Shell: Delivers robust mechanical strength and EMI shielding protection.
Main Specifications:
General Information:
| Product No.: | MDPC-S-RA-3 8-30 | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | 30 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
