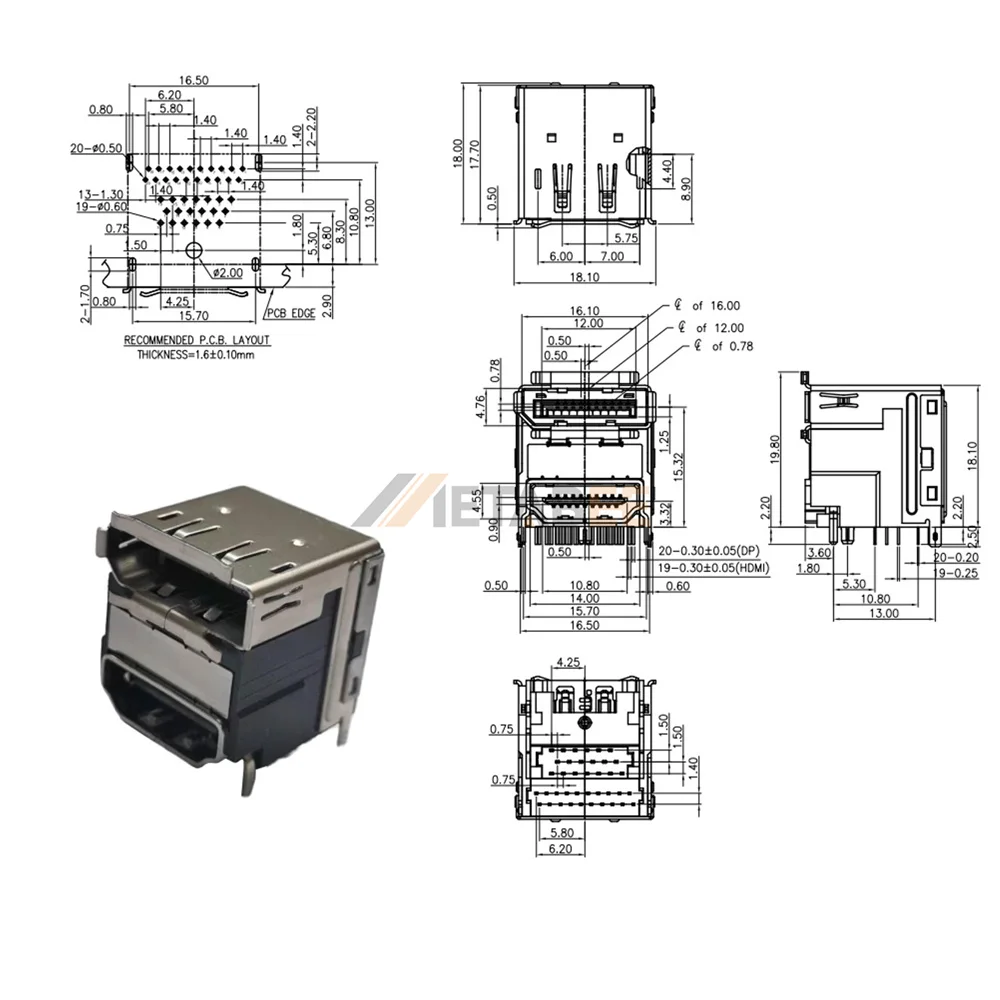

Stacked DisplayPort & HDMI Combo Connector, Dual Port, 20P+19P, Through Hole, R/A
Introduction:
This stacked DisplayPort & HDMI combo connector integrates a 20-pin DP port and a 19-pin HDMI receptacle into a vertical dual-tier layout. Designed for right-angle, through-hole PCB mounting, it significantly maximizes I/O panel density while maintaining strong board anchorage against heavy cable leverage. The outer housing combines high-temperature thermoplastic with a SUS304 stainless steel shell, delivering corrosion resistance and shielding against electromagnetic noise. In addition, gold-flashed copper alloy contacts keep contact resistance below 30 mohms at 40 VAC. This space-saving combo interface is widely used in motherboard rear I/O panels, industrial PCs, graphics output boards, and multi-display media servers.
Key Features
- Stacked 2-in-1 Design: Doubles video port density on rear I/O panels.
- Through-Hole Mounting: Resists mechanical strain from thick multi-display cables.
- SUS304 Stainless Shell: Provides corrosion resistance and effective EMI shielding.
- Gold-Flashed Contacts: Keeps contact resistance below 30 mohms for video.
Main Specifications:
General Information:
| Product No.: | DPD-DP-20S-HDMI19S-H | |
| Product Type: | DisplayPort / HDMI Stacked Combo | |
| Gender: | Receptacle | |
| Number of Positions: | DP: 20 Position HDMI: 19 Position |
|
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | DP: PBT HDMI: Hi-Temp Thermoplastic |
|
| Shell Material: | SUS304 Stainless Steel, Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -25°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
