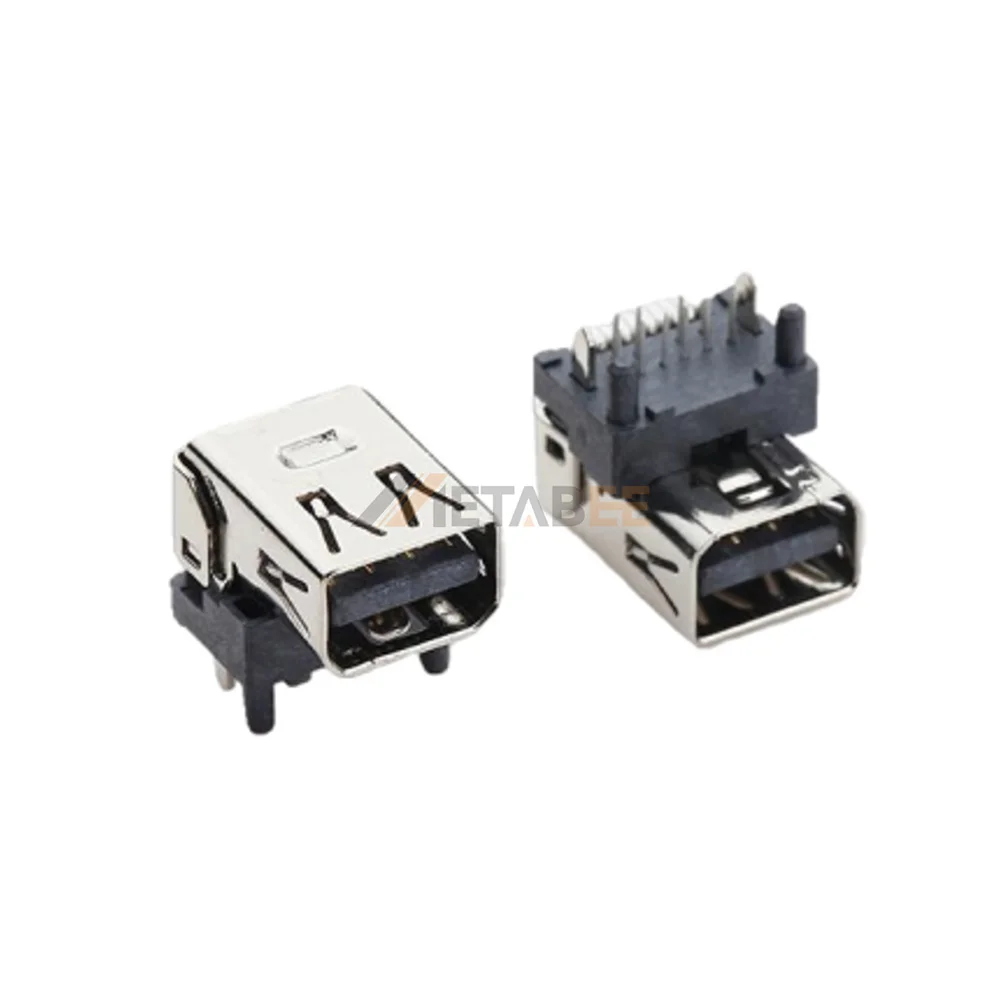

Mini DisplayPort Receptacle, 20 Pin, PCB Mount, Through Hole, Right Angle
Introduction:
This Mini DisplayPort receptacle provides a compact 20-pin interface designed for horizontal PCB integration. Its right-angle, through-hole termination anchors firmly into the circuit board, providing robust resistance against mechanical stress during frequent cable plugging. The nickel-plated stainless steel shell delivers durable physical protection while effectively shielding against electromagnetic interference. Built with UL 94V-0 high-temperature thermoplastic, the body withstands standard wave soldering temperatures without warping. In addition, copper alloy contacts with 15µ” gold plating maintain low contact resistance below 30 mohms at 40 VAC. Engineers commonly deploy this receptacle in compact graphics cards, industrial laptops, portable medical diagnostic units, and multi-display splitters.
Key Features
- Compact Mini DP Design: Delivers full 20-pin video performance in a small footprint.
- Through-Hole Mounting: Resists cable mating forces to protect PCB solder joints.
- 15µ” Gold Plating: Ensures contact wear resistance and reliable signal continuity.
- Stainless Steel Shell: Provides rugged mechanical shielding against EMI.
Main Specifications:
General Information:
| Product No.: | MDPC-S-RA | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Stainless Steel, Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | 15 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | N/A | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
