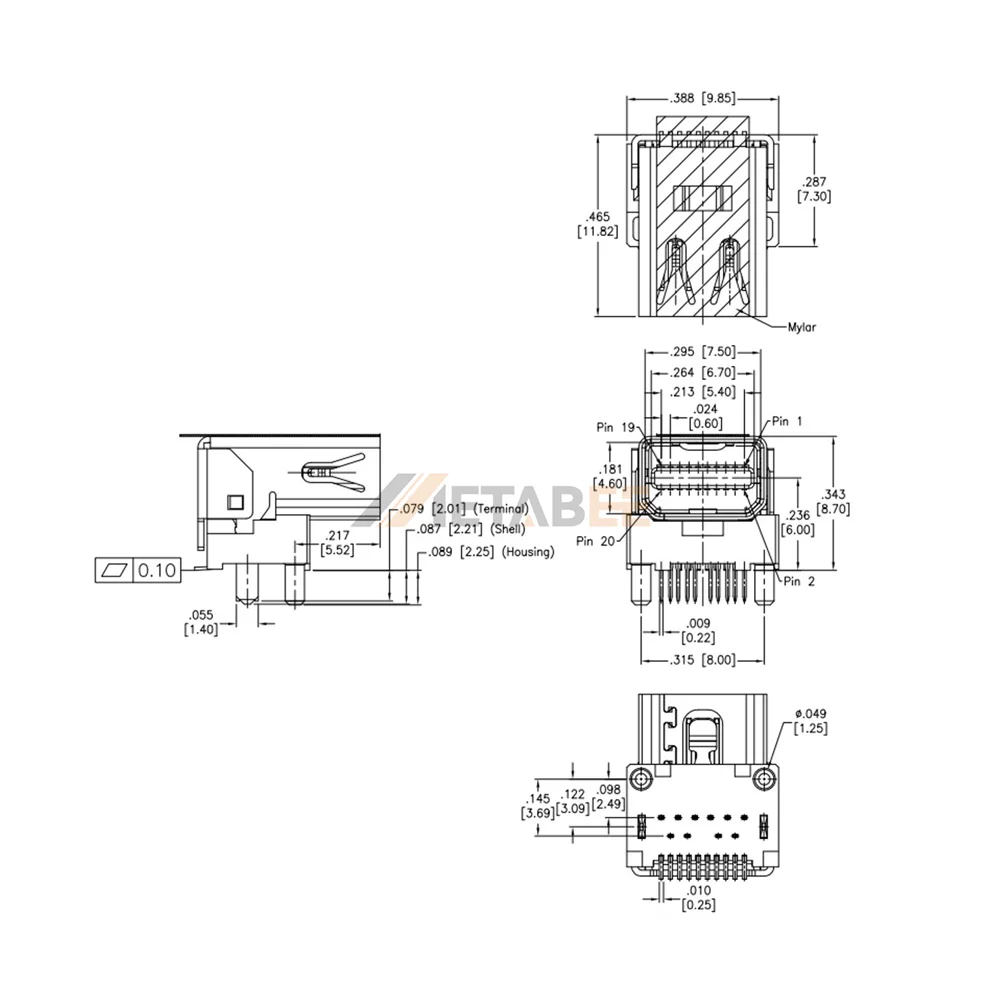

Display Mini DisplayPort Receptacle, 20 Pin, PCB-Through Hole, R/A, Mylar Tape
Introduction:
This Display Mini DisplayPort receptacle provides a 20-pin, right-angle interface designed for through-hole circuit board mounting. Packaged in tape and reel with high-temperature Mylar tape over the shell, it enables automated vacuum nozzle pick-and-place operation on high-speed SMT assembly lines. Its nickel-plated stainless steel shell delivers mechanical impact resistance and shields internal channels against electromagnetic interference. The UL 94V-0 thermoplastic housing withstands soldering heat profiles without deformation. In addition, copper alloy contacts with 15µ” gold plating keep contact resistance below 30 mohms at 40 VAC. Common applications include multi-display graphics cards, compact industrial PCs, broadcast video converters, and medical diagnostic monitors.
Key Features
- Mylar Tape Coverage: Provides flat surface for automated vacuum nozzle pick-up.
- Tape & Reel Packaging: Accelerates high-speed automated SMD feeder production.
- 15µ” Gold Plating: Ensures wear resistance and reliable signal continuity.
- Stainless Steel Shell: Delivers rugged mechanical strength and EMI shielding.
Main Specifications:
General Information:
| Product No.: | MDPC-S-RA-KT-T/R | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tape & Reel / TR |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Stainless Steel, Nickel Plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | 15 µ” (0.38 µm) Gold over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
