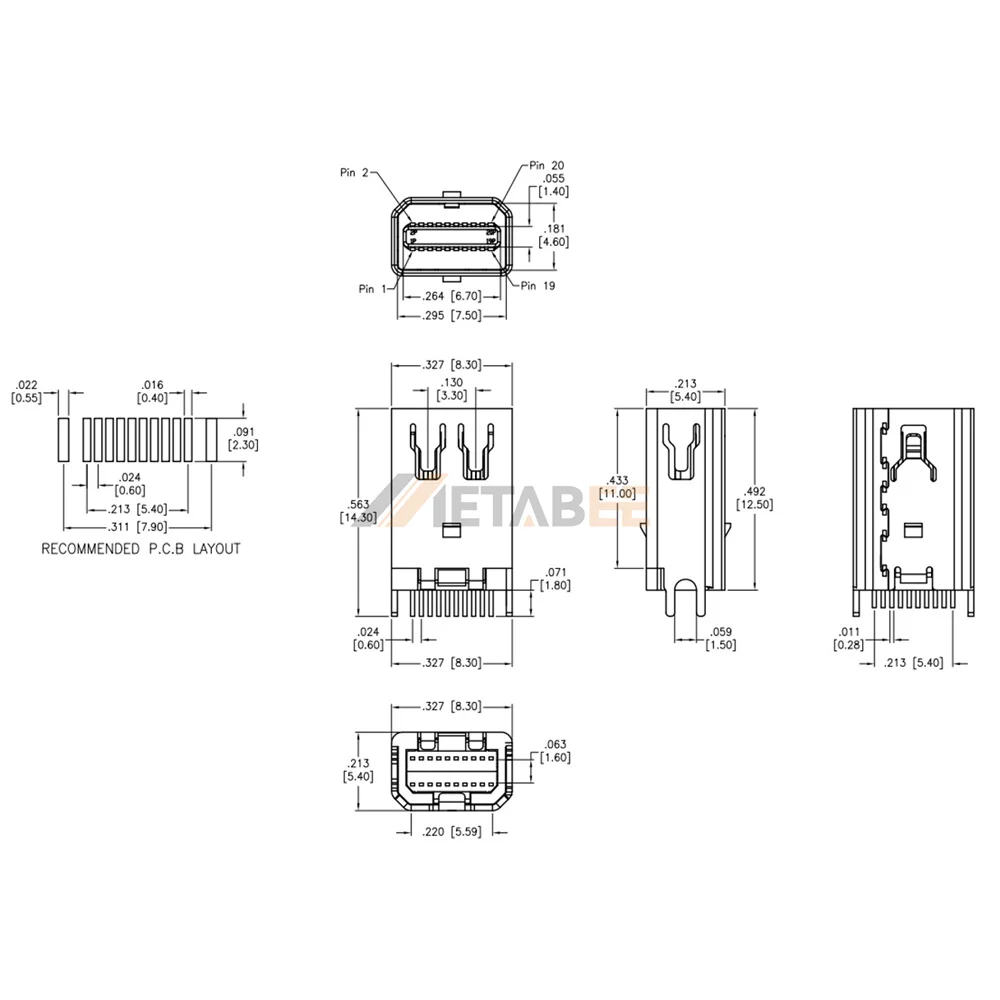

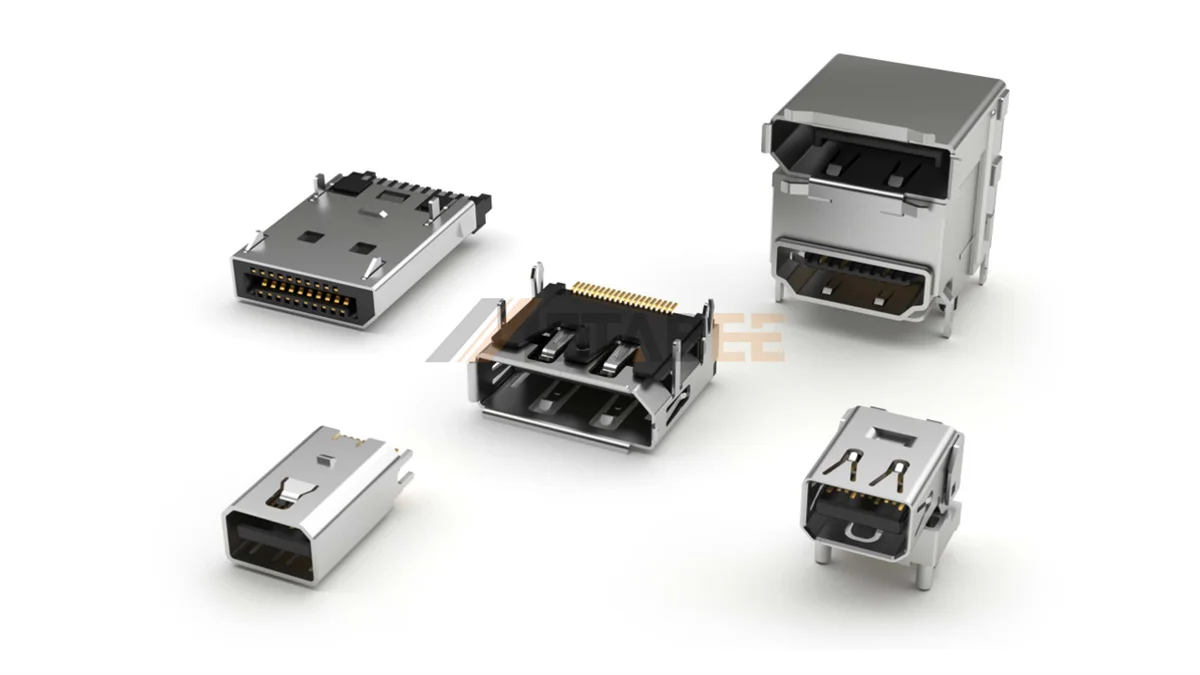

Straddle-Mount DisplayPort Mini DP Receptacle, 20 Pin, PCB-Edge Mount
Introduction:
This straddle-mount DisplayPort Mini DP receptacle provides a 20-pin interface designed for PCB-edge mount integration. By straddling the edge of the circuit board, it creates an ultra-low-profile centerline alignment that conserves critical vertical height in slim hardware enclosures. Its nickel-plated brass shell ensures robust mechanical protection while shielding high-speed video lines against electromagnetic interference. Built with UL 94V-0 high-temperature thermoplastic, the body maintains dimensional stability across -40°C to +85°C. In addition, copper alloy contacts with gold flash over nickel underplate keep contact resistance below 30 mohms at 0.5 A. Common applications include ultra-thin industrial tablets, compact PCIe add-in cards, drone video transmission modules, and portable field monitors.
Key Features
- Straddle-Mount Edge Design: Minimizes vertical clearance on ultra-thin circuit boards.
- Gold Flash Contacts: Maintains under 30 mohms resistance for video continuity.
- Nickel-Plated Brass Shell: Delivers structural rigidity and EMI shielding protection.
- UL 94V-0 Thermoplastic: Ensures reliable operation from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | MDPC-S-VT-PCB | |
| Product Type: | Mini DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | N/A | |
| Termination Style: | N/A | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | None | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | Standard Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold flash over Nickel underplate |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |

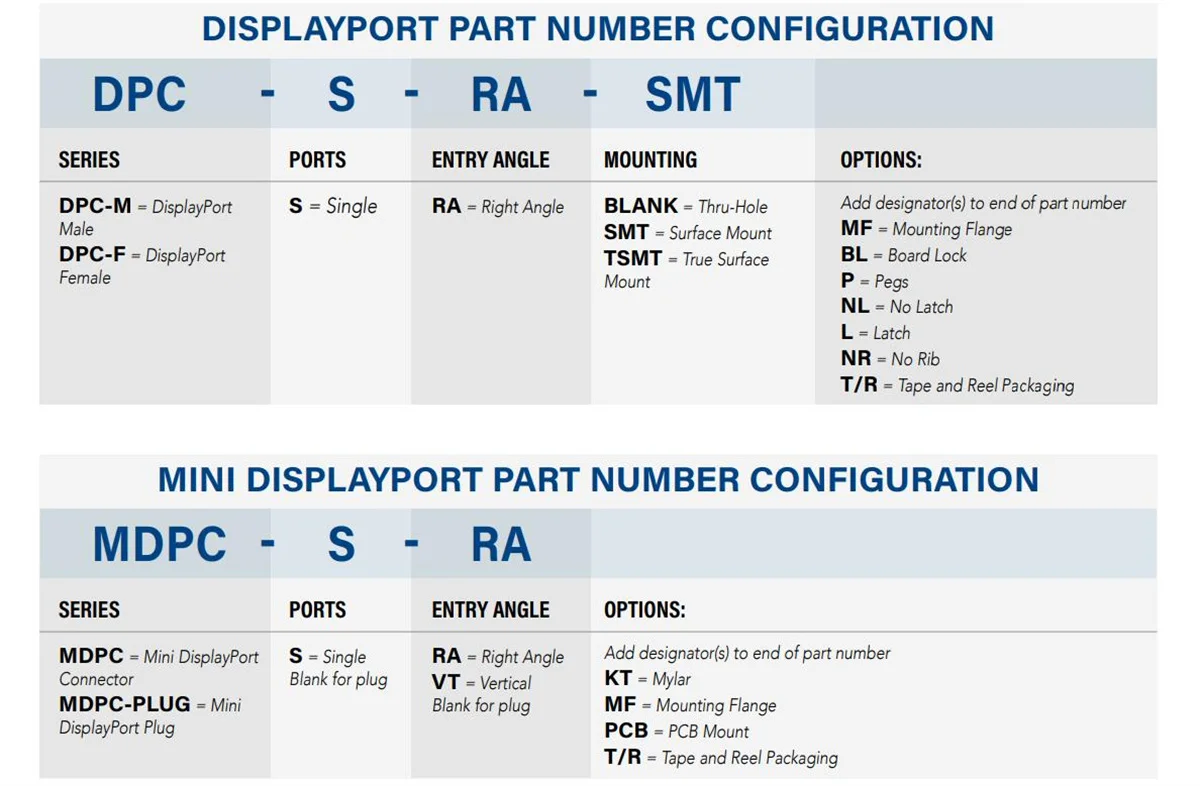

DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
