Shielded 8P8C RJ45 Connector Modular Socket, 1 Port, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a high-performance shielded 8P8C RJ45 connector modular socket designed for stable through hole mounting on networking circuit boards. It features a rugged metallic shell made of brass or copper alloy to provide full EMI shielding and protect signal integrity from interference. The housing utilizes glass-reinforced Nylon46 or hi-temp thermoplastic to survive intense industrial wave soldering without warping. Premium gold-plated contacts ensure a low-resistance path and a consistent 1.5A current rating across a wide industrial temperature range of -40°C to +85°C. With a space-saving Tab-Up right angle configuration, this unit maintains high insulation resistance up to 1000MΩ. Technicians utilize this reliable socket for telecommunication systems and industrial control gear requiring durable, shielded data links.
Key Features
- Full EMI Shielding: Metallic shell blocks external signal interference effectively.
- Hi-Temp Glass Reinforced: Survives intense heat during industrial wave soldering.
- Gold Plated Contacts: Ensures high conductivity and lasting oxidation resistance.
- Tab-Up Configuration: Optimizes vertical space for specialized PCB layouts.
- Wide Operating Temperature: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88AAUX1-FSM-HT-TR, MTJ-88AAUX1-FSM-NY46, MTJ-88AAUX1-FSM-PG-NY46 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC/125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min/1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC RMS for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic, PA46, Nylon46 | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy, Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated/Copper Alloy |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

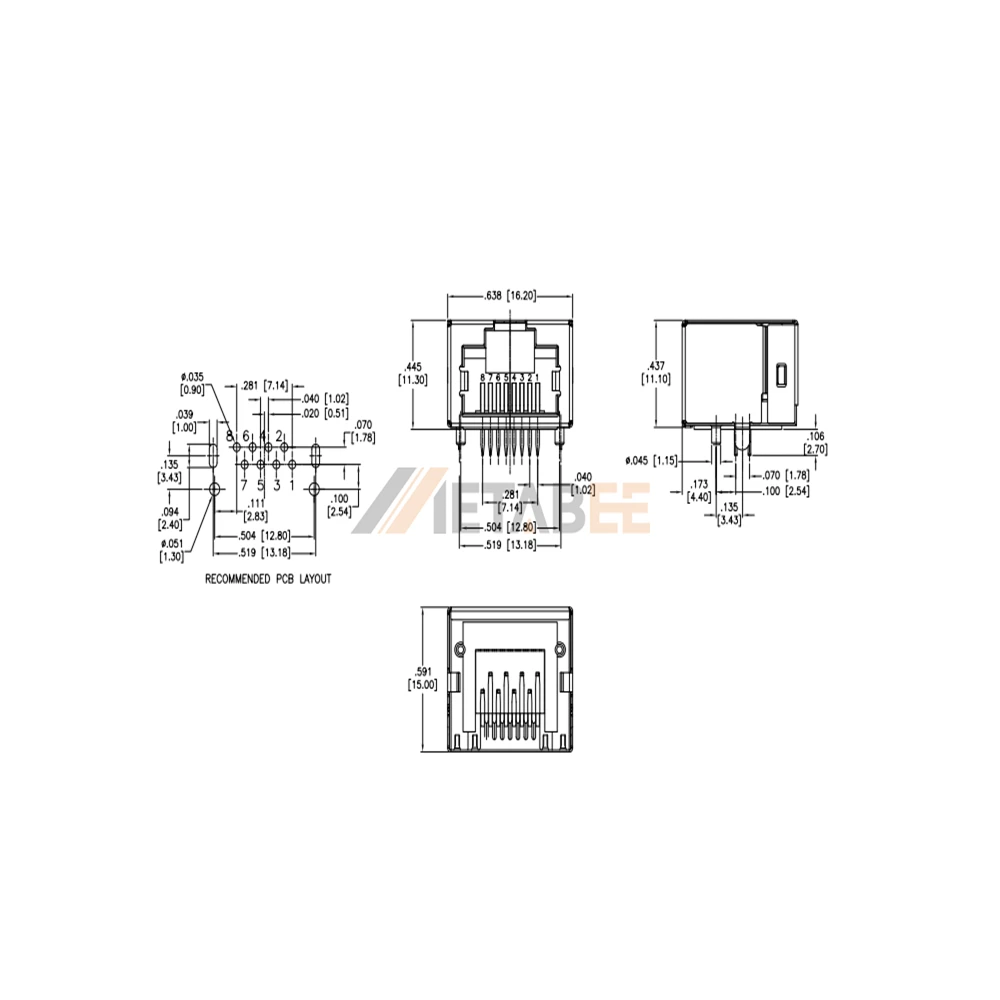

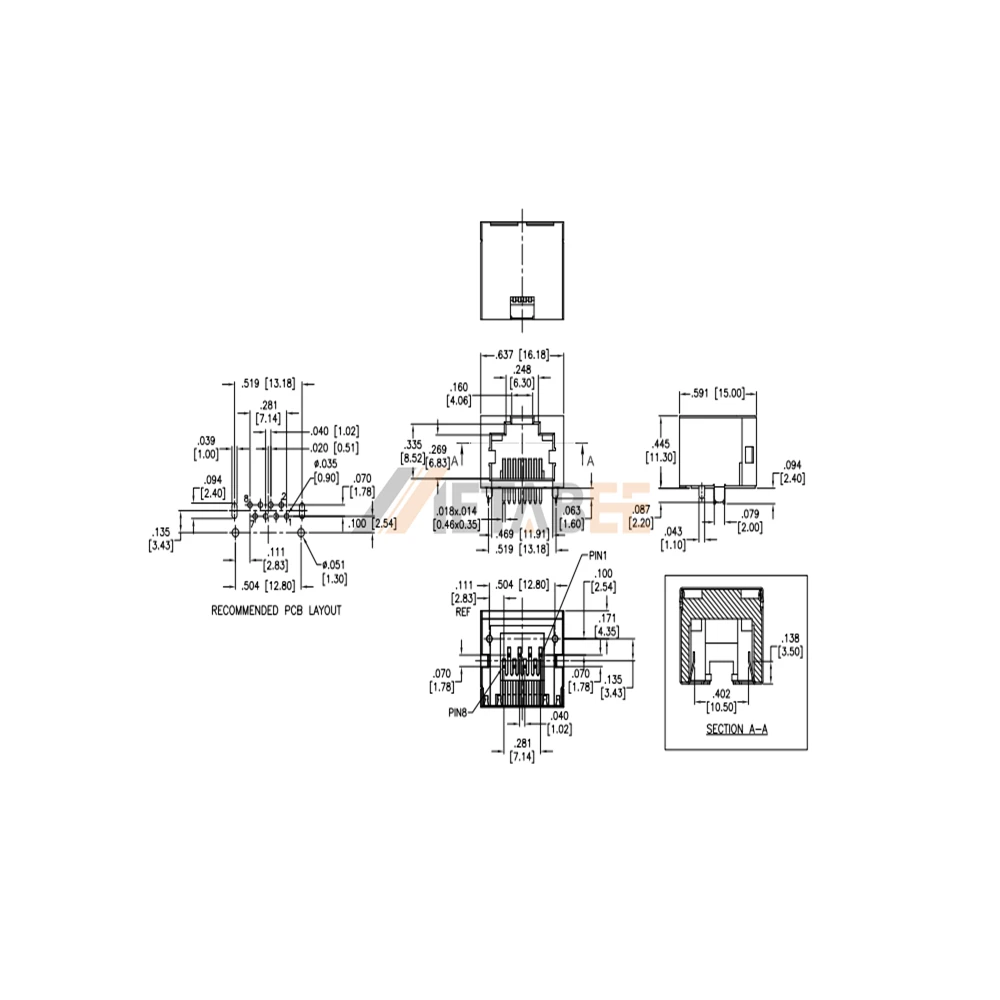

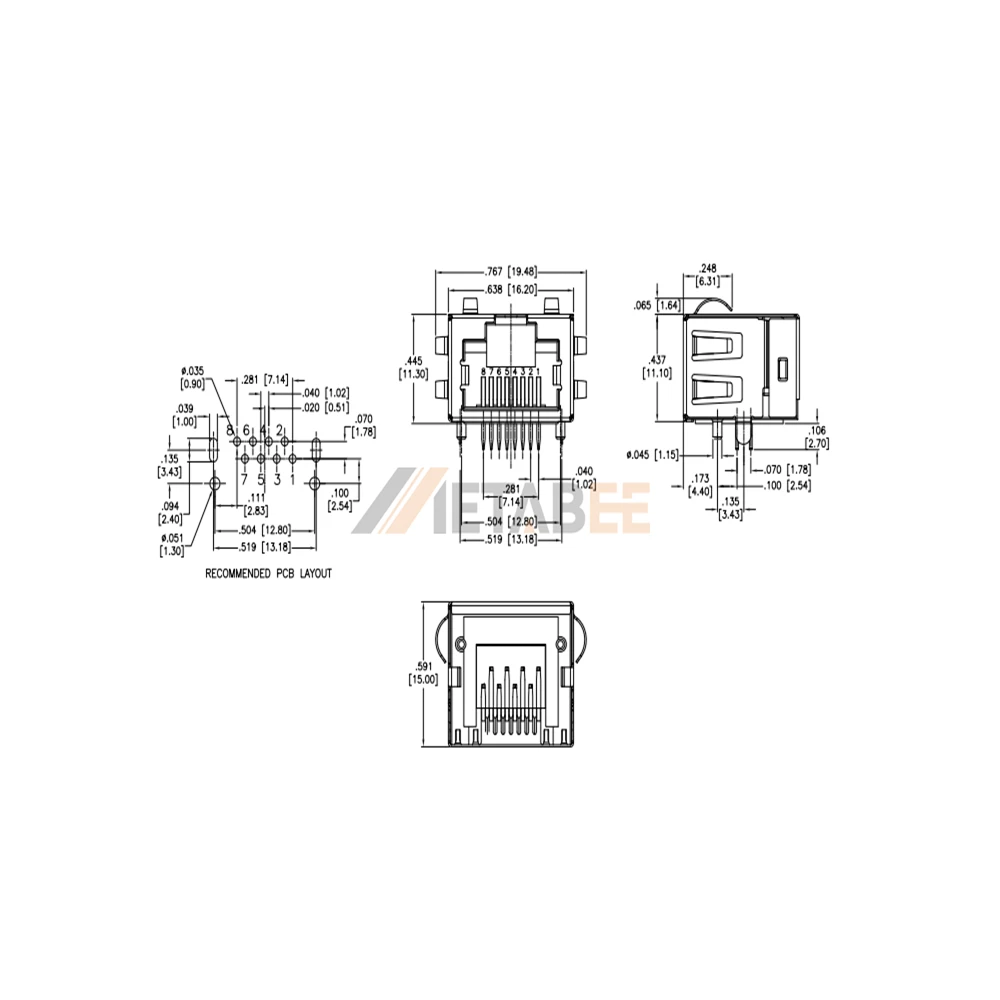

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
