Right Angle RJ11 Phone Jack Connector, 6P2C, 1 Port, Unshielded, Through Hole, Tab-Up, No LED
Introduction:
This is a single port Right Angle RJ11 Phone Jack Connector designed for stable through hole mounting on printed circuit boards. It utilize a durable black PBT housing that ensures reliable performance and maintains a high insulation resistance of 1000 mohms. The 6P2C interface features Phosphor Bronze contacts with premium Gold plating to support a consistent 1.5A current rating for voice-grade signals. By using a Tab-Up right angle configuration, this unshielded component effectively saves vertical space while providing a secure mechanical bond to the PCB. Technicians utilize this modular socket for residential landlines and commercial telecommunication gear requiring dependable 2-pin connectivity.
Key Features
- 6P2C RJ11 Interface: Supports standard modular connectivity for voice systems.
- Right Angle Layout: Optimizes vertical clearance for specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Durable PBT Housing: Maintains structural integrity across standard temperature ranges.
- High Current Support: Handles 1.5A for efficient signal and power delivery.
Main Specifications:
General Information:
| Product No.: | MTJ-62QX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | RJ11 Jack | |
| Number of Positions/Contacts: | 6P2C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 0℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

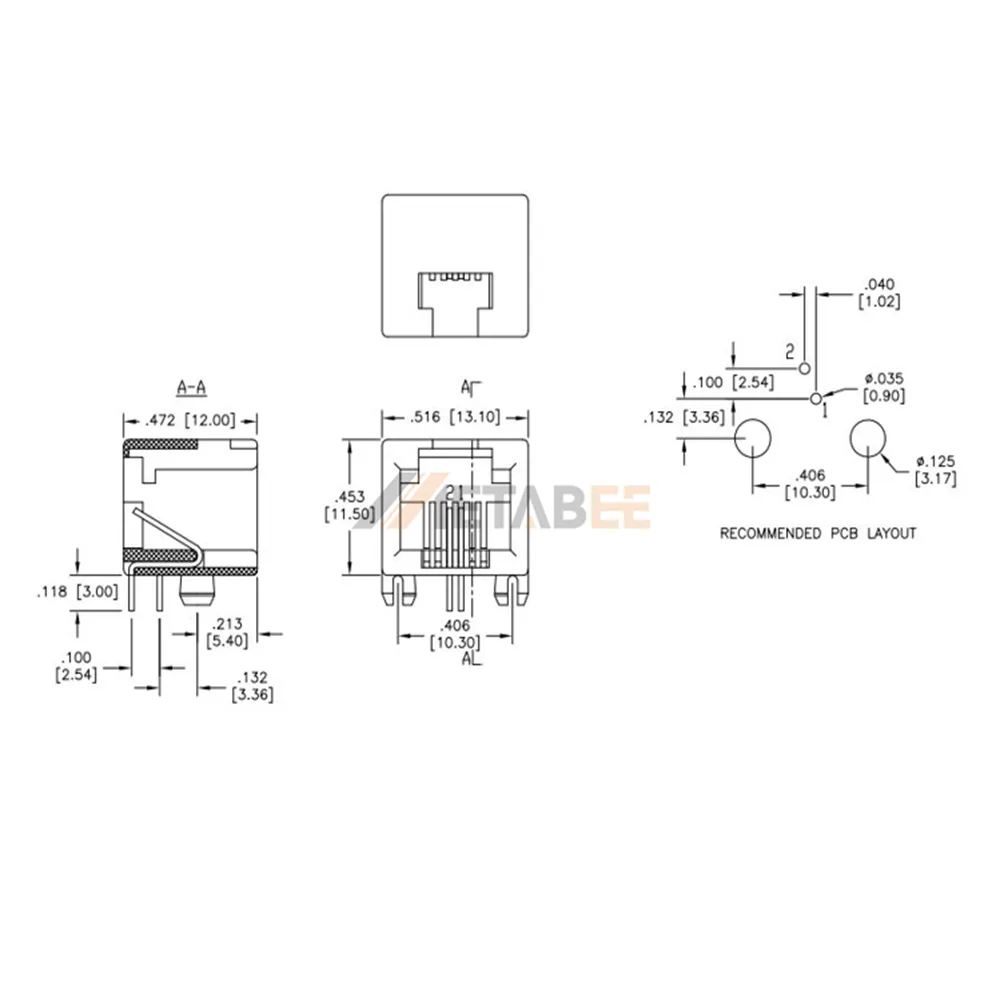

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
