Surface Mount Vertical RJ45 Network Jack, 8P8C, 1 Port, Unshielded, Tab-Up, No LED
Introduction:
This is a single port vertical surface mount rj45 jack designed for stable top-entry attachment to high-density printed circuit boards. It utilizes a PA9T hi-temp thermoplastic housing that is specifically engineered to survive intense reflow soldering environments without warping. The Phosphor Bronze contacts are finished with Gold over Nickel to ensure high conductivity and maintain signal integrity across the 8P8C interface. Utilizing a Tab-Up configuration, this unshielded component effectively saves PCB surface area while providing a high insulation resistance of 500MΩ for electrical safety. Technicians utilize this reliable modular interface for compact telecommunication hardware and industrial automation systems needing secure vertical SMT connectivity.
Key Features
- Vertical SMT Design: Optimizes top-entry connectivity for compact board layouts.
- Hi-Temp PA9T Housing: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- 8P8C Modular Interface: Provides standard unshielded links for network systems.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88VX1-SMT, MTJ-88VX1-SMT-PP-TR | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max/40mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute (C-C), 1500 VDC or AC Peak for 1 minute (C-Shield) |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic/PA9T | |
| Insulator Color: | Black/White | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

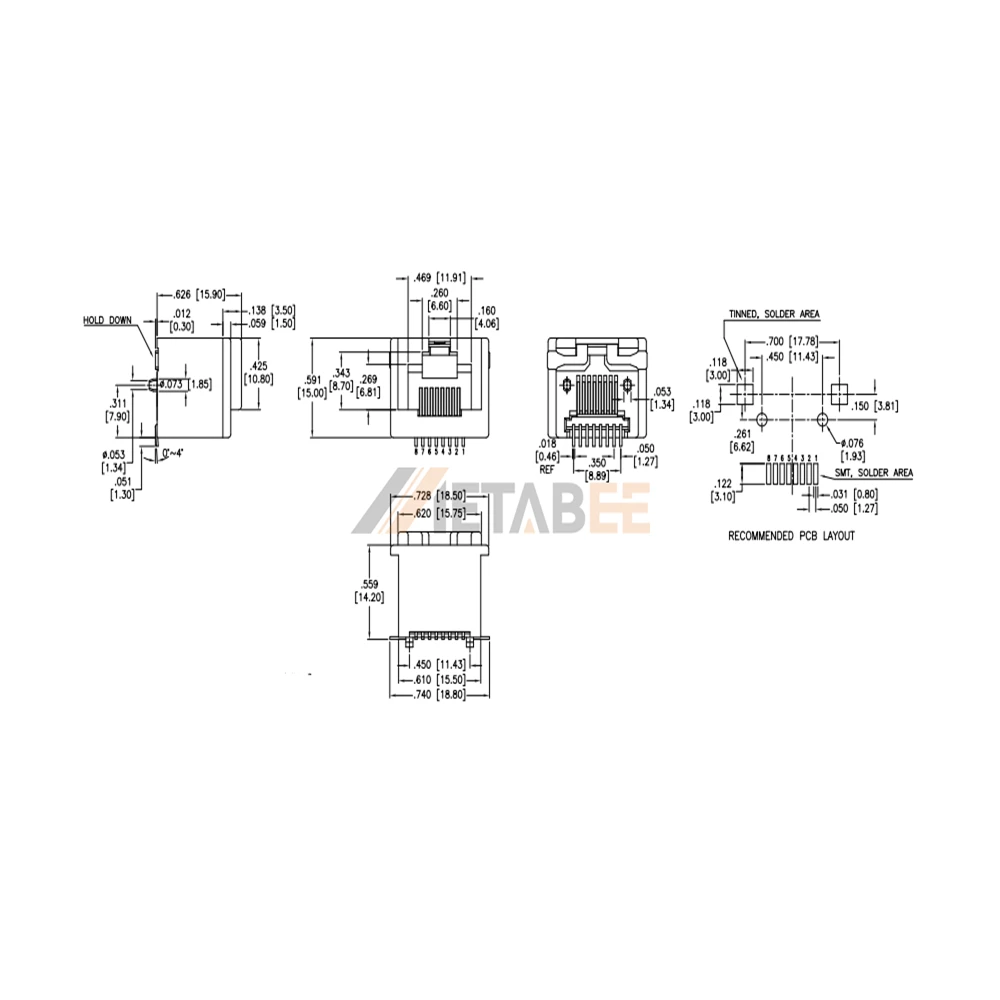

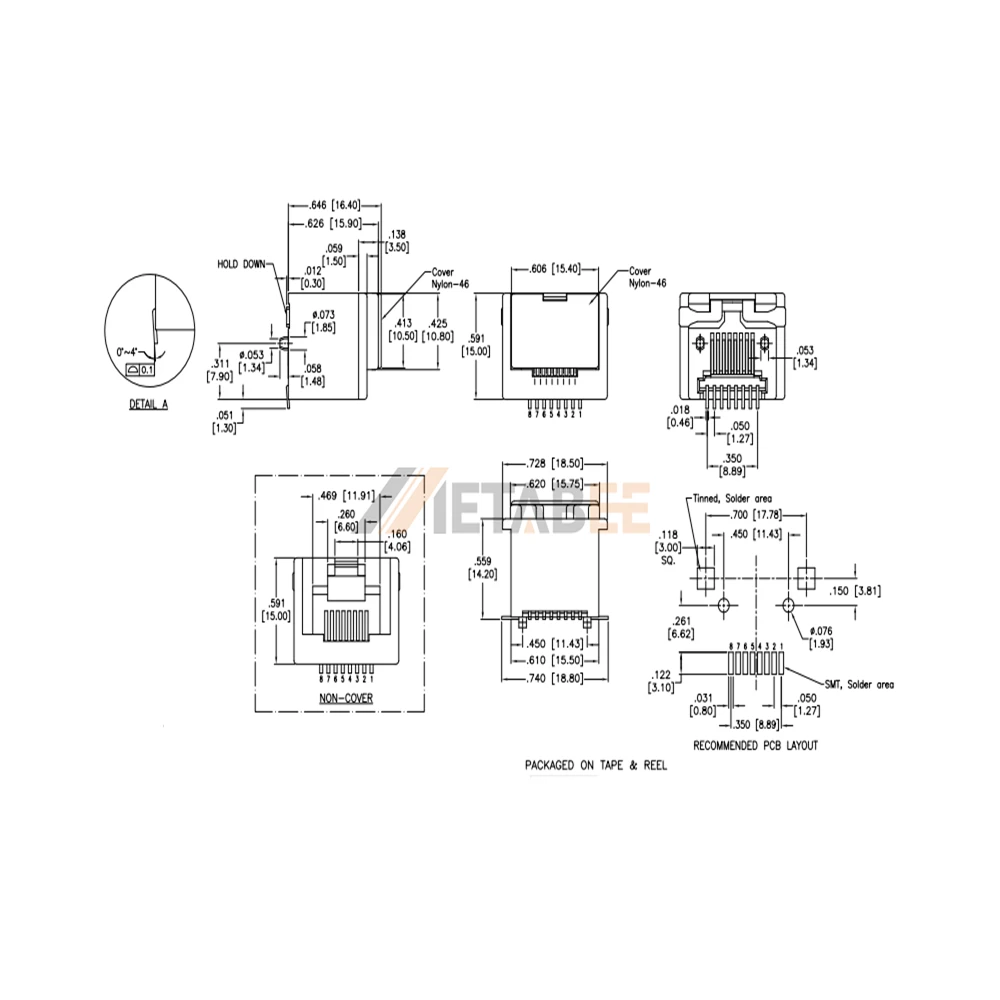

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
