Modular RJ45 Jack 8P8C Socket, Single Port, Shielded, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is a single port modular RJ45 jack 8P8C socket designed for stable right angle through hole mounting on printed circuit boards. It features a robust nickel plated brass shell that provides a full shield against electromagnetic interference to safeguard signal integrity. The durable black PBT housing ensures high thermal stability and maintains a superior insulation resistance of 1000MΩ Min. Phosphor Bronze contacts include a premium Gold over Nickel finish to support a consistent 1.5A current rating for stable data transmission. Utilizing a Tab-Down configuration, this component effectively optimizes board surface area while handling peak dielectric voltages reliably. Technicians utilize this modular interface for telecommunication devices and networking hardware requiring secure shielded 8P8C connectivity.
Key Features
- Full EMI Shielding: Metallic brass shell blocks external signal interference effectively.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
- Tab-Down Configuration: Optimizes mechanical fit for specialized board layouts.
- Durable PBT Housing: Performs reliably between -40°C and +85°C environments.
Main Specifications:
General Information:
| Product No.: | MTJ-88WX1-FSD | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute (C-C), 1500 VDC or AC Peak for 1 minute (C-S) |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

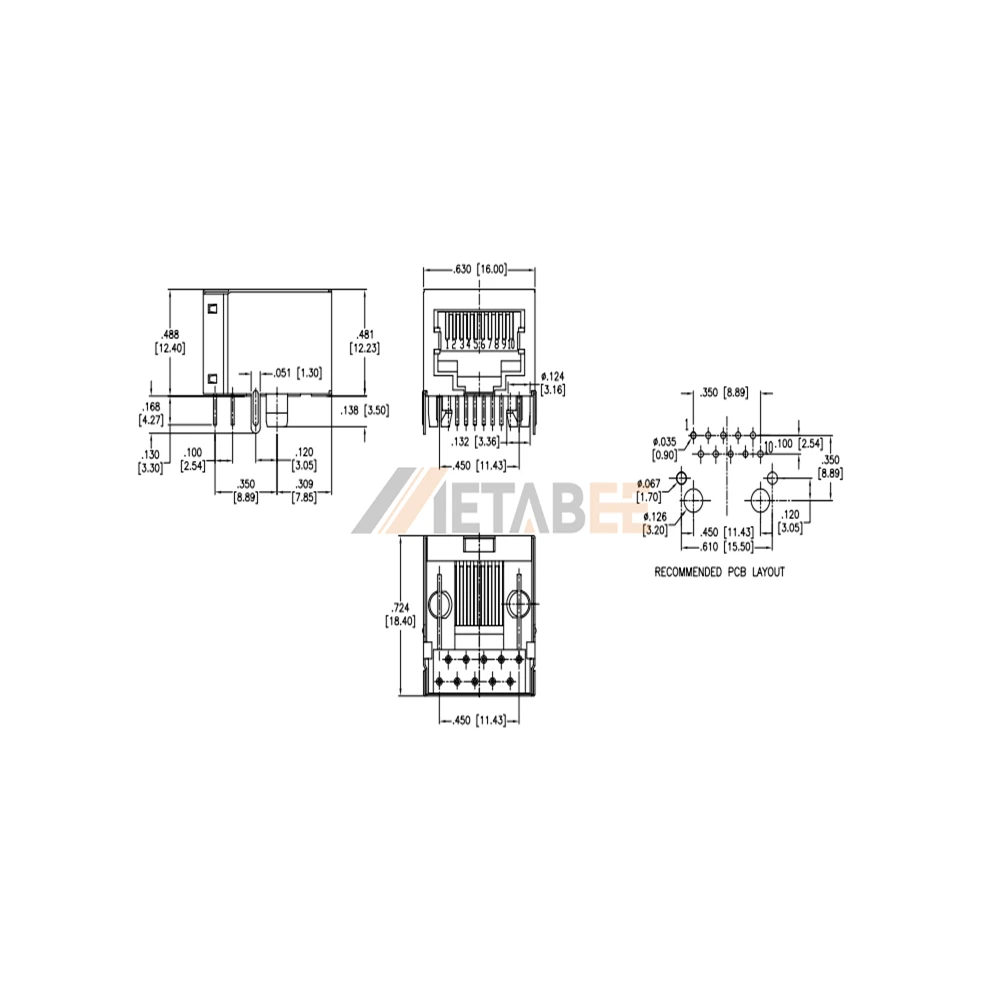

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
