RJ45 Ethernet Surface Mount Jack Female Connector, 1 Port, Unshielded, Tab-Down, Right Angle, No LED
Introduction:
This is an unshielded single port RJ45 ethernet surface mount jack designed for efficient automated SMT attachment to printed circuit boards. It is constructed with a hi-temp thermoplastic housing that survive intense reflow soldering processes without any structural deformation. The Phosphor Bronze contacts feature a premium Gold over Nickel finish to ensure high conductivity and a consistent 1.5A current rating. Utilizing a Tab-Down right angle configuration, the component effectively optimizes board surface area while providing a minimum insulation resistance of 500MΩ. Technicians utilize this reliable modular interface for telecommunication gear and networking hardware requiring secure surface mount connectivity across a range of -40°C to +85°C.
Key Features
- SMT Surface Mount: Facilitates efficient automated high-speed PCB assembly.
- Hi-Temp Thermoplastic: Housing survives intense industrial reflow soldering heat.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Tab-Down Layout: Optimizes vertical space for specialized board designs.
- High Insulation Resistance: Maintains 500MΩ Min for enhanced electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88YX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Phosphor Bronze |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

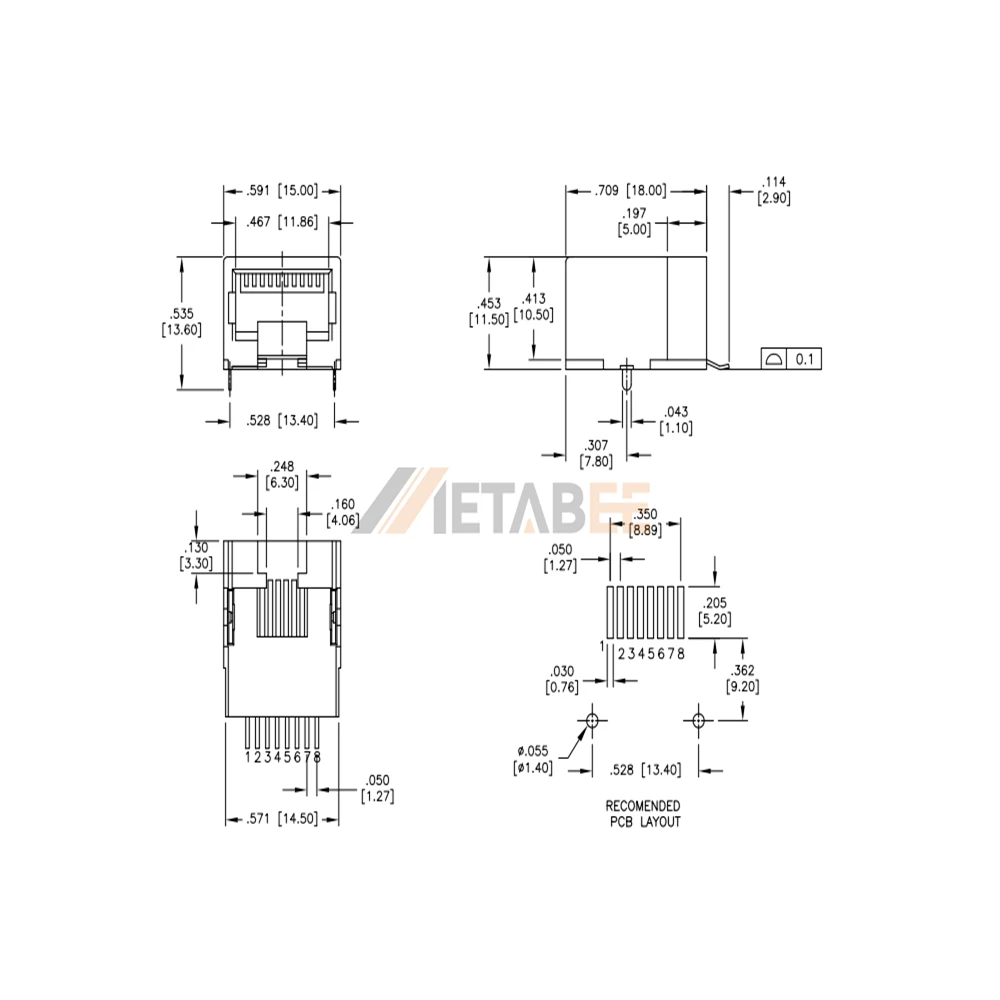

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
