SMT Surface Mount RJ45 Female Connector, 8P8C, 1 Port, Shielded, Tab-Down, R/A, No LED
Introduction:
This is a single port 8P8C SMT surface mount RJ45 female connector designed for space-saving attachment to networking circuit boards. It features a copper alloy shell with nickel plating that provides a full shield against EMI to maintain signal integrity across all data paths. The hi-temp thermoplastic housing is specifically engineered to survive intense reflow soldering processes without any physical warping. Premium Phosphor Bronze contacts include a Gold over Nickel finish to support a consistent 1.5A current rating. Utilizing a Tab-Down right angle configuration, the component effectively handles extreme operating temperatures from -40°C up to +125°C. Technicians utilize this reliable interface for telecommunication devices and industrial networking hardware requiring durable SMT connectivity.
Key Features
- Surface Mount Design: Optimizes automated high-speed PCB assembly processes.
- Full EMI Shielding: Metallic shell blocks interference for signal integrity.
- Industrial Temperature Range: Performs reliably from -40°C to +125°C.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88WX1-FS-TSMT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

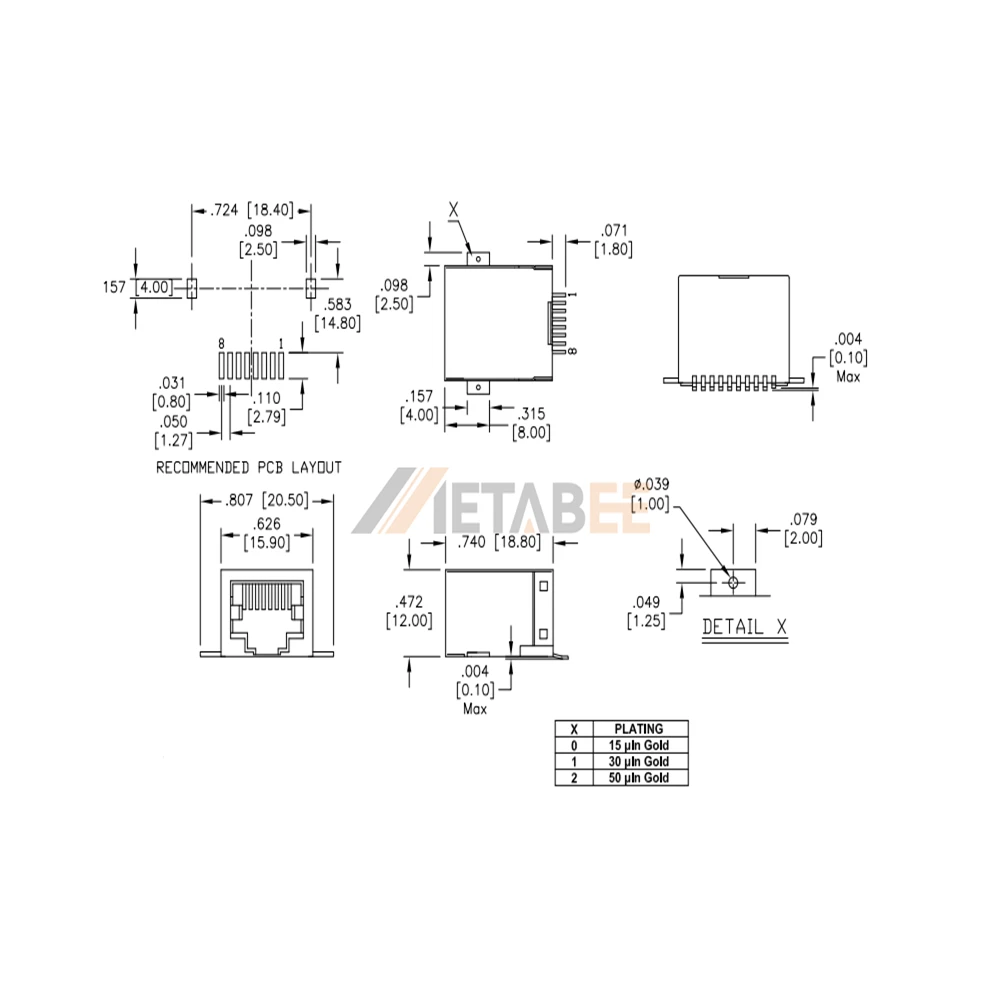

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
