45 Degree Angle RJ45 Connector Modular Jack, 8P8C, 1 Port, Shielded, Through Hole, Tab-Up, No LED
Introduction:
This is a single port 45 degree angle RJ45 connector designed for stable through hole mounting on printed circuit boards. It features a robust nickel-plated brass shell that provides a full shield against electromagnetic interference to safeguard signal integrity. The durable PBT housing is available in black or white and maintains a high insulation resistance of 1000MΩ. Premium Phosphor Bronze contacts include a Gold over Nickel finish to support a consistent 1.5A current rating. Utilizing a unique angled orientation and Tab-Up configuration, this component optimizes cable entry in tight enclosure spaces. Technicians utilize this modular interface for networking equipment and industrial automation gear requiring specialized connectivity.
Key Features
- 45 Degree Orientation: Optimizes cable access for space-constrained enclosure designs.
- Full EMI Shielding: Metallic brass shell blocks external signal interference.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ for enhanced electrical safety.
- Durable PBT Housing: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88V45X1-FS, MTJ-88V45X1-FS-WT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute (C-C), 1500 VDC or AC Peak for 1 minute (C-Shield) |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black/White | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

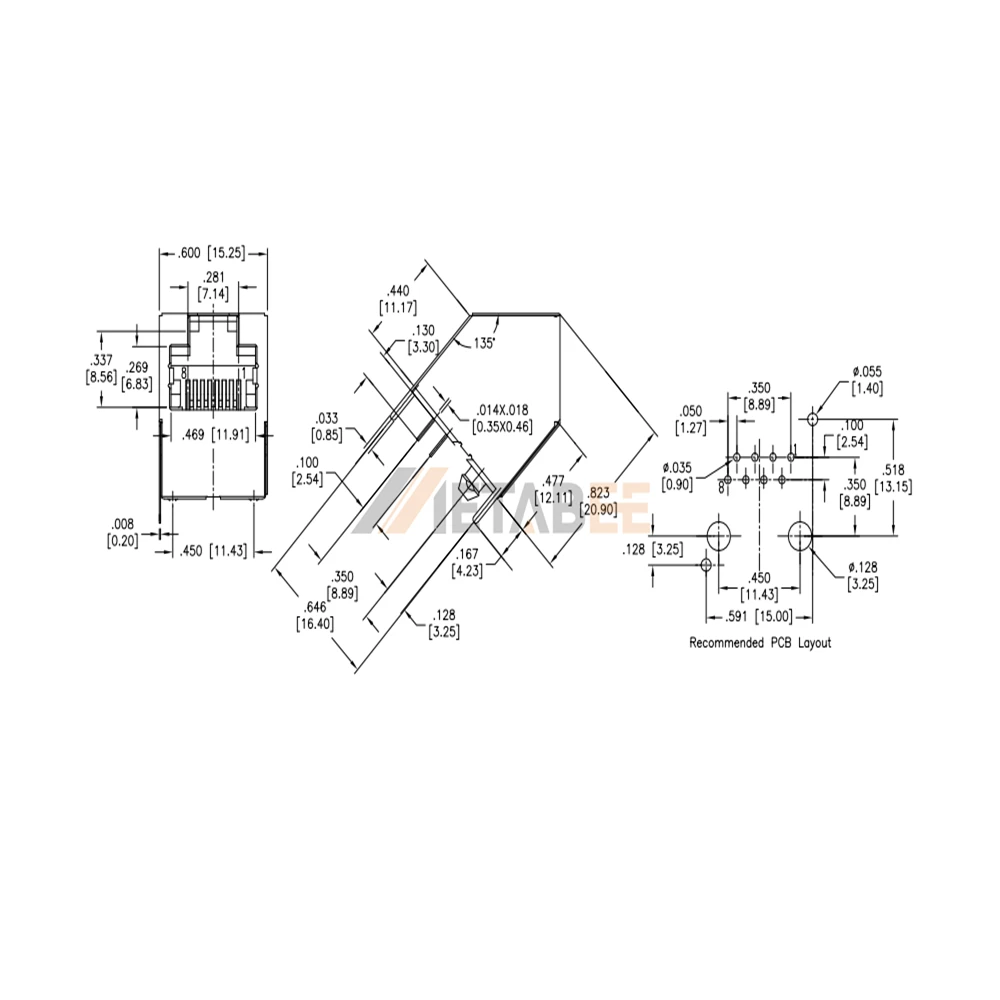

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
