Vertical Surface Mount RJ45 Jack Female Connector, 8P8C, 1 Port, Unshielded, Tab-Up, No LED
Introduction:
This is a single port vertical rj45 jack female connector designed for stable top-entry surface mount attachment to printed circuit boards. It is built with a black hi-temp Nylon housing that survives intense industrial reflow soldering processes without any warping. The Gold over Nickel plated Phosphor Bronze contacts ensure superior conductivity and a standard 1.5A current rating for consistent signal integrity. Utilizing a Tab-Up orientation, this unshielded component effectively saves PCB surface area across an extensive temperature range of -40°C up to +125°C. Technicians utilize this modular interface for compact networking hardware and industrial automation gear requiring secure top-entry SMT connectivity.
Key Features
- SMT Surface Mount: Facilitates efficient and automated high-speed PCB assembly.
- Vertical Mounting Design: Optimizes top-entry connectivity for compact board layouts.
- Industrial Temperature Range: Performs reliably from -40°C up to +125°C.
- Hi-Temp Nylon Housing: Survives intense heat during industrial reflow soldering.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88KX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp Nylon | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +125℃ | |
| Flammability Rating: | UL 94 V-0 |

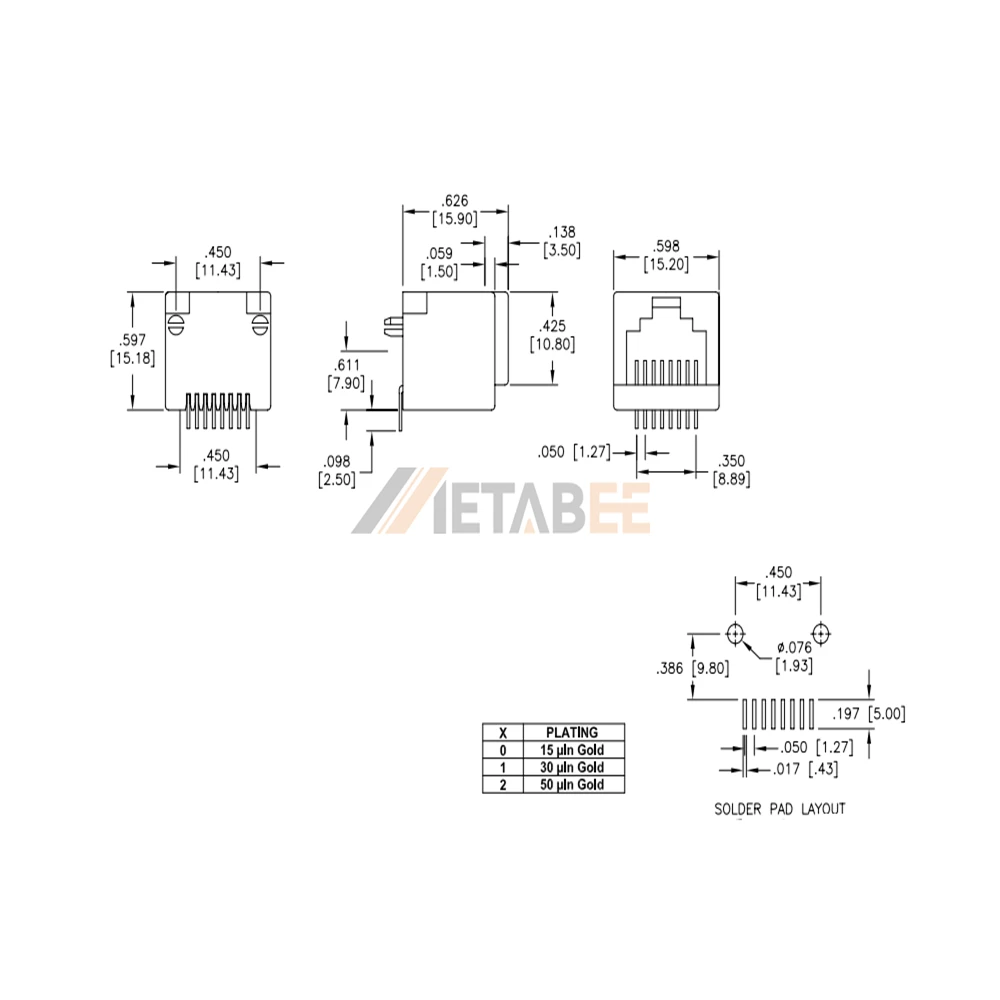

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
