Right Angle RJ45 Female Connector Socket with LEDs, 8P8C, 1 Port, Unshielded, Tab-Up, Through Hole
Introduction:
This is a single port right angle RJ45 female connector socket designed for durable through hole mounting on printed circuit boards. It is constructed with glass-reinforced PBT to ensure high structural integrity and heat resistance during industrial soldering. The Phosphor Bronze contacts feature Gold over Nickel plating, providing high conductivity and a 1.5A current rating. Utilizing a Tab-Up unshielded design, this unit effectively saves board space while offering various LED color options for instant status diagnostics. It maintains a superior insulation resistance of 1000MΩ Min across an operating temperature range of -40°C to +85°C. Technicians utilize this reliable modular interface for standard networking hardware and telecommunication systems requiring visible link activity.
Key Features
- Integrated Diagnostic LEDs: Displays network activity status through various color options.
- Glass-Reinforced PBT: High-strength housing ensures durability during industrial assembly.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-LD, MTJ-88ARX1-LG, MTJ-88ARX1-LV | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Multiple combinations |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute (Contacts), 1500 VAC for 1 minute (Shell) |
Materials and Plating:
| Housing Material: | PBT, glass reinforced | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

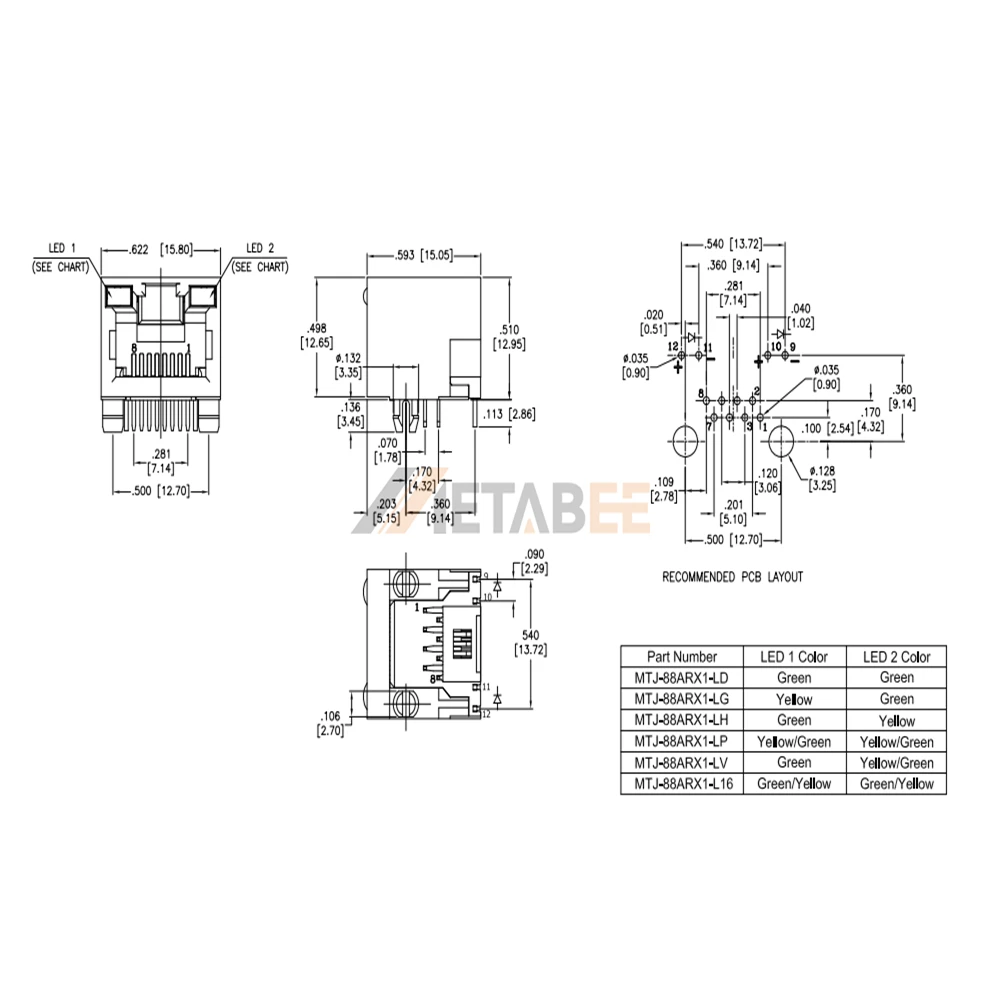

Engineering Options of RJ45 Modular Jack
