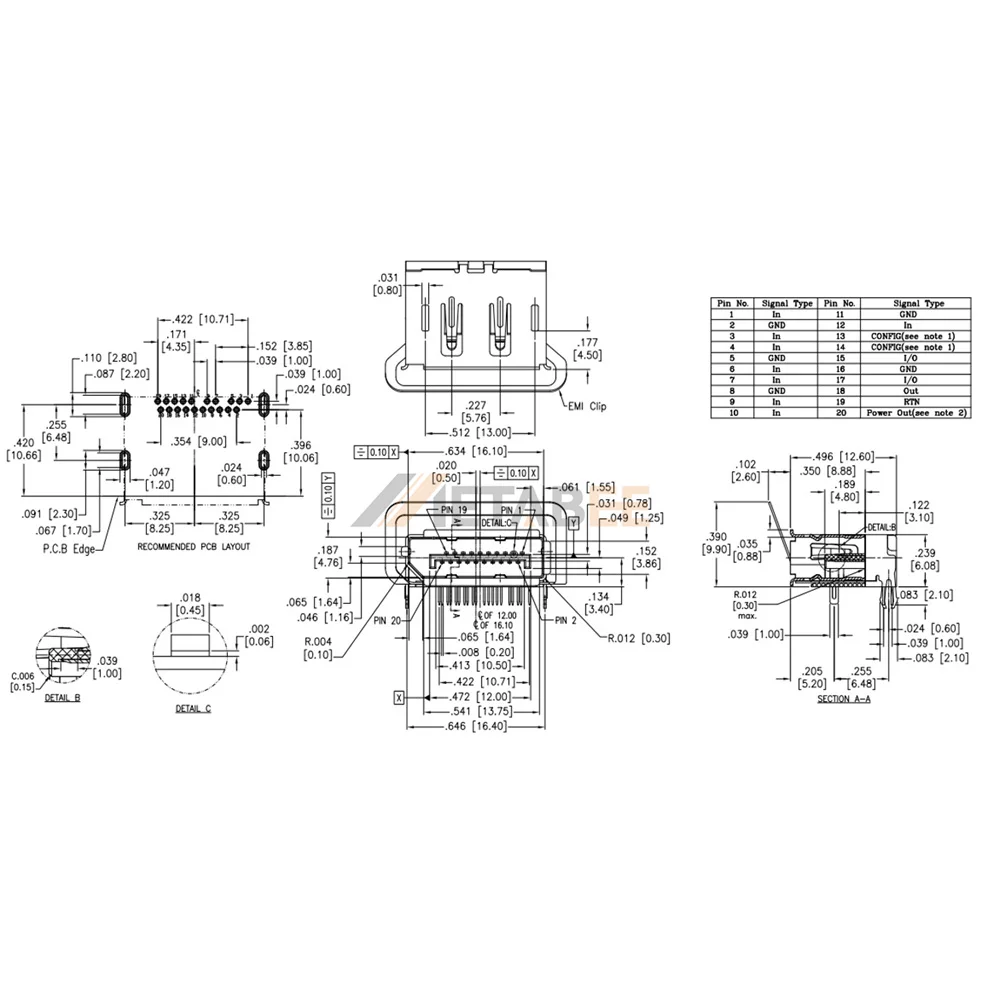

DisplayPort PCB Connector, Receptacle, 20 Pin, Through Hole, R/A, Board Locks, EMI Shield
Introduction:
This right angle DisplayPort PCB connector provides secure through hole mounting for high-definition video interfaces. Built with a 20 pin female receptacle, the unit incorporates integrated board locks to maintain mechanical stability on the PCB. The nickel-plated brass shell delivers essential EMI shielding against electromagnetic interference during data transmission. Additionally, brass contacts with 15µ” gold plating over nickel underplate ensure low contact resistance and long-term signal integrity under 0.5 A per contact operation.
Key Features
- EMI Shielding: Metal shell blocks unwanted electromagnetic interference effectively.
- 15µ” Gold Plating: Enhances electrical conductivity and prevents contact oxidation.
- Integrated Board Locks: Secures connector firmly during through hole soldering.
- Right Angle Orientation: Optimizes layout space on compact circuit boards.
- 20 Pin Interface: Delivers stable multi-channel audio and video transmission.
Main Specifications:
General Information:
| Product No.: | DPC-F-S-RA-CS2-BL-15-EMI | |
| Product Type: | DisplayPort | |
| Gender: | Receptacle | |
| Number of Positions: | 20 Position | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Through Hole | |
| Mounting Type: | PCB Mount | |
| PCB Retention: | Board Locks | |
| Locking Mechanism: | Passive Detent | |
| Shell Design: | CS2 Shell | |
| Packaging Method: | Tray |
Electrical:
| Current rating: | 0.5 Amps per Contact | |
| Operating voltage: | 40 VAC max | |
| Contact Resistance: | 30 mohms max | |
| Insulation Resistance: | 100 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic, UL 94V-0 | |
| Shell Material: | Brass, Nickel plated | |
| Contact Material: | Brass | |
| Contact Plating: | 15 µ” (0.38 µm) Gold |
Environmental:
| Operating Temperature: | -20°C to +85°C | |
| Compliance: | Lead Free & RoHS Compliant |
DisplayPort Part Number Configuration
Applications:
- Industrial PCs and Embedded Motherboards
- Medical Imaging and Surgical Displays
- Machine Vision and Automation Systems
- Digital Signage and Video Wall Controllers
- Graphic Cards and Docking Stations
- Monitors, Laptops, and Commercial Displays
