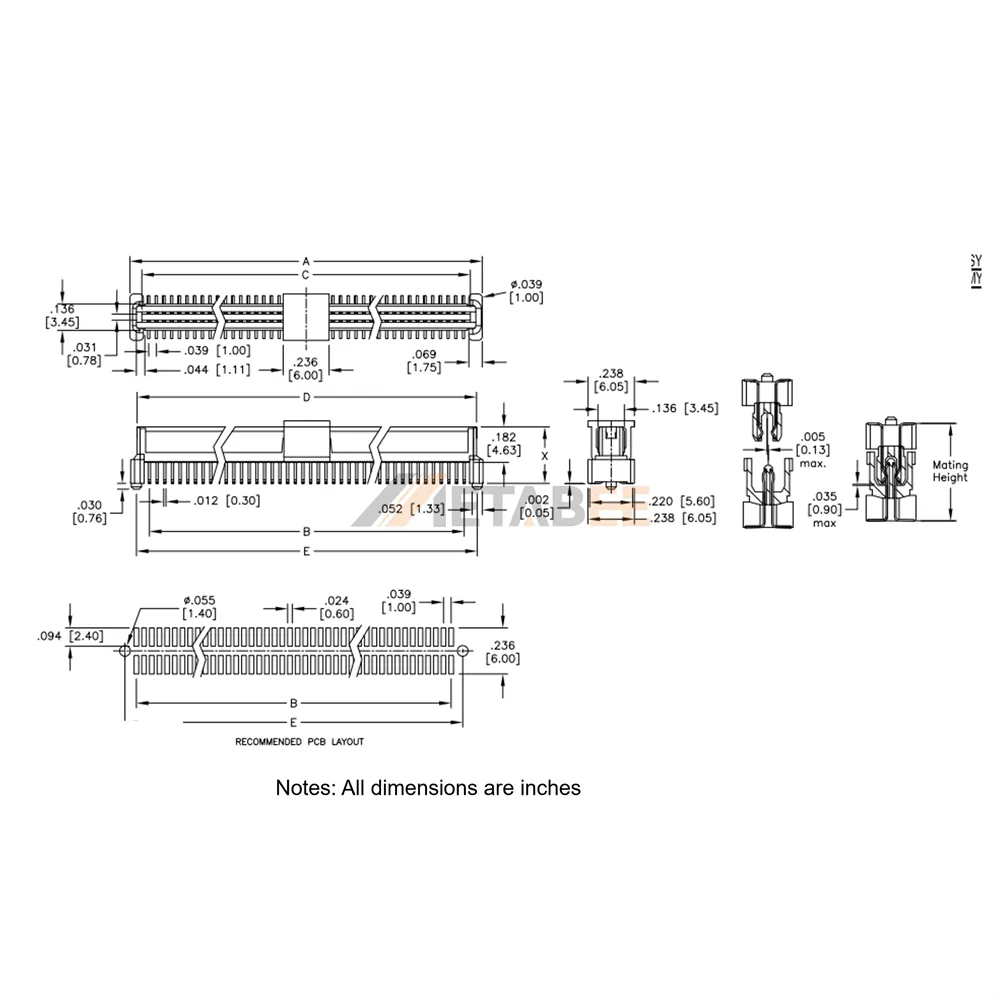

1.0mm Pitch Board to Board Socket, SMT, Vertical
Introduction:
The 1.0mm Pitch Board to Board Socket is a compact and reliable interconnect solution designed for high-density PCB applications. Featuring a vertical surface mount configuration and dual-row contact arrangement, this female connector provides secure board-to-board connections while maximizing space efficiency in modern electronic devices.
Constructed with copper alloy contacts and gold flash plating, the connector delivers excellent electrical conductivity and enhanced resistance to oxidation. The high-temperature thermoplastic insulator and UL 94 V-0 flammability rating ensure outstanding mechanical strength and safety, making it suitable for demanding operating environments. With a wide operating temperature range of -40°C to +85°C, it is ideal for industrial equipment, consumer electronics, communication systems, and embedded applications.
Engineered for dependable performance and long-term durability, the 1.0mm pitch SMT board-to-board socket offers a cost-effective solution for applications requiring stable signal transmission, compact design, and reliable mating performance.
Key Features
- 1.0mm pitch for high-density PCB layouts
- Vertical surface mount design for efficient assembly
- Dual-row female socket configuration
- Copper alloy contacts with gold flash plating
- High-temperature thermoplastic housing, UL 94 V-0 rated
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB10-SO-XXX-G-XXX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 1.0mm (0.039″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 1.0mm Pitch Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
