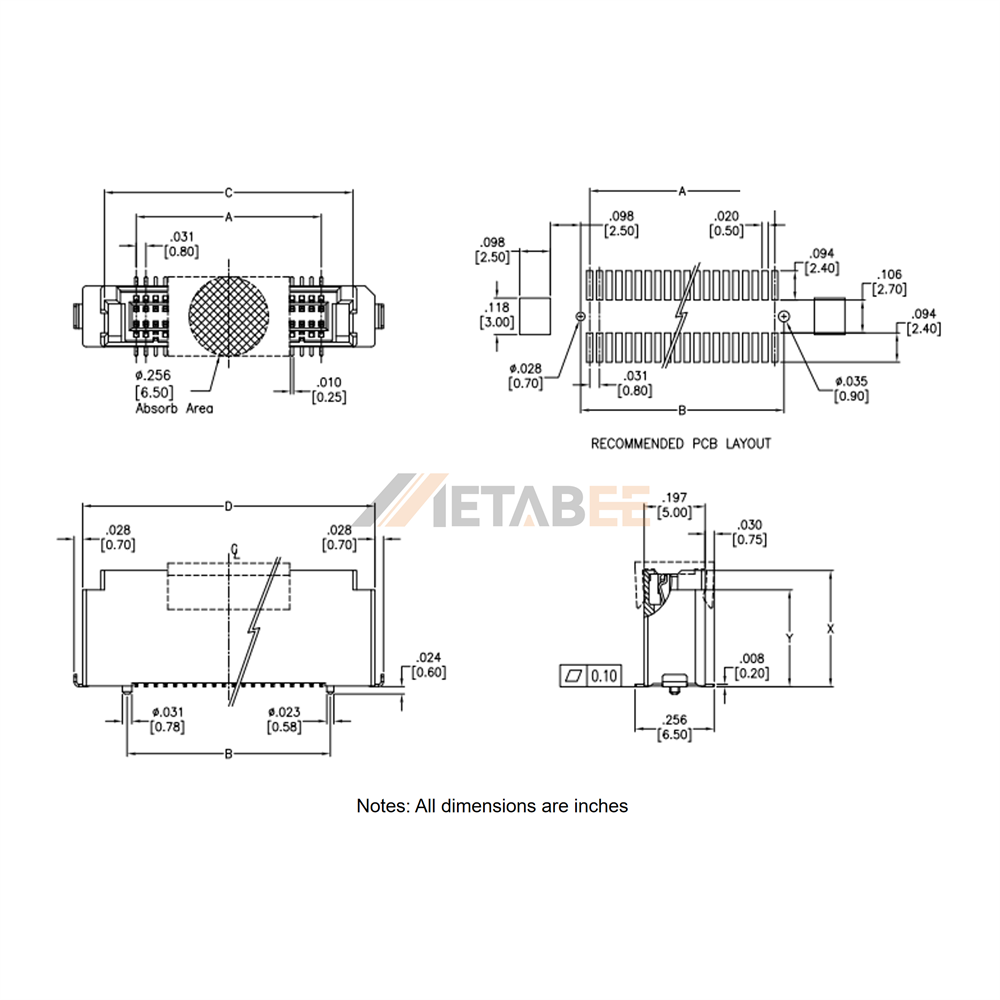

0.8mm Pitch Board to Board Socket, SMT, Dual Row
Introduction:
Optimize high-density PCB layouts with the high-performance 0.8mm Pitch Board to Board Socket. Designed for seamless vertical mating, this dual-row female receptacle offers superior scalability with configurations ranging from 20 to 140 positions. Engineered for modern automated assembly, its surface mount technology (SMT) ensures precise positioning, maximum board-space efficiency, and robust mechanical stability.
Constructed for demanding industrial environments, the connector features high-grade copper alloy contacts with gold flash plating to deliver exceptional conductivity, low contact resistance, and long-term corrosion protection. The rugged housing is molded from high-temperature thermoplastic with a UL 94 V-0 flammability rating, guaranteeing reliable operation across a wide thermal spectrum from -40°C to +85°C.
Key Features
- 0.8mm Centerline Pitch: High-density, low-profile design ideal for compact electronic spacing.
- Dual-Row Vertical Socket: Reliable female receptacle available from 20 to 140 positions.
- Surface Mount Technology: SMT configuration optimized for efficient automated PCB assembly.
- Gold Flash Plating: Premium copper alloy contacts ensure excellent signal integrity and durability.
- UL 94 V-0 Flammability: Safety-certified, high-temperature thermoplastic insulator housing.
- Industrial Temperature Range: Maintains stable electrical performance from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SW-XXX-G-X.XX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-140 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
