0.8mm Pitch Surface Mount Board to Board Receptable, Vertical
Introduction:
Maximize your PCB layout efficiency with our high-performance 0.8mm Pitch Surface Mount Board-to-Board Receptacle. Engineered for high-density and low-profile applications, this vertical female connector delivers reliable dual-row connectivity across a versatile range of 10 to 100 positions. Its precise surface mount technology (SMT) design ensures seamless integration and superior stability in modern, compact electronic assemblies.
Built to withstand demanding environments, the connector features high-grade copper alloy contacts with premium gold flash plating for exceptional conductivity and corrosion resistance. Housed in a durable, high-temperature thermoplastic insulator, it boasts a strict UL 94 V-0 flammability rating and operates flawlessly from -40°C to +85°C, making it the ideal choice for industrial, telecom, and automotive applications.
Key Features
- 0.8mm Centerline Pitch: Ideal for high-density, space-constrained PCB designs.
- Vertical Female Receptacle: Dual-row configuration available in 10 to 100 positions.
- Surface Mount Technology: SMT design optimizes automated assembly and placement.
- Gold-Plated Contacts: Copper alloy with gold flash ensures reliable, long-term conductivity.
- High-Temp Insulator: Robust thermoplastic housing with a UL 94 V-0 flammability rating.
- Wide Temperature Range: Dependable performance from -40°C up to +85°C.

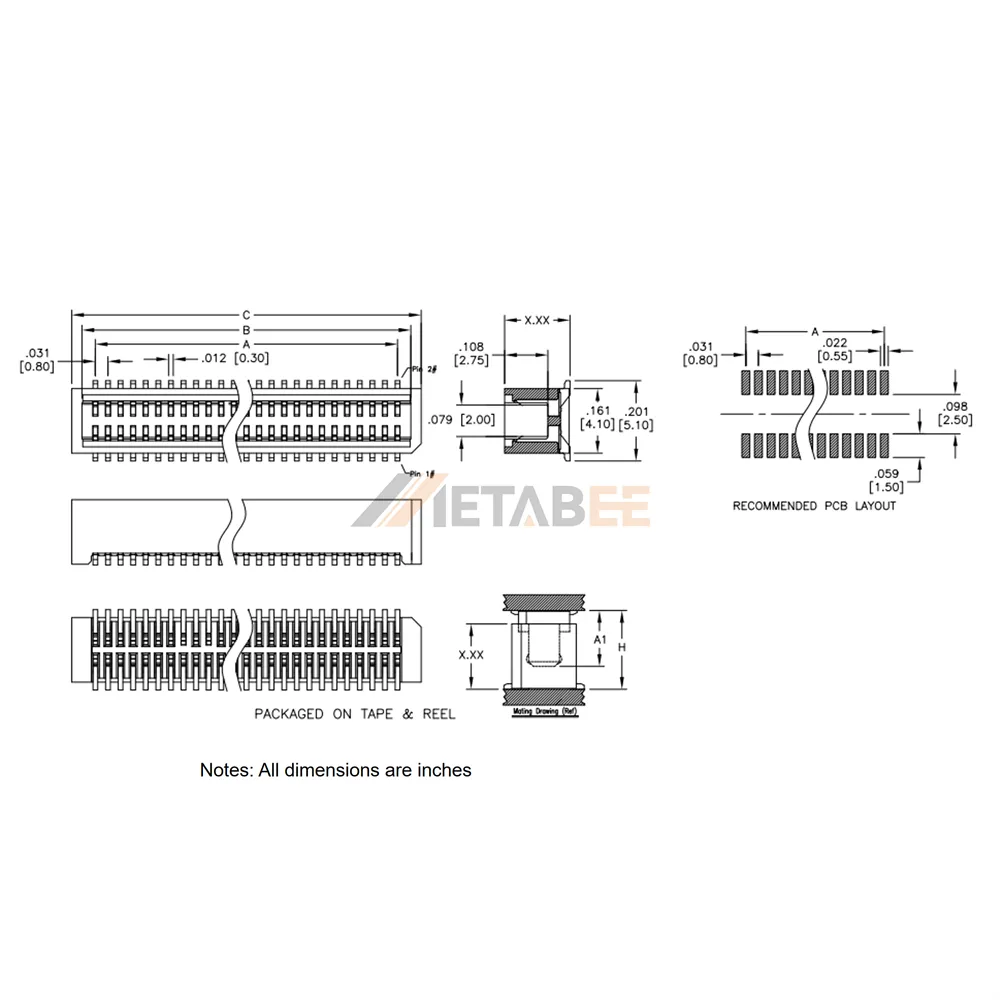

Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-X.XX-NP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Surface Mount Board to Board Receptable:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
- Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
Metabee is a professional connector manufacturer from China. We can provide all kinds of board to board connectors.
