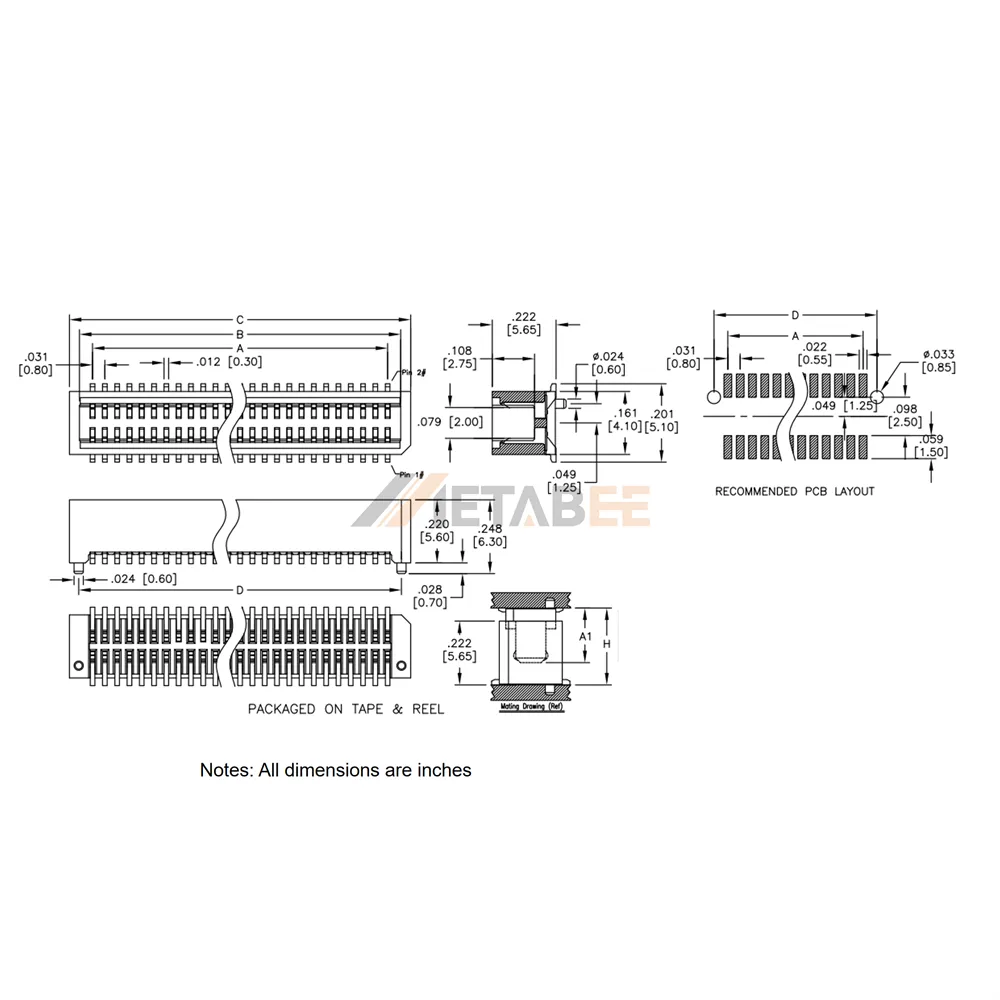

0.8mm Pitch Board to Board Socket, SMT, 5.65mm Height
Introduction:
Elevate your electronic designs with our high-performance 0.8mm Pitch Board to Board Socket. Engineered for precision and reliability, this surface-mount (SMT) female connector offers a compact 5.65mm height, making it ideal for space-constrained applications. Its dual-row configuration supports a versatile range of 10 to 100 positions, providing flexible connectivity solutions for various board-to-board interconnections. The vertical mounting orientation ensures easy integration into your PCB layouts, facilitating streamlined assembly processes and optimizing overall device footprint.
Crafted with premium materials, the connector features robust Copper Alloy contacts, enhanced with a Gold flash plating to ensure superior conductivity and exceptional corrosion resistance, guaranteeing long-term operational stability. The insulator is made from a high-temperature thermoplastic, providing excellent dielectric strength and structural integrity even under demanding thermal conditions. Designed for resilience, this socket operates reliably across a wide temperature range of -40℃ to +85℃ and boasts a UL 94 V-0 flammability rating, affirming its safety and durability in diverse industrial and commercial environments.
Whether you are developing advanced consumer electronics, industrial control systems, or telecommunications equipment, this 0.8mm pitch board-to-board socket provides the dependable, high-density connection required for modern electronic assemblies. Its combination of compact design, robust construction, and wide operating parameters makes it an indispensable component for your next-generation products.
Key Features
- 0.8mm Pitch: Ultra-fine pitch for high-density board-to-board connections.
- 5.65mm Height: Low profile design ideal for compact electronic devices.
- Dual Row, 10-100 Positions: Flexible connectivity options for various circuit needs.
- Surface Mount (SMT): Facilitates automated assembly and efficient production.
- Gold Flash Plating: Ensures excellent conductivity and corrosion resistance.
- -40℃ to +85℃ Operating Temp: Reliable performance in diverse environmental conditions.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-565-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5.65mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
