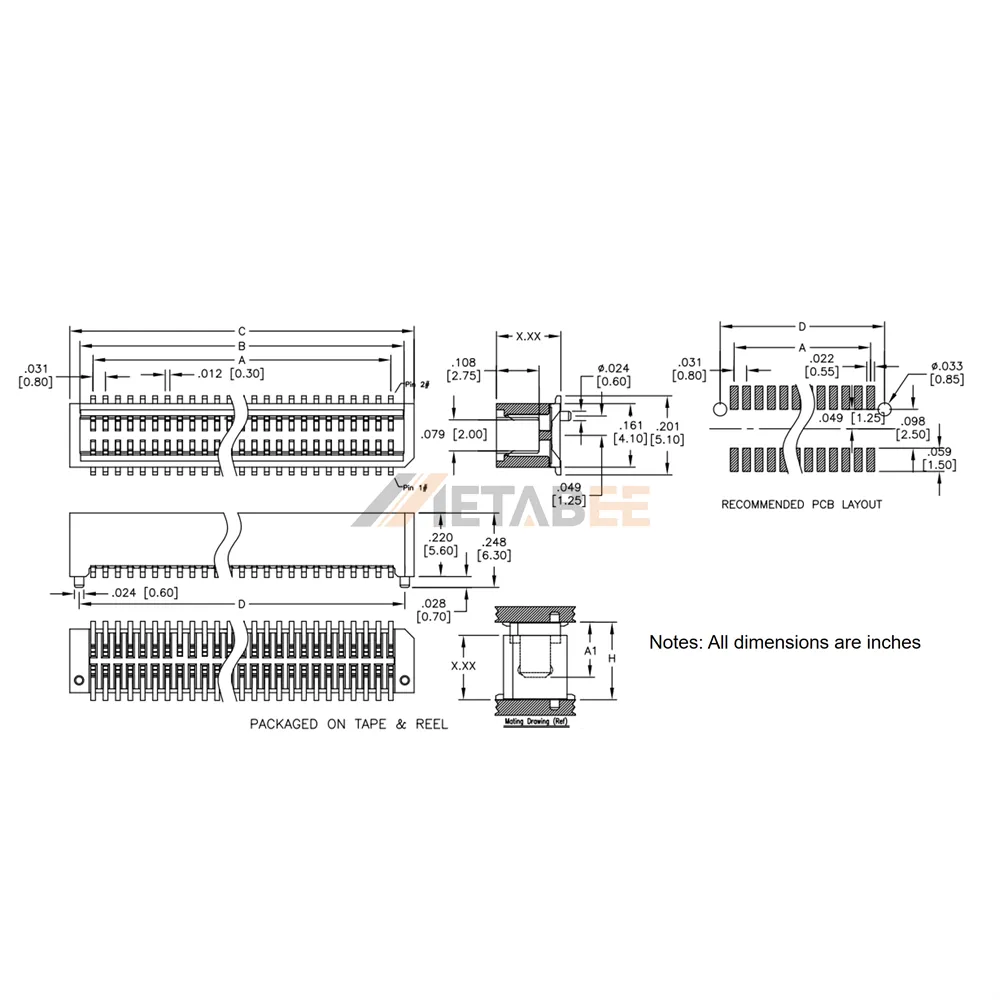

0.8mm Fine Pitch Board to Board Female SMT Connnector
Introduction:
This 0.8mm fine pitch dual-row female board-to-board connector features vertical surface mount design, supporting 10 to 100 positions for flexible PCB connection configurations. Adopting premium copper alloy contacts with gold flash plating, it delivers stable, corrosion-resistant electrical conductivity and reliable long-term connectivity. The high-temperature thermoplastic insulator ensures outstanding structural durability for standard SMT assembly processes.
Engineered for rigorous industrial and electronic applications, this connector operates steadily in a wide temperature range of -40℃ to +85℃. It meets UL 94 V-0 flammability rating, providing excellent fire resistance and safety. Compact fine-pitch structure optimizes PCB space utilization, ideal for compact electronic device interconnection.
Key Features
- 0.8mm fine pitch dual-row compact design
- 10-100 customizable pin positions
- Vertical SMT surface mount installation
- Copper alloy contacts with gold flash plating
- -40℃~+85℃ wide operating temperature
- UL 94 V-0 fire-retardant safety grade
Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-X.XX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
</tr
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Fine Pitch Board to Board Female SMT Connnector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
