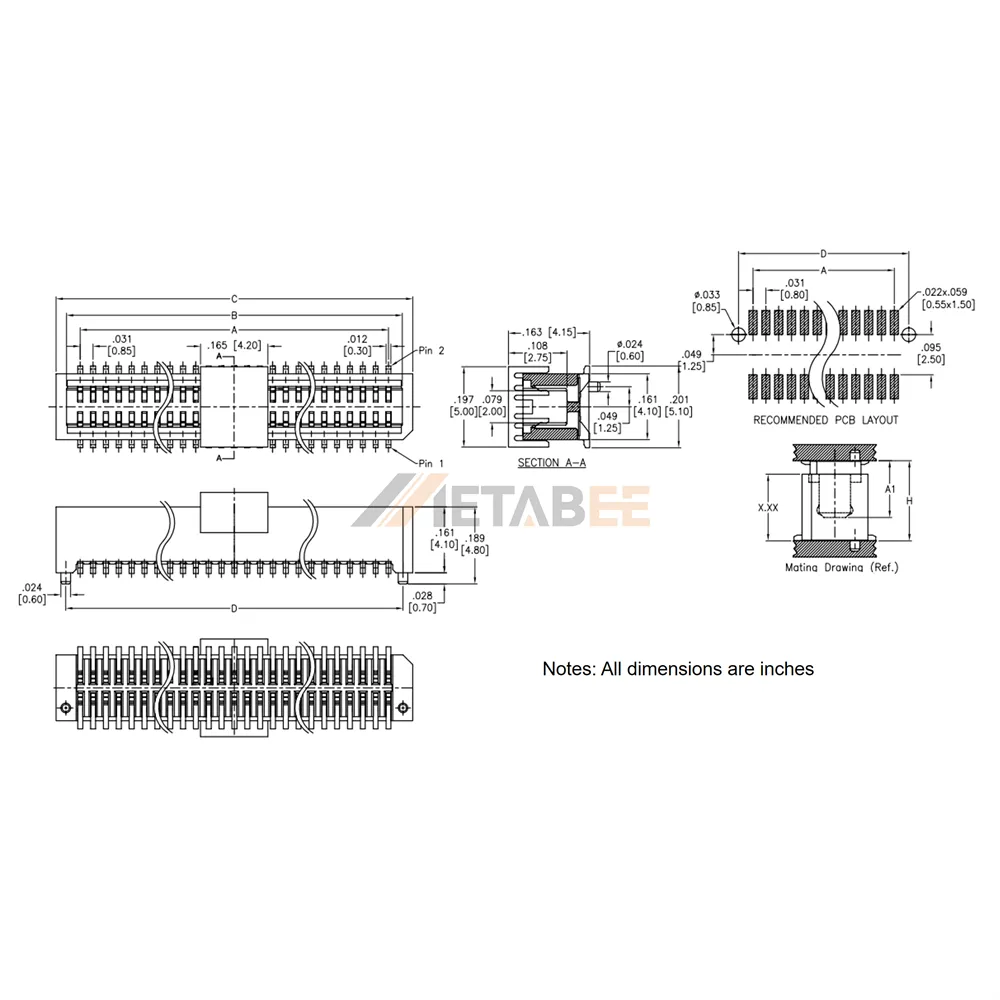

0.8mm Fine Pitch Board to Board Receptable, Surface Mount
Introduction:
The 0.8mm board to board receptacle is a high-performance female connector engineered for compact electronic devices requiring reliable board-to-board interconnection. Featuring a 0.8mm pitch, dual-row configuration, and 10 to 100 positions, it supports high-density PCB layouts while maintaining excellent electrical performance. Its vertical surface mount design simplifies automated assembly and helps reduce overall product size.
Manufactured with copper alloy contacts and gold flash plating, this receptacle provides stable conductivity, low contact resistance, and enhanced corrosion resistance for long-term reliability. The high-temperature thermoplastic insulator ensures excellent dimensional stability during SMT reflow soldering, making it suitable for demanding manufacturing environments.
Designed to operate in temperatures ranging from -40°C to +85°C, this connector delivers dependable performance across industrial, consumer electronics, communication, automotive, and embedded applications. The UL 94 V-0 flammability-rated housing offers added safety and durability, ensuring consistent operation in harsh environments.
Key Features
- 0.8mm fine pitch design for high-density PCB applications.
- Dual-row, 10–100 positions to support flexible circuit designs.
- Vertical surface mount configuration for automated SMT assembly.
- Copper alloy contacts with gold flash plating for reliable electrical performance.
- High-temperature thermoplastic housing withstands reflow soldering processes.
- Operating temperature: -40°C to +85°C with UL 94 V-0 flame-retardant insulation.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SN-XXX-G-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Fine Pitch Board to Board Receptable:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
