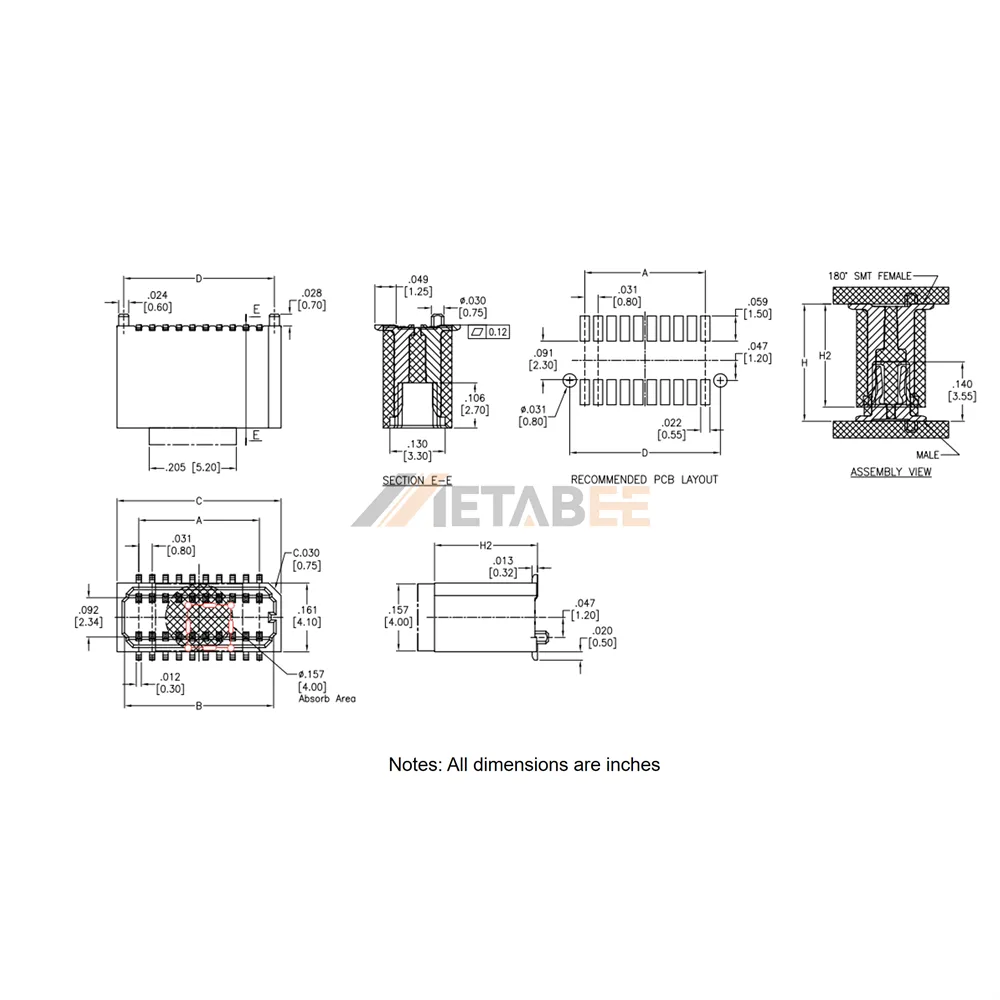

0.8mm Pitch Surface Mount Board to Board Female Connector
Introduction:
The 0.8mm Pitch Surface Mount Board-to-Board Female Connector delivers a high-density, dual-row interconnect solution for space-constrained PCB designs. Engineered with a vertical mounting orientation and surface-mount termination, this component enables streamlined automated assembly while minimizing board real estate occupancy. The connector accommodates high-speed signal transmission across densely packed contact arrays, making it suitable for portable devices, telecommunications infrastructure, and industrial control systems where reliability and compactness are non-negotiable.
Constructed with copper alloy contacts finished in gold flash, the connector ensures low and stable contact resistance alongside excellent corrosion protection over repeated mating cycles. The high-temperature thermoplastic insulator withstands lead-free reflow soldering profiles without warping or degradation, ensuring process compatibility with modern SMT lines. Rated for operation from -40°C to +85°C, this component maintains electrical integrity under thermal stress, while the UL 94 V-0 flammability rating provides critical fire safety assurance for end-use equipment.
Key Features
- 0.8mm fine-pitch spacing for high-density PCB layout
- Dual-row configuration with vertical SMT mounting
- Gold-flashed copper alloy contacts for low resistance
- High-temperature thermoplastic insulator for reflow compatibility
- Wide operating range: -40°C to +85°C
- UL 94 V-0 flammability-rated housing
Main Specifications:
General Information:
| Product No.: | YC-BB8-SWA-XX-G-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Surface Mount Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
