0.8mm Pitch Board to Board Female Connector, Vertical, SMT
Introduction:
The 0.8mm board-to-board connector delivers high-density interconnection in a vertical SMT package. Engineered for dual-row configurations supporting 04 to 100 positions, this surface-mount component addresses the stringent space constraints of modern compact electronics. The vertical mounting orientation facilitates straight top-down PCB assembly, optimizing board real estate while maintaining robust signal integrity across the entire contact array. Constructed with a copper alloy contact system terminated in gold flash plating, the connector ensures low contact resistance and superior corrosion resistance over repeated mating cycles. The high-temperature thermoplastic insulator withstands reflow soldering processes without deformation, enabling seamless integration into automated SMT production lines.
Rated for an operating temperature range of -40°C to +85°C, this connector performs reliably in thermally demanding environments, from industrial controls to automotive subsystems. The insulator material meets UL 94 V-0 flammability classification, providing essential fire retardancy for safety-critical applications. Whether deployed in test equipment, medical devices, or telecommunications hardware, this connector offers a balance of miniaturization and mechanical stability.
Key Features
- 0.8mm fine pitch – maximizes contact density on confined PCBs
- Dual-row, 04–100 positions – scalable I/O flexibility
- Vertical SMT mounting – streamlines assembly and conserves board area
- Gold-flashed copper alloy contacts – ensures low and stable contact resistance
- -40°C to +85°C operation – withstands harsh thermal cycling
- UL 94 V-0 insulator – delivers fire-safe performance

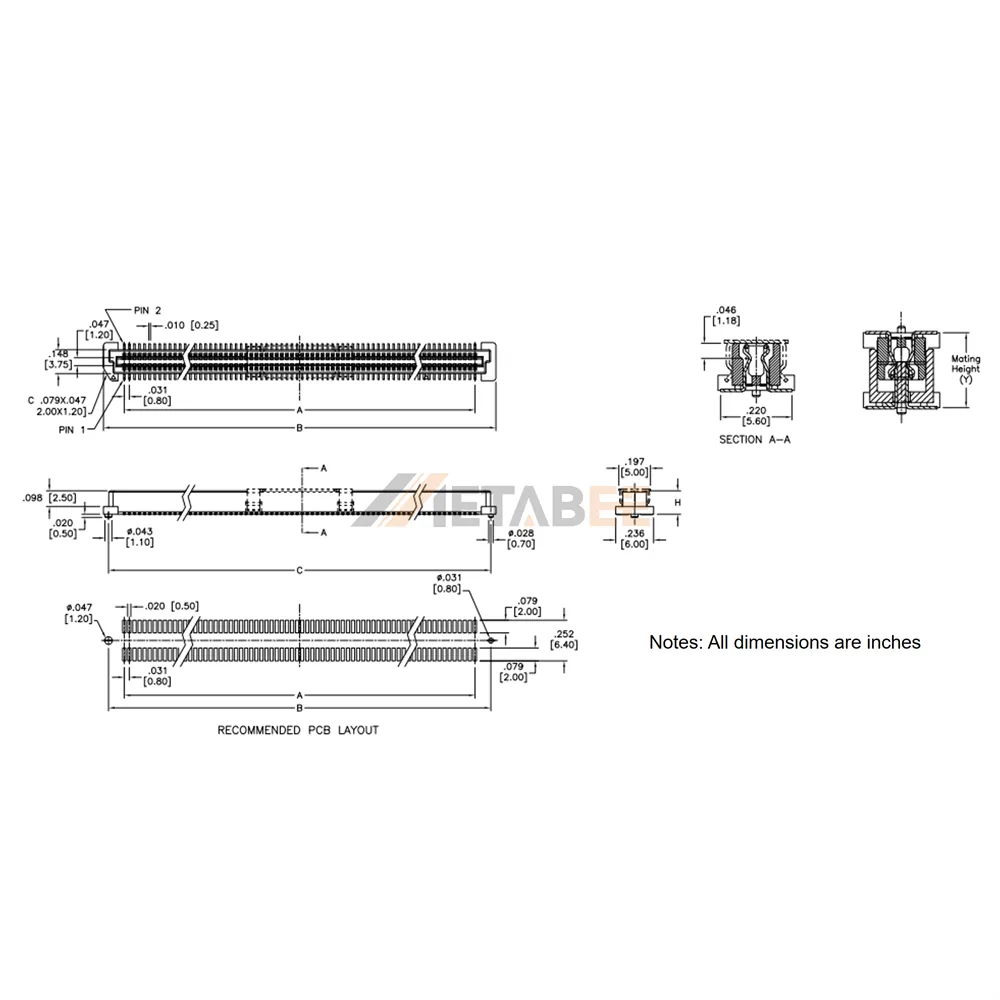

Main Specifications:
General Information:
| Product No.: | YC-BB8-SO-XXX-SG-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 04-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
