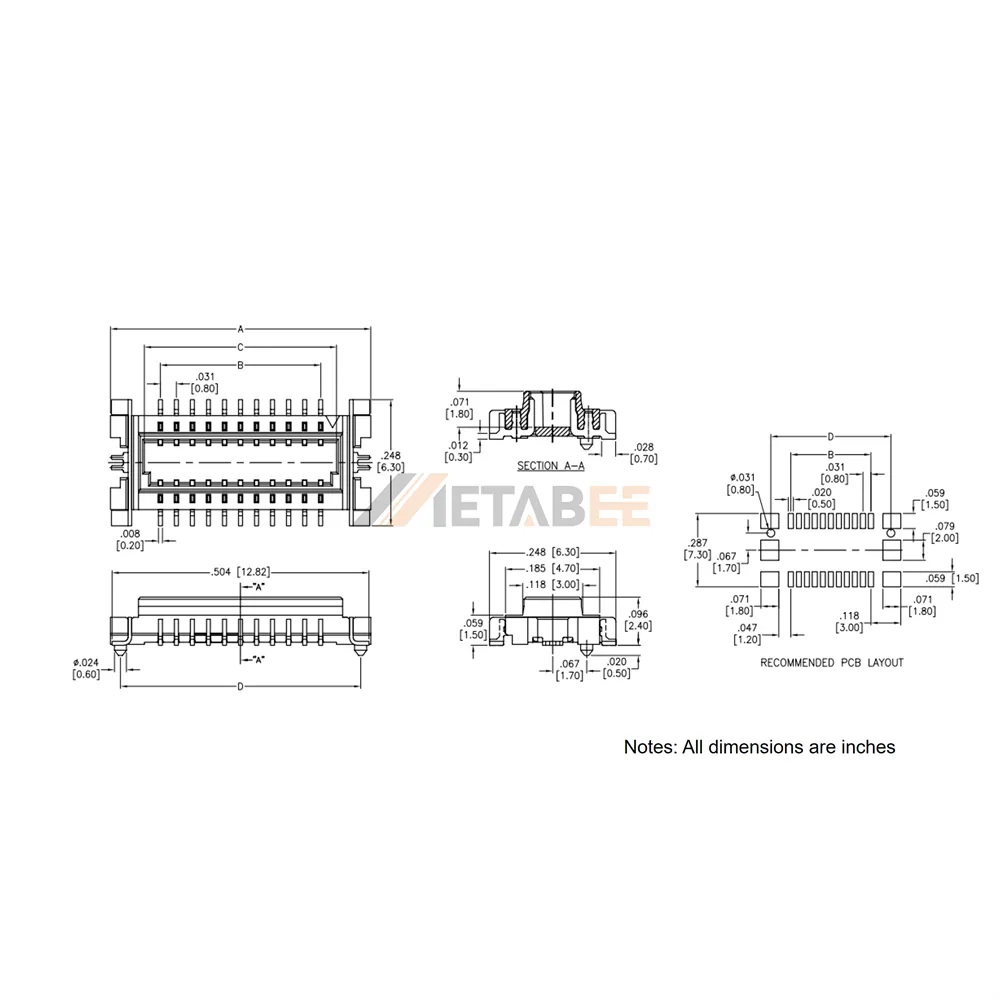

0.8mm Pitch Board to Board Connector, Stacking, SMT, 2.4mm Height
Introduction:
The 0.8mm pitch board to board connector, stacking, smt, 2.4mm height is engineered for compact electronic devices requiring reliable board-level interconnection. Featuring a 2.4mm stacking height, 0.8mm pitch, and vertical surface mount design, this female connector supports 4 to 100 positions in a dual-row configuration, making it suitable for high-density pcb layouts.
Manufactured with copper alloy contacts and gold flash plating, the connector delivers stable electrical performance, low contact resistance, and enhanced corrosion resistance. The high-temperature thermoplastic insulator and ul 94 v-0 flammability rating provide excellent thermal stability and safety, while the operating temperature range of -40°c to +85°c ensures dependable performance across a wide range of industrial and commercial applications.
Key Features
- 0.8mm fine pitch for high-density PCB designs
- 2.4mm stacking height for compact assemblies
- Dual-row female connector with 4–100 positions
- Vertical SMT mounting for automated PCB assembly
- Copper alloy contacts with gold flash plating for reliable conductivity
- Hi-temp thermoplastic housing, UL 94 V-0, operating from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB8-SP-XX-G-2.40-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 04-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 2.4mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
