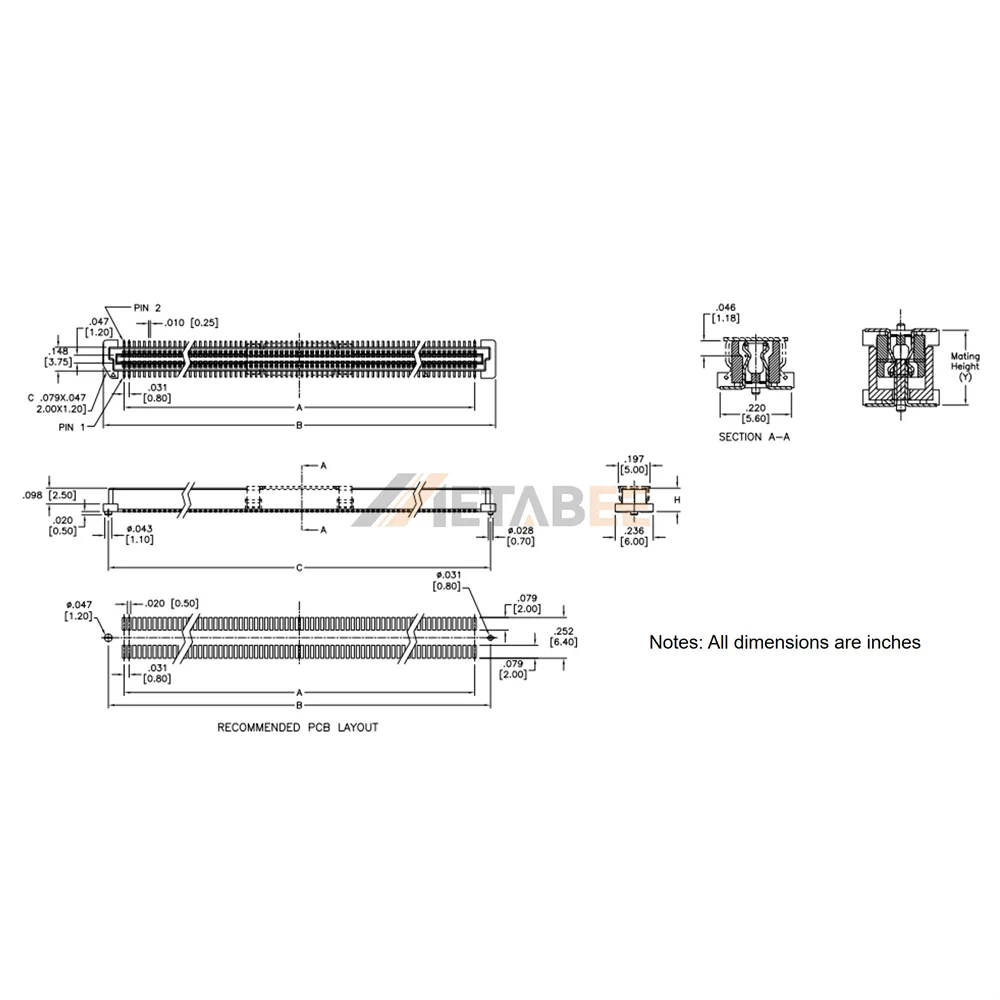

0.8mm Pitch Board to Board Female Connector, SMT
Introduction:
Introducing the 0.8mm Pitch Board to Board Female Connector, an essential component for high-density electronic designs requiring exceptional signal integrity and mechanical reliability. Engineered for precision, this dual-row vertical surface-mount connector facilitates robust parallel board stacking, optimizing valuable PCB real estate in compact and sophisticated applications. Its fine pitch design directly addresses the escalating demand for miniaturization without compromising performance, making it ideal for a broad spectrum of advanced electronic systems.
Constructed from a robust copper alloy, the contacts feature a gold flash plating to ensure superior electrical conductivity and exceptional resistance to corrosion, guaranteeing long-term operational stability. The insulator, fabricated from high-temperature thermoplastic, provides excellent dielectric strength and structural integrity, specifically engineered to withstand demanding thermal environments. This connector is rated for an operating temperature range of -40℃ to +85℃, ensuring reliable performance across diverse environmental conditions. Furthermore, it meets UL 94 V-0 flammability standards, affirming its commitment to safety and compliance in critical applications.
This connector offers a critical solution for designers seeking to achieve high-performance board-to-board connections in space-constrained designs. Its combination of advanced materials, precise engineering, and stringent safety compliance ensures a dependable interface for sophisticated electronic assemblies, driving innovation in next-generation devices.
Key Features
- 0.8mm Pitch Design: Facilitates high-density board-to-board interconnections, crucial for miniaturized electronic devices.
- Dual Row Vertical SMT: Optimizes PCB space with a vertical mounting orientation and efficient surface-mount technology.
- Copper Alloy Contacts with Gold Flash: Ensures superior electrical conductivity, enhanced signal integrity, and exceptional corrosion resistance.
- High-Temperature Thermoplastic Insulator: Provides robust insulation and structural stability, capable of enduring challenging thermal profiles.
- Wide Operating Temperature: Reliably functions across a broad range from -40℃ to +85℃, suitable for diverse environments.
- UL 94 V-0 Flammability Rated: Complies with stringent safety standards, enhancing product safety in critical applications.
Main Specifications:
General Information:
| Product No.: | YC-BB8-SO-XXX-G-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
