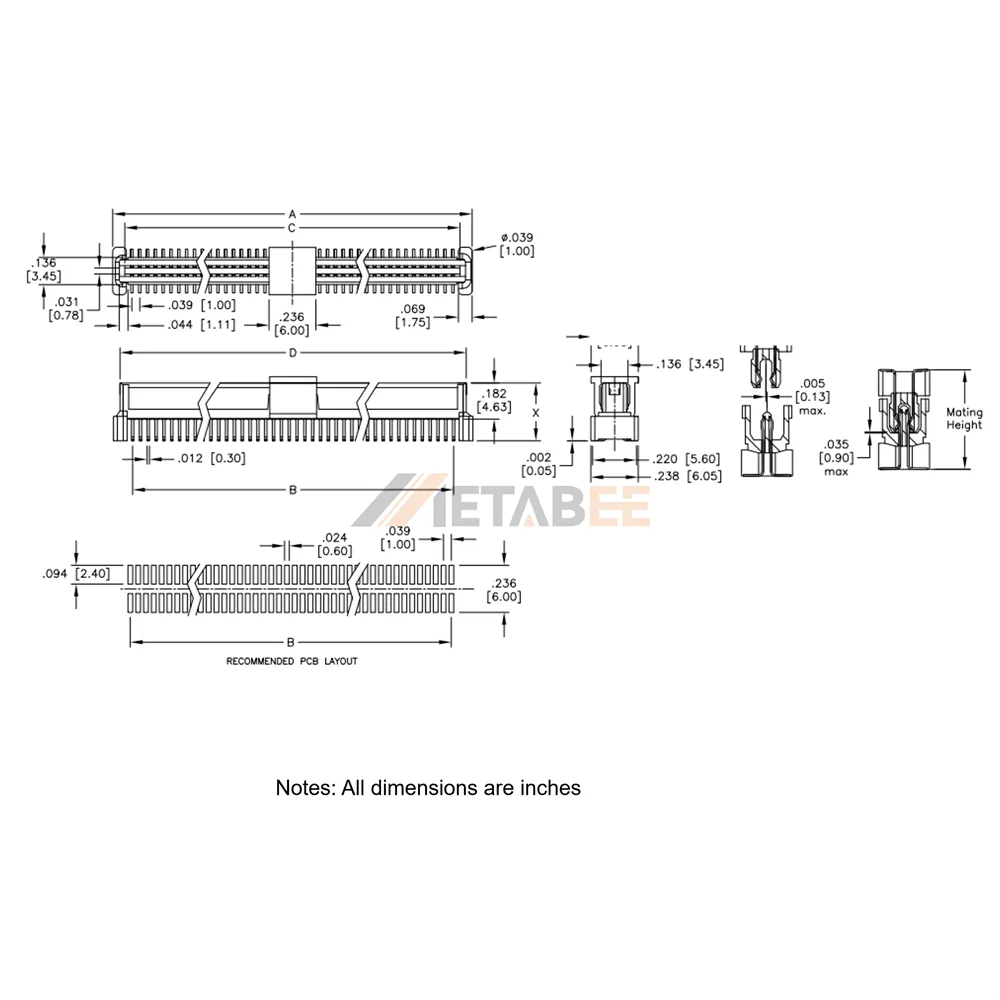

1.0mm/0.039″ Pitch Board to Board Female Connector, SMT, Vertical
Introduction:
The 1.0mm/0.039″ Pitch Board to Board Female Connector is a high-density interconnect solution designed for compact electronic applications requiring reliable signal transmission and secure board-to-board mating. Featuring a vertical surface mount configuration and dual-row design, it enables efficient PCB space utilization while supporting stable electrical performance.
Manufactured with copper alloy contacts and gold flash plating, this connector provides excellent conductivity and enhanced resistance to corrosion. The high-temperature thermoplastic insulator, combined with a UL 94 V-0 flammability rating, ensures durability and safety in demanding environments. With an operating temperature range from -40°C to +85°C, the connector is suitable for industrial control, consumer electronics, communication devices, and embedded systems.
Engineered for dependable performance and long service life, the 1.0mm pitch SMT board-to-board female connector offers a cost-effective solution for high-density PCB designs where space savings and connection reliability are critical.
Key Features
- 1.0mm (0.039″) pitch for high-density PCB applications
- Vertical SMT mounting design for space-saving assembly
- Dual-row configuration for increased contact capacity
- Copper alloy contacts with gold flash plating for reliable conductivity
- High-temperature thermoplastic insulator with UL 94 V-0 rating
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB10-SO-XXX-G-XXX-NP-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 1.0mm (0.039″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 1.0mm/0.039″ Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
