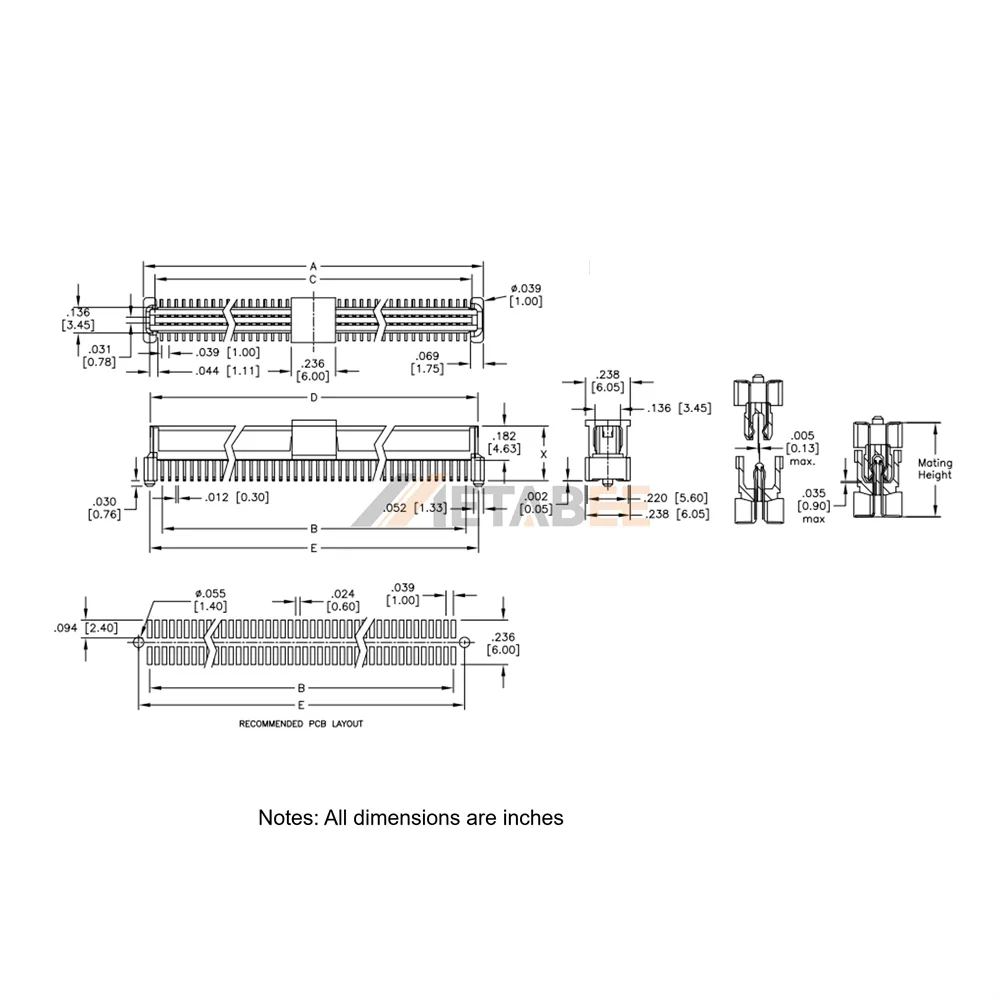

1.0mm Pitch Board to Board Female Connector, Vertical Surface Mount
Introduction:
This 1.0mm pitch board-to-board female connector is engineered for high-density, reliable signal transmission in compact electronic designs. Constructed for durability and performance, the connector utilizes high-temperature thermoplastic for the housing, ensuring stability during reflow soldering processes and achieving a UL 94 V-0 flammability rating for superior safety. The copper alloy contacts are finished with gold flash plating, offering excellent electrical conductivity and corrosion resistance. Built to withstand demanding environments, it maintains consistent performance within an operating temperature range of -40℃ to +85℃.
Key Features
- Compact Pitch: 1.0mm centerline spacing for high-density PCB layouts.
- Vertical Orientation: Optimized for mezzanine or parallel board-to-board stacking.
- Reliable Material: Durable high-temp thermoplastic with UL 94 V-0 safety rating.
- Enhanced Connectivity: Gold flash plated copper alloy contacts for stable signal integrity.
- Versatile Operation: Capable of functioning in environments from -40℃ to +85℃.、
Main Specifications:
General Information:
| Product No.: | YC-BB10-SO-XXX-G-XXX-30-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 1.0mm (0.039″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 1.0mm Pitch Board to Board Female Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
