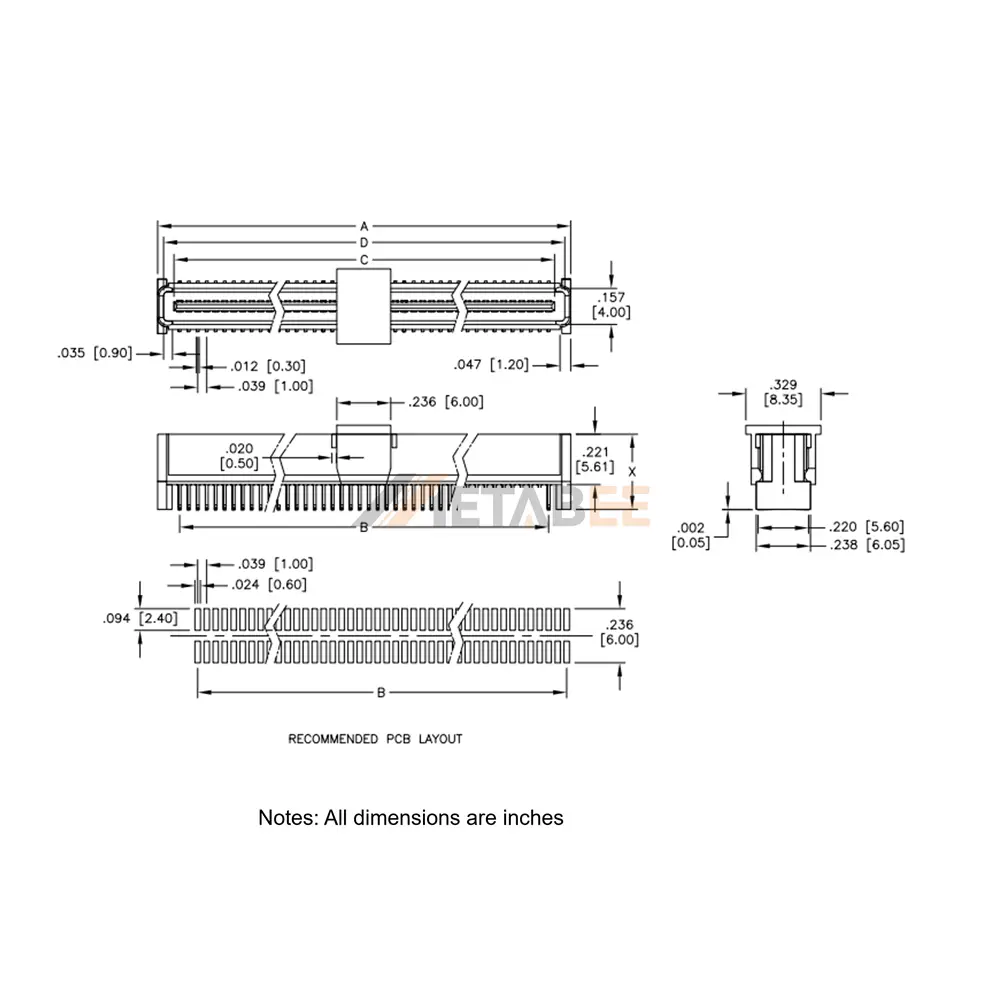

1 mm Pitch Board to Board Male Connector, SMT, Vertical, Dual Row
Introduction:
The 1.0 mm pitch board to board Male connector is designed for high-density PCB interconnection applications requiring reliable electrical performance and compact board stacking. Featuring a vertical surface mount configuration and dual-row design with 80 positions, this connector provides an efficient solution for maximizing PCB space utilization in industrial and electronic systems.
Manufactured with copper alloy contacts and gold flash plating, the connector ensures excellent conductivity, corrosion resistance, and stable signal transmission. The high-temperature thermoplastic insulator with a UL 94 V-0 flammability rating offers superior mechanical strength and enhanced safety, making it suitable for demanding environments.
Designed to operate within a temperature range of -40°C to +85°C, this SMT board to board male connector is ideal for industrial automation, communication equipment, embedded systems, medical devices, consumer electronics, and various compact electronic assemblies requiring dependable PCB-to-PCB connections.
Key Features
- 1.0 mm pitch for high-density PCB connections
- Vertical surface mount design for automated assembly
- Dual-row configuration with 80 positions
- Copper alloy contacts with gold flash plating
- High-temperature thermoplastic insulator, UL 94 V-0 rated
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB10-PO-XXX-G-XXX-NP-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 1.0mm (0.039″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 80 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 1 mm Pitch Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
