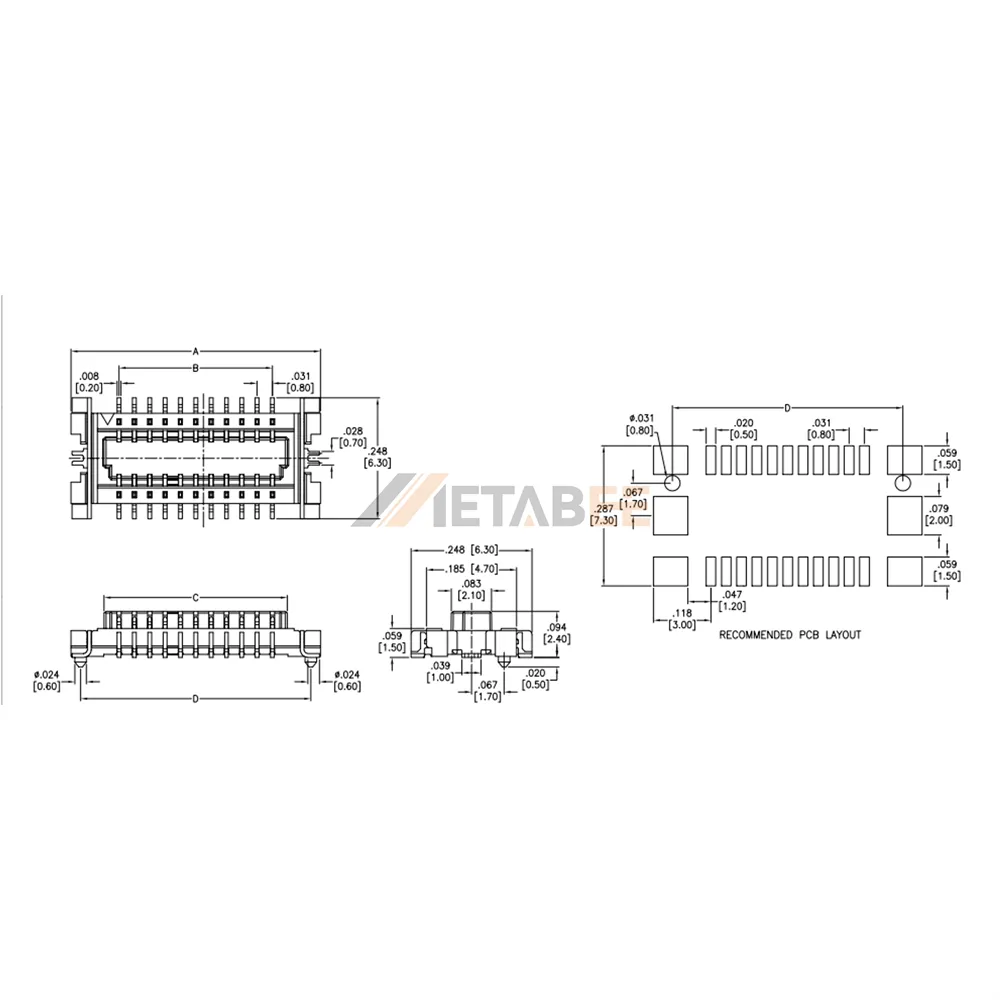

0.8mm Pitch Vertical Board to Board Male Connector, SMT, 2.4mm Stack Height
Introduction:
The 0.8mm Pitch Vertical Board-to-Board Male Connector is a high-reliability SMT interconnect solution engineered for compact PCB stacking applications. Designed with a dual-row, 12-position configuration, this vertical male header delivers a stable 2.4mm stack height, making it ideal for space-constrained designs in consumer electronics, industrial controls, and communication modules. The surface-mount termination ensures secure solder joints on PCBs, while the vertical orientation simplifies board stacking and reduces signal path lengths for improved high-frequency performance. Constructed with a high-temperature thermoplastic insulator (UL 94 V-0 rated), this connector withstands harsh assembly processes, including reflow soldering, without deformation or degradation.
Engineered for durability, the contact system uses a copper alloy base with gold flash plating, offering excellent corrosion resistance and stable electrical conductivity over repeated mating cycles. The operating temperature range of -40°C to +85°C guarantees reliable performance in diverse environments, from cold storage equipment to automotive interior systems. Whether used in portable devices or fixed industrial machinery, this connector balances mechanical strength, electrical integrity, and manufacturing efficiency, reducing assembly errors and enhancing production yield. Its compact footprint and precise pitch alignment enable dense PCB layouts, while the robust insulator and plating ensure long-term signal integrity under vibration and thermal stress.
Key Features
- 0.8mm fine pitch – Enables high-density board stacking with minimal PCB footprint.
- Vertical SMT design – Simplifies assembly and supports automated pick-and-place processes.
- Dual-row, 12 positions – Provides flexible I/O routing in a compact 2.4mm stack height.
- Gold flash plated contacts – Ensures low contact resistance and superior oxidation protection.
- High-temp thermoplastic insulator – UL 94 V-0 rated for flame resistance and reflow compatibility.
- Wide operating temperature – -40°C to +85°C for reliable performance in harsh environments.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PP-XX-G-2.40-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 12 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 2.4mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Vertical Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
