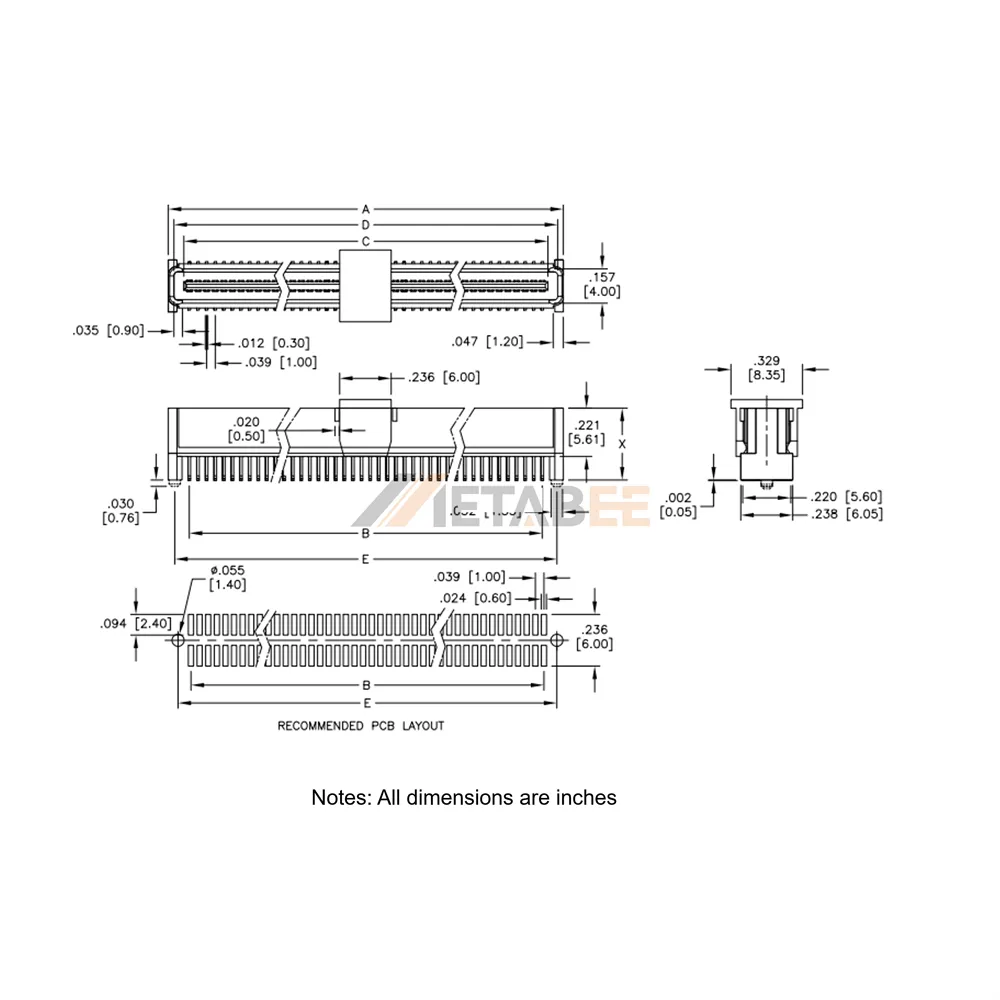

1.0 mm Pitch Board to Board Plug, Vertical SMT, Dual Row
Introduction:
Optimize your high-density PCB designs with our premium 1.0 mm Pitch Board-to-Board Plug. Engineered for reliability in compact electronic systems, this vertical, dual-row male connector features high-temperature thermoplastic housing, ensuring structural integrity during surface mount assembly. Its precision-engineered copper alloy contacts, finished with gold flash plating, provide excellent conductivity and corrosion resistance for long-term performance.
Designed to excel in challenging environments, this connector operates seamlessly within a temperature range of -40°C to +85°C. With a UL 94 V-0 flammability rating, it meets stringent safety standards for industrial and consumer electronics. The vertical mounting orientation and surface mount (SMT) design facilitate efficient automated manufacturing, making it an ideal choice for space-constrained applications requiring robust, high-performance interconnect solutions.
Key Features
- 1.0 mm Fine Pitch: Optimized for high-density, space-saving PCB layouts.
- Dual Row Configuration: Maximizes pin count within a compact footprint.
- Vertical SMT Design: Perfectly suited for efficient, high-speed automated assembly.
- Premium Material Construction: Durable copper alloy contacts with gold flash for superior signal integrity.
- High Thermal Stability: Withstands harsh environments (-40°C to +85°C).
- Safety Compliant: Features UL 94 V-0 rated housing for reliable fire resistance.
Main Specifications:
General Information:
| Product No.: | YC-BB10-PO-XXX-G-XXX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 1.0mm (0.039″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 1.0 mm Pitch Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
