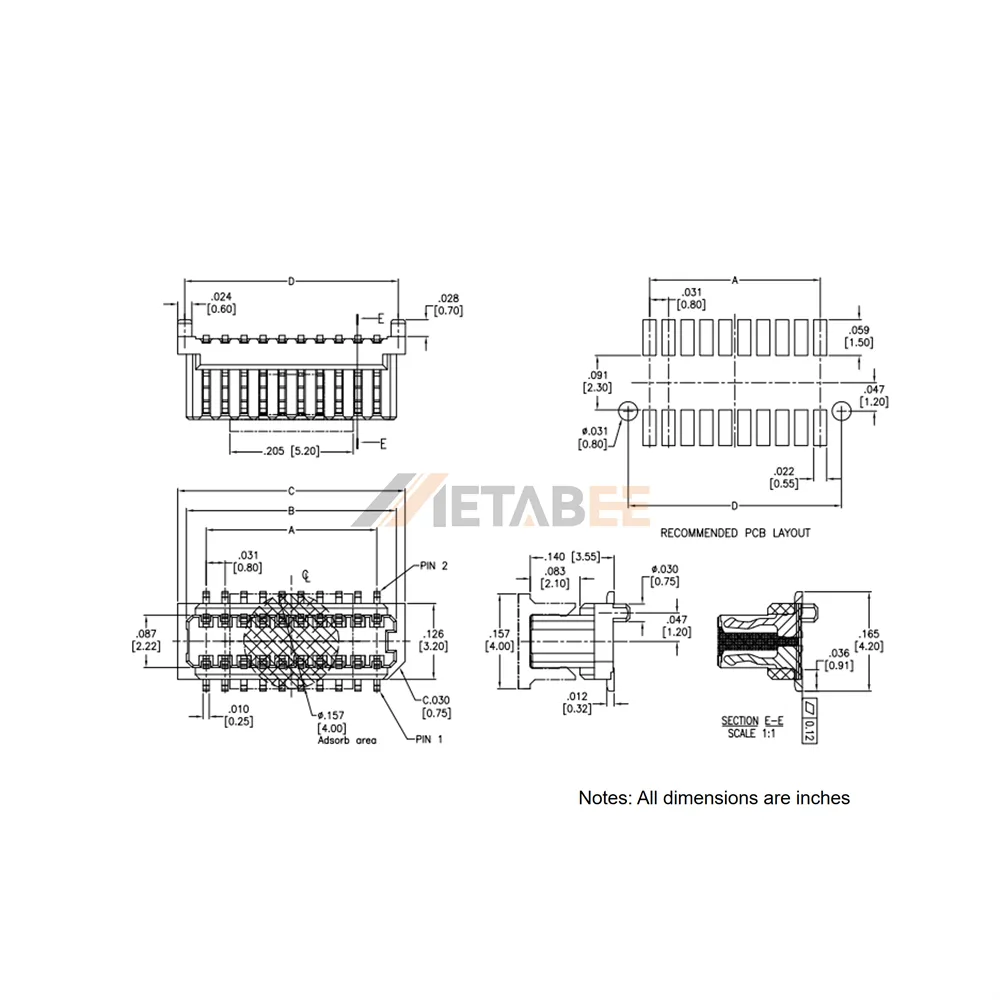

0.8mm Pitch PCB Board to Board Plug, SMT, 3.55mm Stack Height
Introduction:
This high-performance 0.8mm pitch PCB board-to-board plug is engineered for low-profile, high-density electronic applications. Featuring a vertical surface mount (SMT) orientation and a precise 3.55mm stack height, this dual-row male connector optimizes PCB real estate while ensuring robust, high-speed signal integrity in compact device designs.
Constructed for reliability under demanding conditions, the connector utilizes high-temperature thermoplastic insulation paired with premium copper alloy contacts finished in gold flash plating. With a wide operating temperature range of -40°C to +85°C and a UL 94 V-0 flammability rating, this component guarantees exceptional thermal stability and long-term durability for industrial and consumer electronics alike.
Key Features
- 0.8mm Centerline Pitch: High-density dual-row configuration for maximum space savings.
- 3.55mm Stack Height: Low-profile vertical plug design ideal for compact parallel PCB stacking.
- SMT Mounting: Standard surface mount technology for automated, high-efficiency assembly.
- Gold Flash Plating: Copper alloy contacts with gold flash ensure superior conductivity and oxidation resistance.
- UL 94 V-0 Flammability: Advanced high-temperature thermoplastic housing meets strict safety standards.
- Wide Temperature Range: Reliable performance in harsh environments from -40°C up to +85°C.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PWA-XX-G-3.55-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 3.55mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch PCB Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
