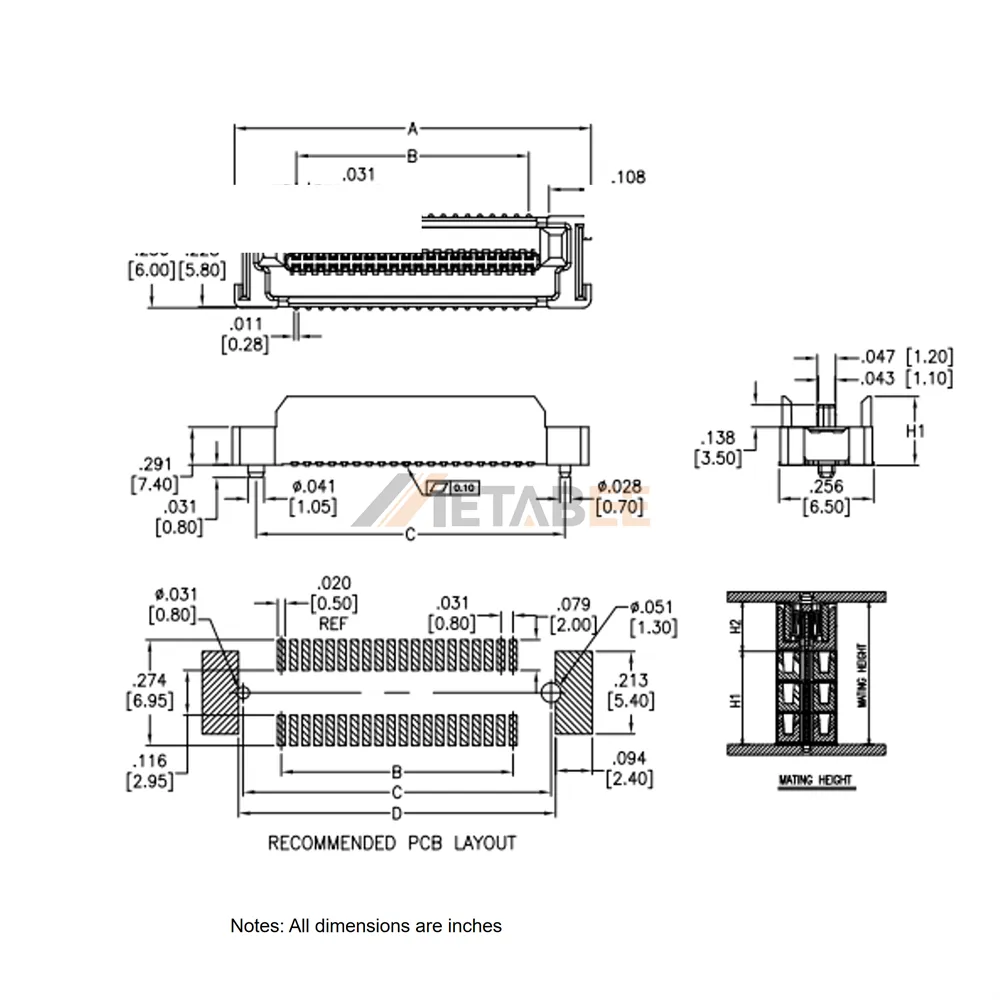

0.8mm Pitch Vertical SMT Board to Board Plug, Dual Row
Introduction:
The 0.8mm Pitch Vertical SMT Board to Board Plug is engineered for high-density electronic applications that require reliable and space-efficient board-to-board interconnections. Featuring a dual-row male design with 10 to 200 positions, this connector supports flexible circuit layouts while maximizing PCB real estate. Its vertical orientation and surface mount configuration enable efficient automated assembly and compact product designs.
Constructed with copper alloy contacts and gold flash plating, the connector provides excellent electrical conductivity, low contact resistance, and dependable mating performance. The high-temperature thermoplastic housing ensures dimensional stability during soldering processes and maintains mechanical integrity under demanding operating conditions.
Designed for long-term reliability, this connector operates within a temperature range of -40°C to +85°C and features a UL 94 V-0 flammability-rated insulator for enhanced safety. It is widely used in industrial equipment, telecommunications systems, consumer electronics, automotive electronics, and embedded control applications where compact, high-performance interconnect solutions are required.
Key Features
- 0.8mm pitch design for high-density PCB applications
- Dual-row male connector with 10–200 positions available
- Vertical SMT mounting for space-saving board layouts
- Copper alloy contacts with gold flash plating for reliable conductivity
- High-temperature thermoplastic housing with UL 94 V-0 rating
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB8-PAT-XXX-SGM-X.XXX | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-200 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Vertical SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
