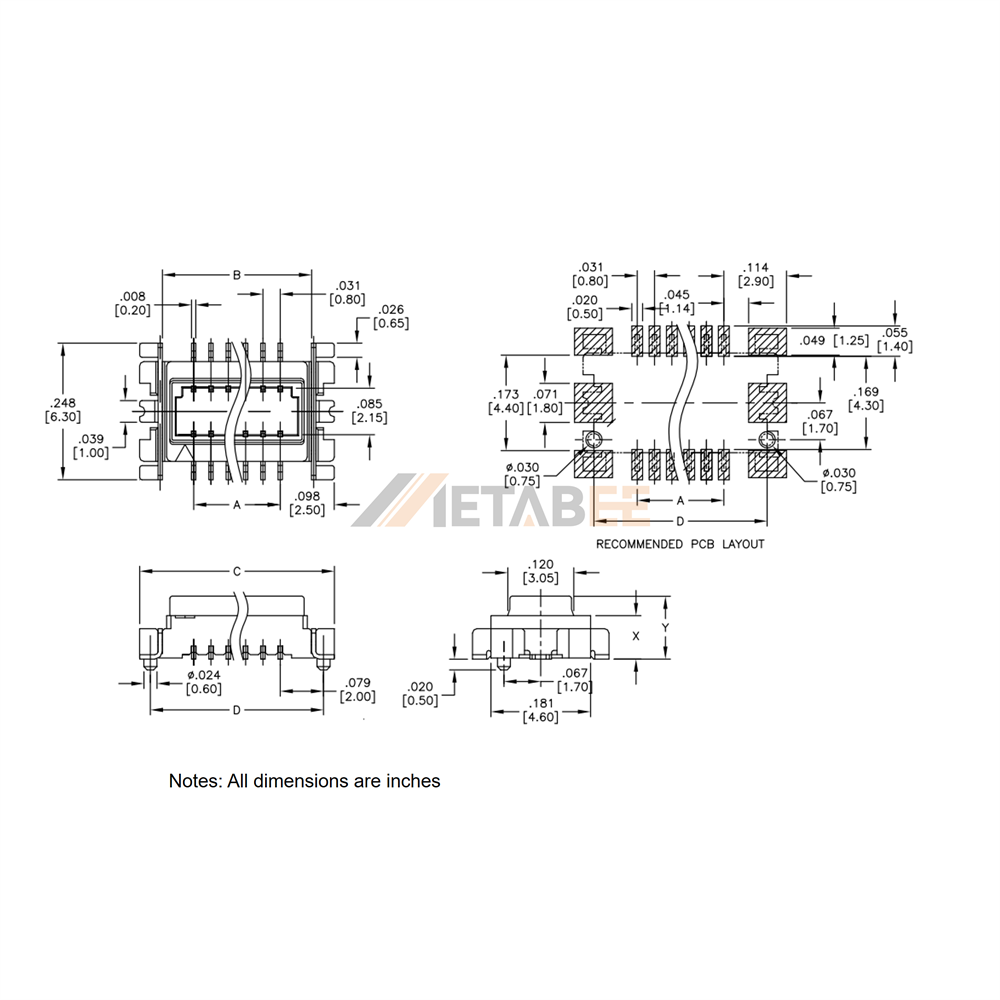

0.8mm Pitch SMT Board to Board Plug, Vertical
Introduction:
This vertical SMT board-to-board plug delivers a compact 0.8 mm pitch dual-row interface supporting 10 to 30 positions, engineered for high-density PCB stacking in space-constrained assemblies. Constructed with a copper alloy contact system plated with gold flash, the connector ensures reliable signal integrity and corrosion resistance across repeated mating cycles. The high-temperature thermoplastic insulator meets UL 94 V-0 flammability requirements, enabling operation across a -40°C to +85°C range – suitable for industrial, automotive, and consumer electronics environments where thermal stability and fire safety are non-negotiable.
Surface-mount termination with vertical orientation simplifies automated pick-and-place assembly, reducing manufacturing overhead while maintaining coplanarity control for consistent solder joint formation. The male plug design facilitates blind-mating applications, and the 0.8 mm centerline allows significant PCB real-estate savings compared to coarser-pitch alternatives, without compromising mechanical retention or contact normal force.
Key Features
- 0.8 mm pitch dual-row male plug, 10–30 positions
- Vertical SMT mounting for streamlined assembly
- Gold-flashed copper alloy contacts for low resistance
- High-temp thermoplastic insulator, UL 94 V-0 rated
- Wide operating temperature: -40°C to +85°C
- Compact stack height optimizes board spacing
Main Specifications:
General Information:
| Product No.: | YC-BB8-PEA-XX-G-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-30 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
