0.8 mm Pitch Board to Board Male Connector, Plug, SMT, 3.55mm Stack Height
Introduction:
Elevate your high-density PCB designs with this premium 0.8 mm Pitch Board to Board Male Connector. Engineered as a high-performance vertical plug, this surface mount (SMT) component delivers a low-profile 3.55mm stack height, optimized for compact sub-assemblies where vertical space is critical. The dual-row architecture supports a scalable range from 10 to 100 positions, providing maximum routing flexibility for modern telecom, industrial, and consumer electronics.
Constructed for exceptional signal integrity, the connector features high-grade copper alloy contacts with superior gold flash plating to resist oxidation and wear. The rugged housing is molded from UL 94 V-0 flame-retardant, high-temperature thermoplastic, ensuring complete structural survival through demanding reflow soldering cycles. With a wide operating temperature range from -40°C to +85°C, this interconnect solution guarantees reliable electrical and mechanical performance in harsh environments.
Key Features
- 0.8mm Centerline Pitch: High-density, dual-row vertical layout optimizes PCB real estate.
- Low-Profile 3.55mm Stack: Perfect for space-constrained parallel board-to-board stacking.
- 10-100 Positions: Scalable pin count configurations to suit diverse circuit architectures.
- Gold Flash Plating: Copper alloy contacts ensure high conductivity and corrosion resistance.
- UL 94 V-0 Flammability: Flame-retardant, hi-temp thermoplastic insulator for enhanced safety.
- Industrial Temperature Range: Rated to operate reliably from -40°C up to +85°C.

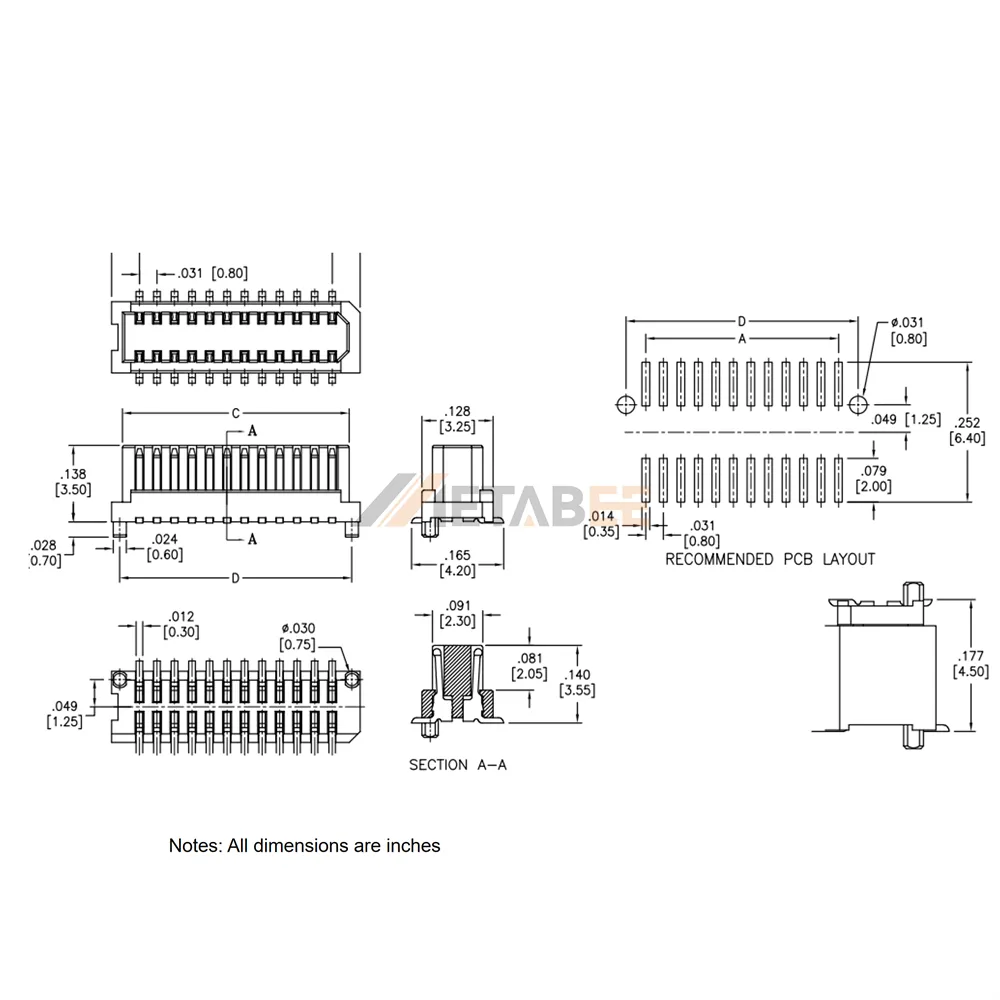

Main Specifications:
General Information:
| Product No.: | YC-BB8-PD-XXX-G-355-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 3.55mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8 mm Pitch Board to Board Male Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
