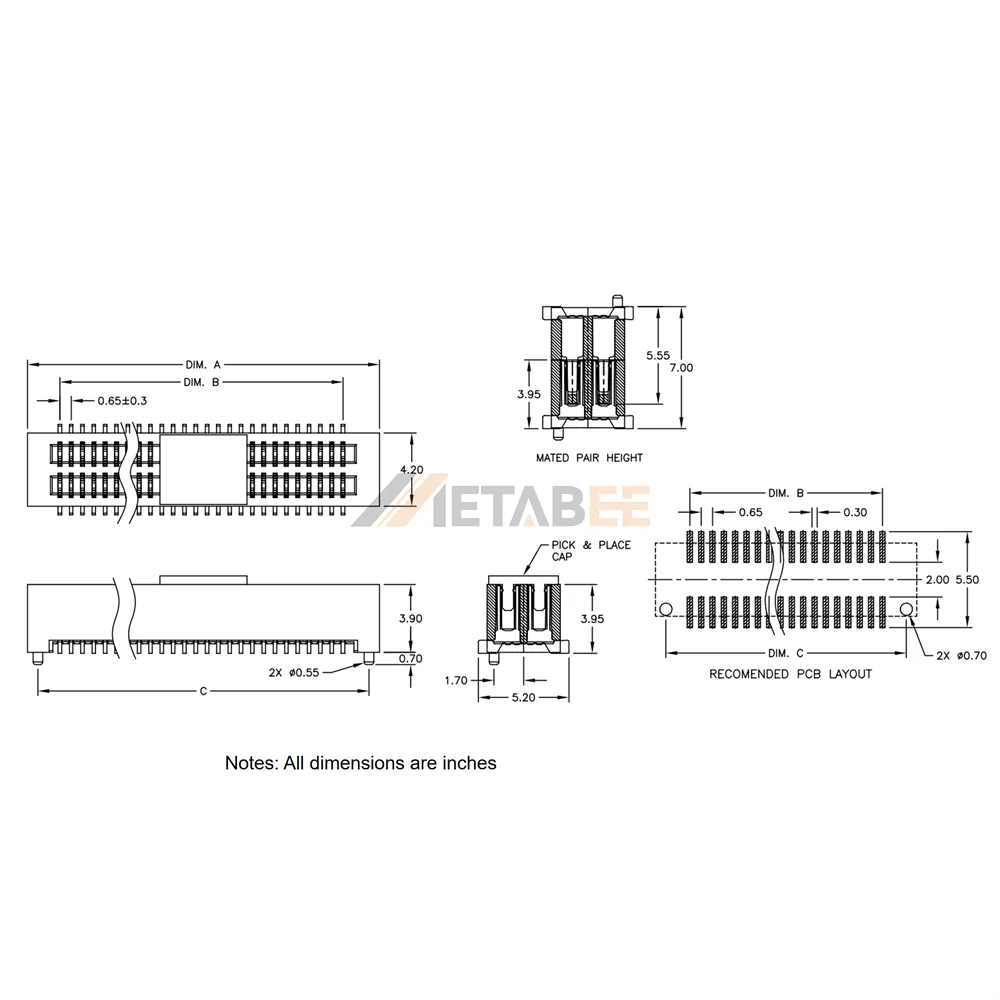

0.65mm Pitch Vertical Board to Board Socket, Vertical SMT
Introduction:
The 0.65mm Pitch Vertical Board to Board Socket is a high-density interconnect solution designed for compact electronic devices requiring reliable board-to-board connections. Featuring a dual-row configuration with 10 to 52 positions, this female connector maximizes PCB space utilization while ensuring stable signal transmission. Its vertical surface mount design supports automated assembly processes and enables efficient board stacking in space-constrained applications.
Manufactured with copper alloy contacts and gold flash plating, the connector delivers excellent electrical conductivity, corrosion resistance, and long-term mating reliability. The high-temperature thermoplastic insulator provides superior mechanical strength and dimensional stability during soldering and operation, making it suitable for demanding industrial and consumer electronics environments.
Designed to operate within a temperature range of -40°C to +85°C, the connector ensures dependable performance across various working conditions. The UL 94 V-0 rated housing offers enhanced flame resistance, helping meet safety requirements in modern electronic equipment. This connector is widely used in communication devices, industrial controls, portable electronics, automotive systems, and embedded applications requiring compact and reliable board-level interconnections.
Key Features
- 0.65mm pitch design for high-density PCB applications
- Female dual-row configuration with 10–52 positions available
- Vertical SMT mounting for automated assembly and space savings
- Copper alloy contacts with gold flash plating for reliable conductivity
- High-temperature thermoplastic insulator with UL 94 V-0 rating
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB65-S-XXX-G | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.65mm (0.0256″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-52 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.65mm Pitch Vertical Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
