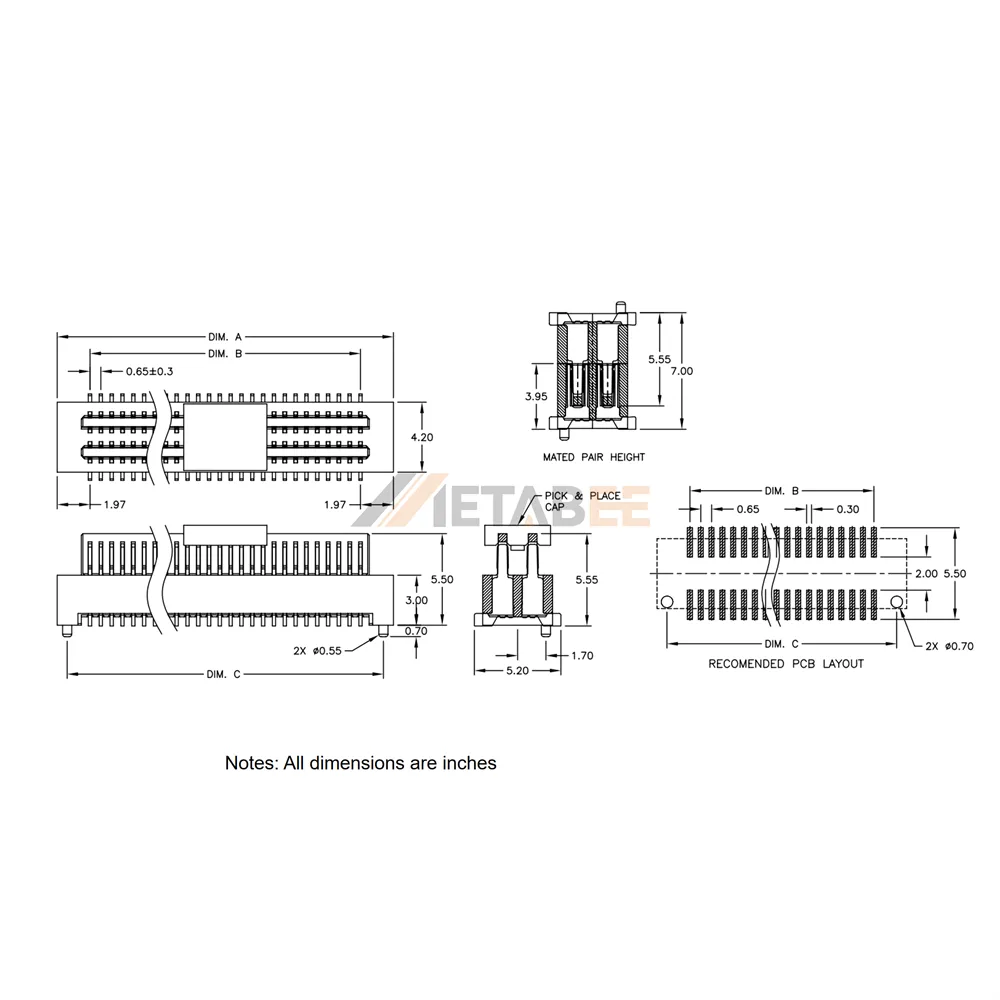

0.65mm Pitch Board to Board Plug, Vertical Surface Mount
Introduction:
Our high-performance 0.65mm pitch board-to-board connector plug is engineered to meet the demands of modern, high-density electronic applications. Featuring a dual-row configuration with versatile position options ranging from 10 to 52 positions, this male header offers exceptional design flexibility for compact layouts. Its vertical orientation and surface mount technology (SMT) ensure seamless, reliable integration onto printed circuit boards (PCBs), making it an ideal choice for mezzanine configurations and space-constrained devices.
Built with premium materials, this connector guarantees excellent electrical conductivity and long-term durability. It utilizes a high-grade copper alloy contact with premium gold flash plating to prevent corrosion and maintain low contact resistance. Encased in a high-temperature thermoplastic insulator, the connector maintains structural integrity during reflow soldering and withstands harsh environments, operating flawlessly from -40°C to +85°C while meeting the stringent UL 94 V-0 flammability safety standard.
Key Features
- 0.65mm Fine Pitch: Enables high-density PCB layouts for compact devices.
- Dual-Row Male Plug: Available in versatile options from 10 to 52 positions.
- Vertical SMT Design: Supports vertical surface mounting for efficient assembly.
- Gold-Plated Contacts: Copper alloy with gold flash for optimal conductivity.
- High-Temp Housing: Thermoplastic material withstands rigorous reflow soldering.
- Industrial-Grade Safety: Operating range of -40°C to +85°C and UL 94 V-0 rated.
Main Specifications:
General Information:
| Product No.: | YC-BB65-P-XXX-G | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.65mm (0.0256″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-52 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.65mm Pitch Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
