0.8mm Fine Pitch Board to Board Plug, SMT
Introduction:
The 0.8mm Fine Pitch Board to Board Plug is a high-performance male connector designed for compact PCB interconnection in space-limited electronic applications. Featuring a 0.8mm pitch, dual-row configuration, and 10 to 100 positions, it provides flexible connection options while ensuring stable signal transmission. Its vertical surface mount (SMT) design supports automated assembly and improves PCB layout efficiency.
Built with copper alloy contacts and gold flash plating, this connector offers excellent electrical conductivity, low contact resistance, and enhanced corrosion resistance for dependable long-term performance. The high-temperature thermoplastic insulator delivers outstanding thermal stability, while the UL 94 V-0 flammability rating ensures enhanced safety. With an operating temperature range of -40°C to +85°C, it is ideal for consumer electronics, industrial equipment, communication systems, and embedded devices.
Key Features
- 0.8mm fine pitch male board-to-board plug
- Dual-row configuration with 10–100 positions
- Vertical surface mount (SMT) design
- Copper alloy contacts with gold flash plating
- Hi-temp thermoplastic insulator, UL 94 V-0 rated
- Operating temperature: -40°C to +85°C

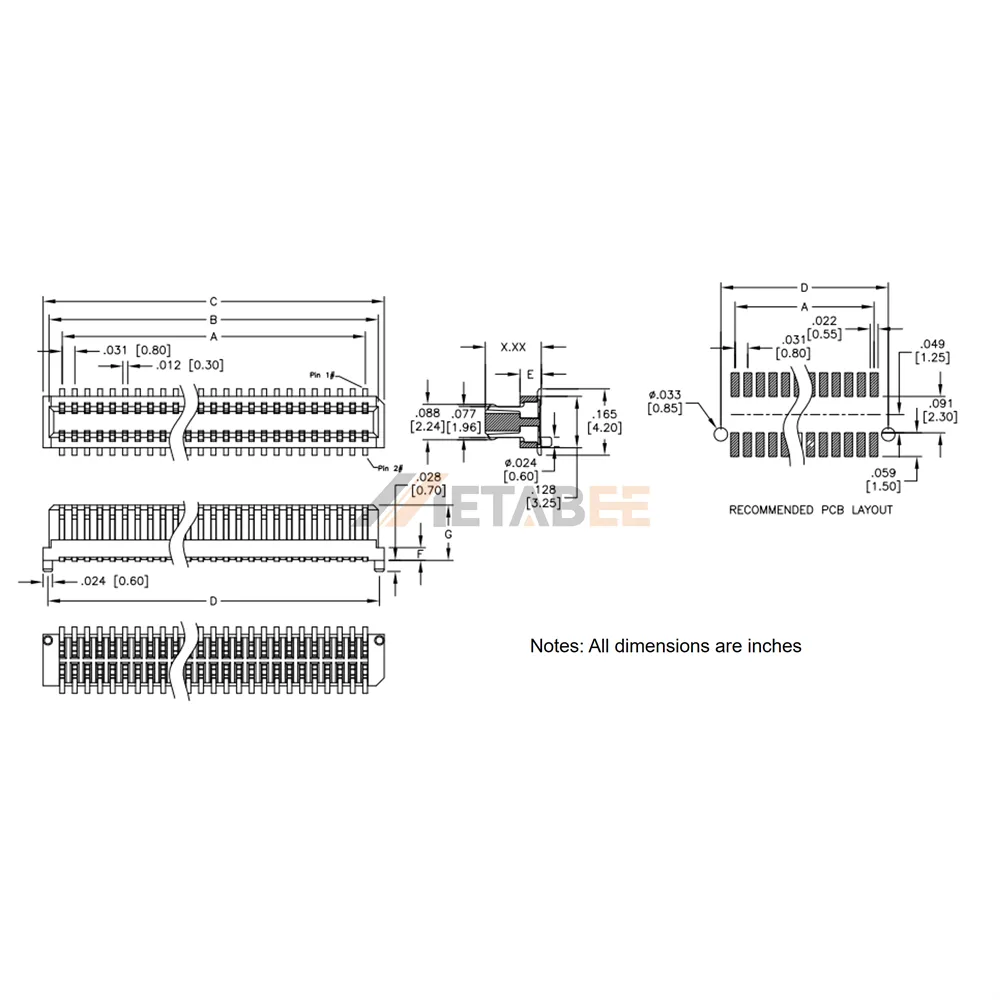

Main Specifications:
General Information:
| Product No.: | YC-BB8-PN-XXX-G-XXX-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 10-100 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Fine Pitch Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
