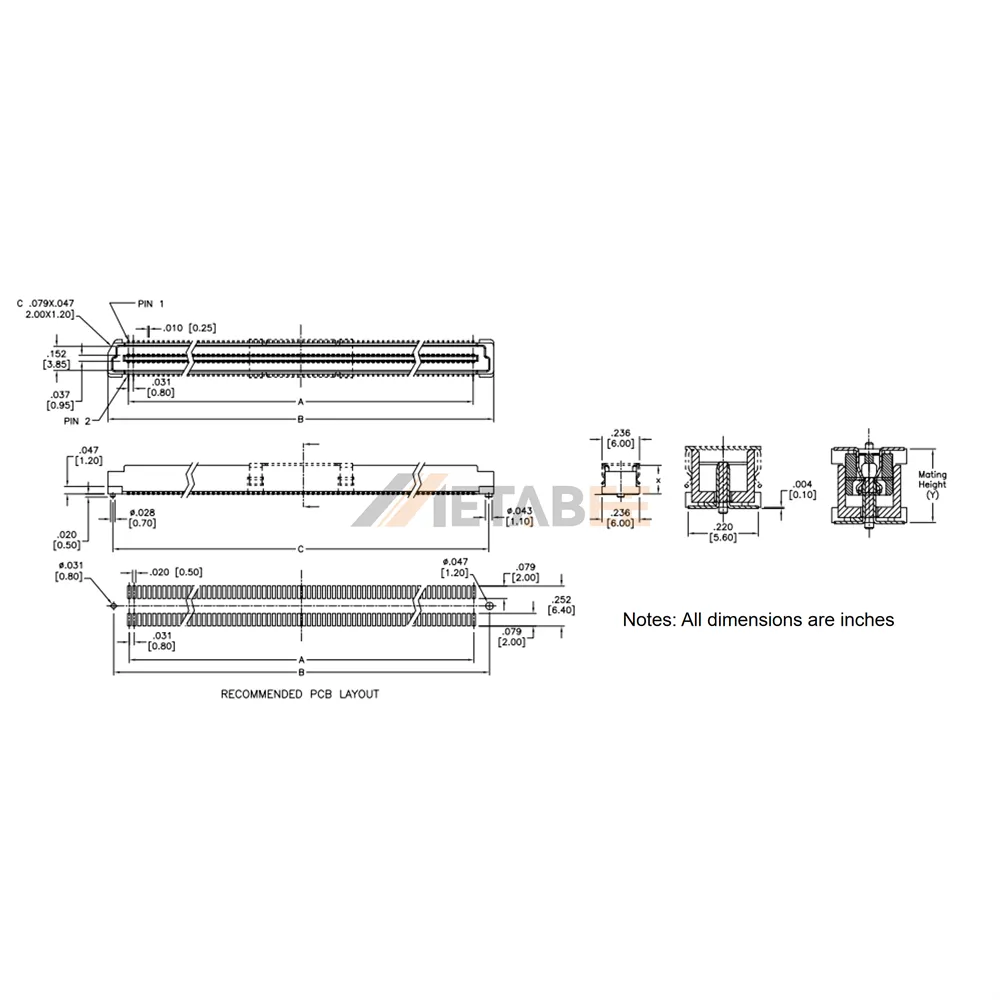

0.8mm Pitch Vertical Board to Board Plug, Suirface Mount
Introduction:
The 0.8mm Pitch Vertical Board to Board Plug is a compact male connector designed for high-density PCB interconnection in modern electronic equipment. Featuring a 0.8mm pitch, dual-row layout, and vertical surface mount (SMT) configuration, it enables reliable board-to-board connections while maximizing PCB space utilization. Its design is ideal for automated assembly and compact device architectures.
Engineered with copper alloy contacts and gold flash plating, this connector ensures excellent electrical conductivity, low contact resistance, and reliable mating performance. The high-temperature thermoplastic insulator provides superior thermal stability, while the UL 94 V-0 flammability rating enhances safety in demanding environments. With an operating temperature range of -40°C to +85°C, it is well suited for industrial control systems, communication equipment, consumer electronics, and embedded applications.
Key Features
- 0.8mm pitch male board-to-board plug
- Dual-row vertical SMT configuration
- Copper alloy contacts for reliable conductivity
- Gold flash plating for improved corrosion resistance
- Hi-temp thermoplastic insulator, UL 94 V-0 rated
- Operating temperature: -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB8-PO-XXX-SG-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Vertical Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
