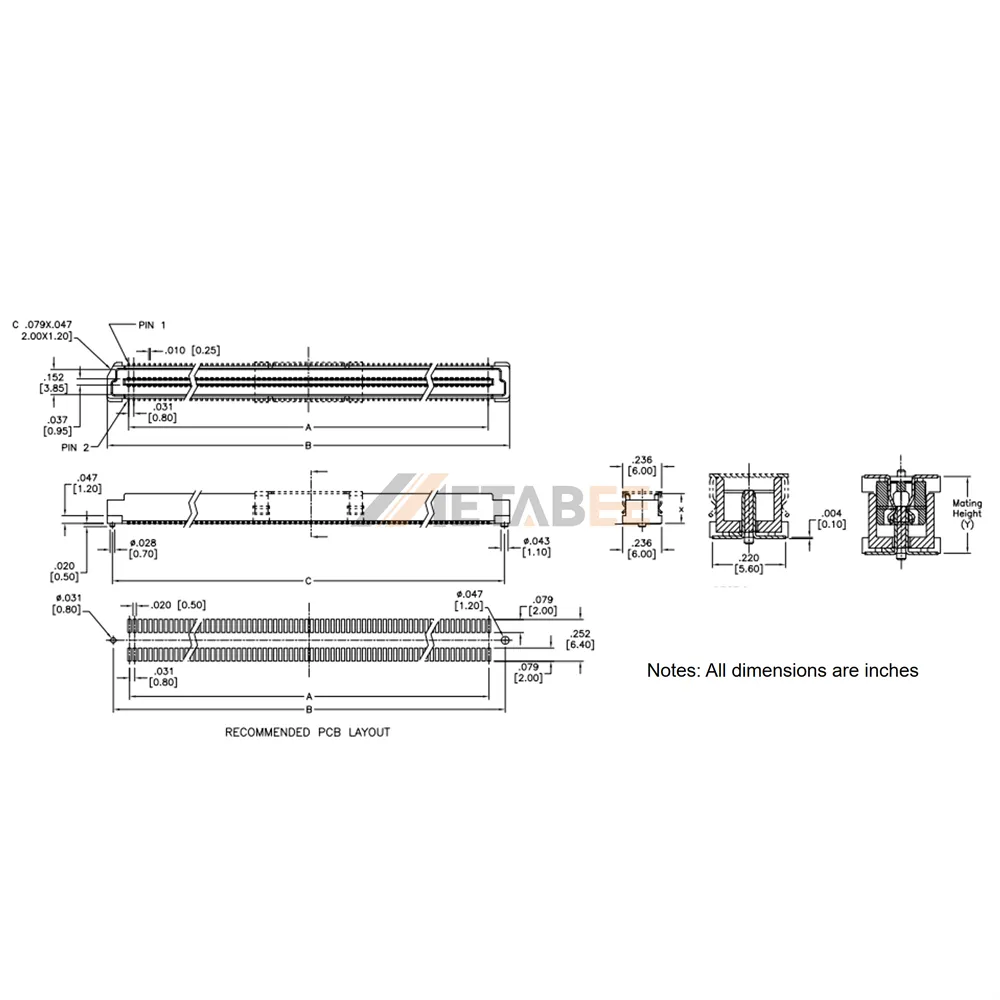

0.8mm Pitch Board to Board Plug, Suirface Mount, Vertical
Introduction:
This 0.8mm pitch board-to-board Male is engineered for high-density interconnections in surface mount (SMT) applications. Featuring a precise 0.8mm centerline pitch, this connector significantly optimizes PCB real estate, making it ideal for compact electronic designs. Its vertical mounting orientation ensures efficient board stacking, providing robust and reliable connections while streamlining the overall assembly process. The dual-row configuration enhances contact density, crucial for complex signal routing and power distribution requirements.
Constructed for demanding operational environments, this plug utilizes high-grade Copper Alloy contacts, meticulously finished with a Gold flash plating. This combination guarantees superior electrical conductivity, exceptional corrosion resistance, and sustained signal integrity over prolonged periods. The insulator, crafted from advanced Hi-temp thermoplastic, delivers excellent dielectric strength and thermal stability, ensuring consistent performance. With an operating temperature range of -40℃ to +85℃ and a UL 94 V-0 flammability rating, this connector offers both resilience and safety, meeting stringent industry standards.
Key Features
- 0.8mm Pitch: Ultra-fine pitch for maximizing space efficiency on PCBs.
- Surface Mount (SMT): Designed for automated assembly, simplifying manufacturing and reducing costs.
- Vertical Mounting: Facilitates efficient board stacking and flexible design architectures.
- Dual Row Male Plug: Ensures high-density, reliable interconnections for complex circuits.
- Gold Flash Plating: Provides excellent electrical performance and robust corrosion resistance.
- UL 94 V-0 Rated: Enhances safety through superior flame retardancy.
Main Specifications:
General Information:
| Product No.: | YC-BB8-PO-XXX-G-XXX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.8mm (0.0315″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | Customized | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.8mm Pitch Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
