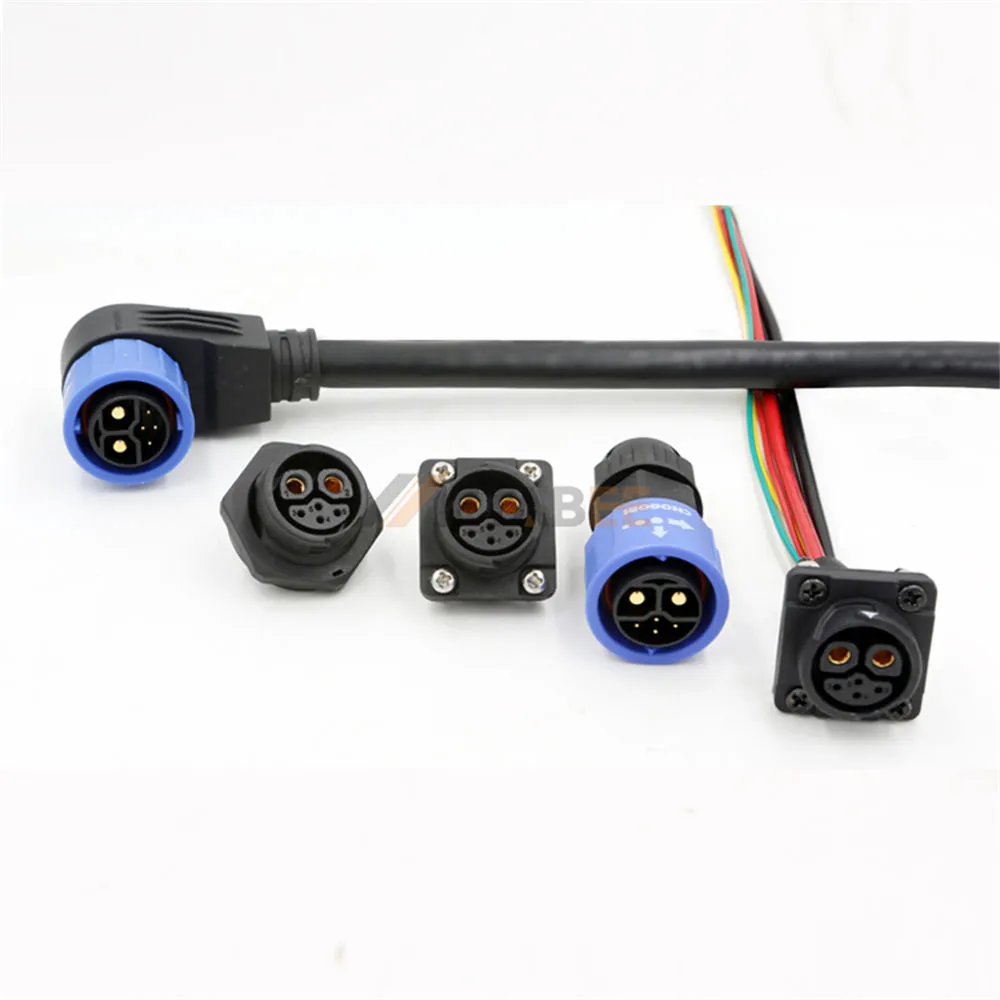

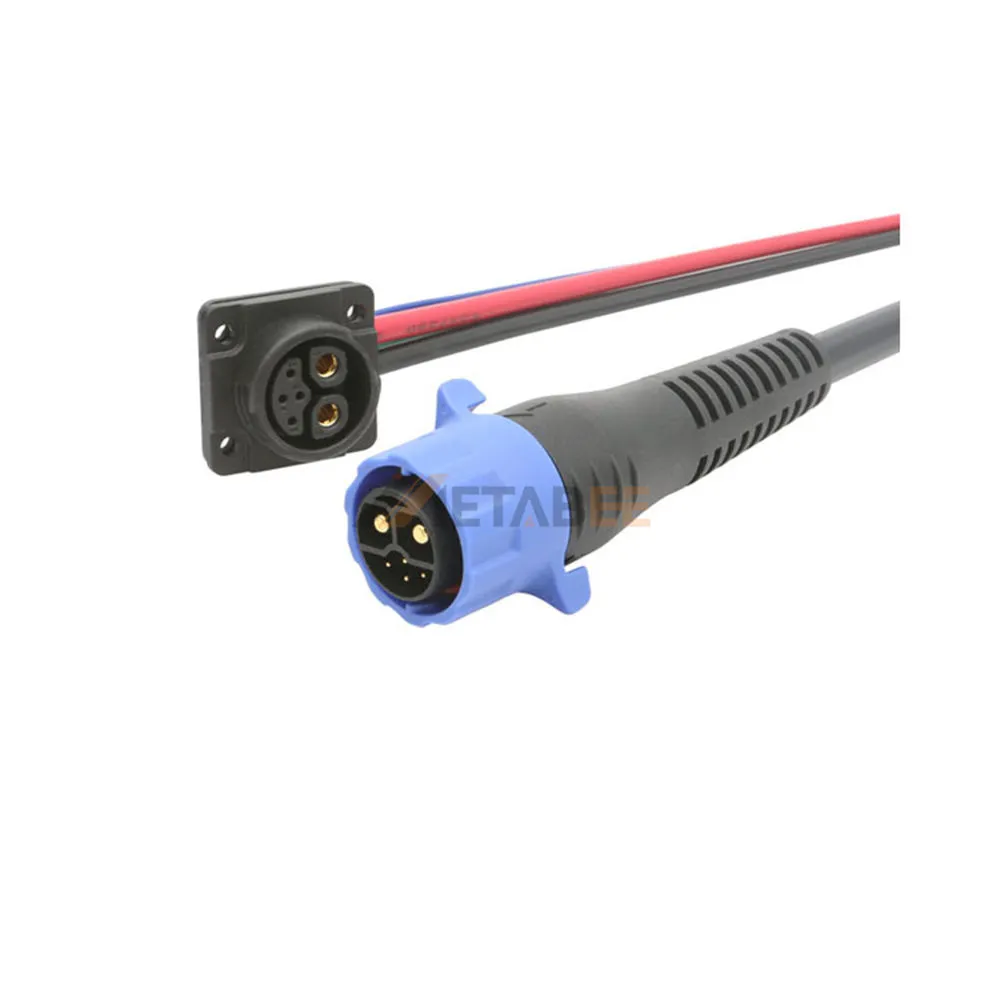

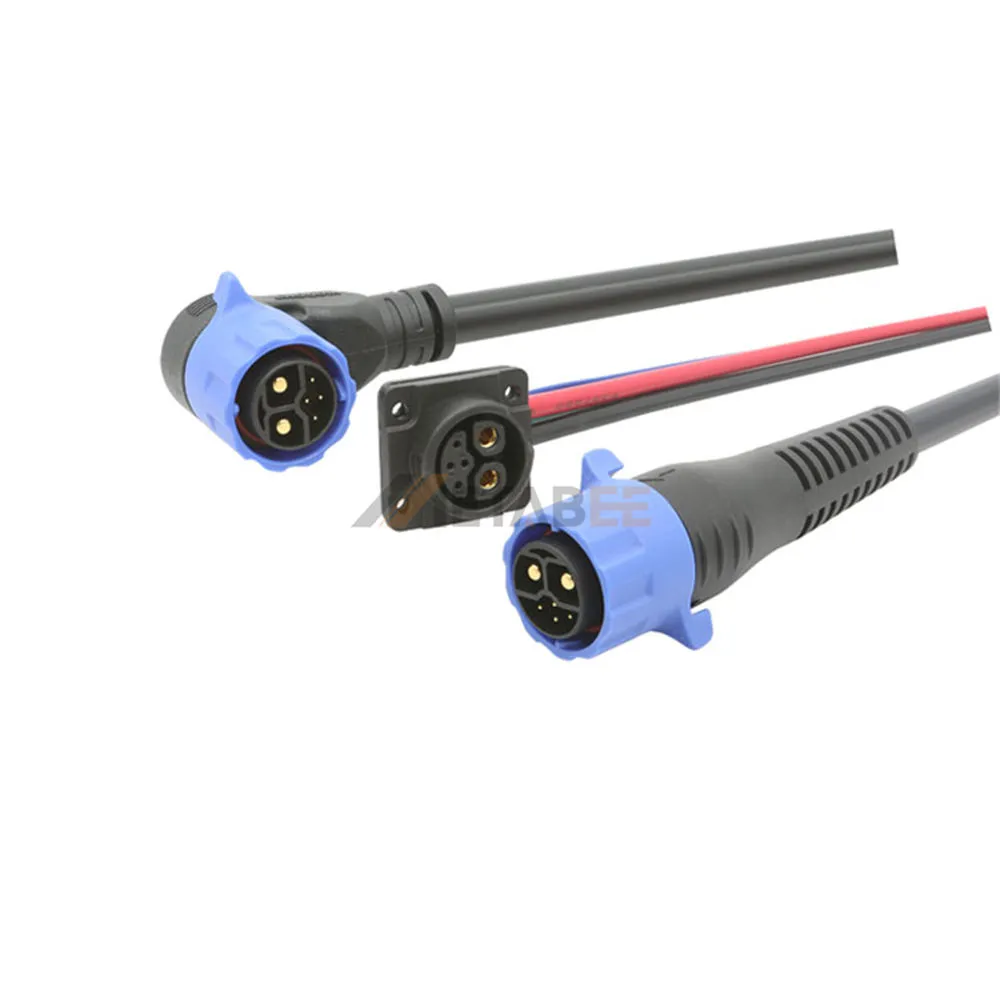

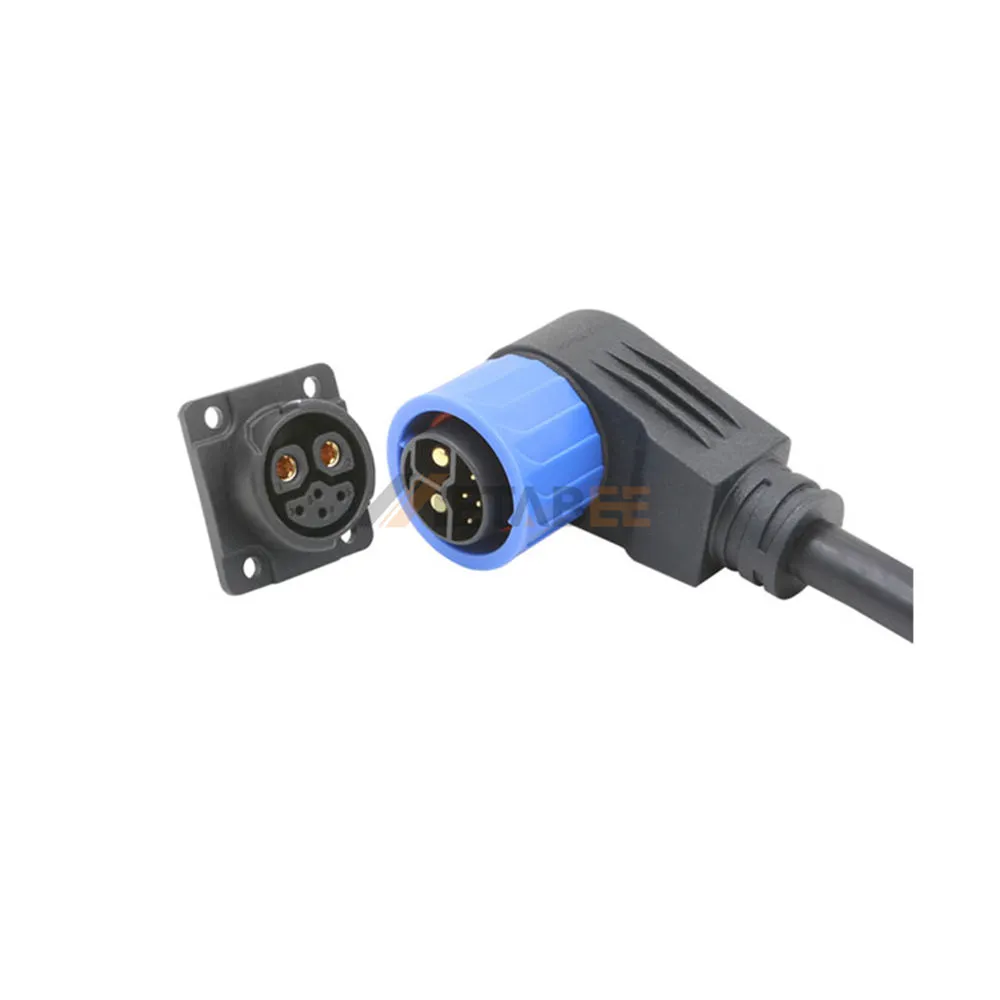

Waterproof Power & Signal Hybrid Charger for Electric Motorcycles, 2+4 Pin, IP67
Introduction
The Waterproof Power & Signal Hybrid Charger for Electric Motorcycles, 2+4 Pin, IP67 is designed to provide reliable power transmission and signal connectivity for electric motorcycle charging systems. Featuring a 2+4 pin configuration, this hybrid connector integrates power and signal connections into a compact interface, supporting efficient electrical connections in demanding environments.
With an IP67 protection rating, this connector offers protection against dust ingress and temporary immersion in water under specified test conditions. Its UL94 V-0 flame-retardant material enhances fire safety, while the wide operating temperature range of -40°C to +105°C ensures dependable performance under varying environmental conditions.
Key Features:
-
2+4 Pin Configuration: Combines power and signal connections.
-
IP67 Protection: Dust-tight and resistant to temporary water immersion.
-
UL94 V-0 Flame Retardancy: Enhances electrical safety.
-
Wide Temperature Range: Operates from -40°C to +105°C.
-
Hybrid Connectivity: Supports integrated power and signal transmission.
-
Electric Motorcycle Application: Suitable for charging systems and electrical connections.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0013 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+4 Pin | |
| Wire Gauge: | Power 9AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 80V DC | |
| Rated Current: | 40A+5A | |
| Insulation Resistance: | 100MΩ at 500V DC | |
| Withstanding Voltage: | 1,500V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
