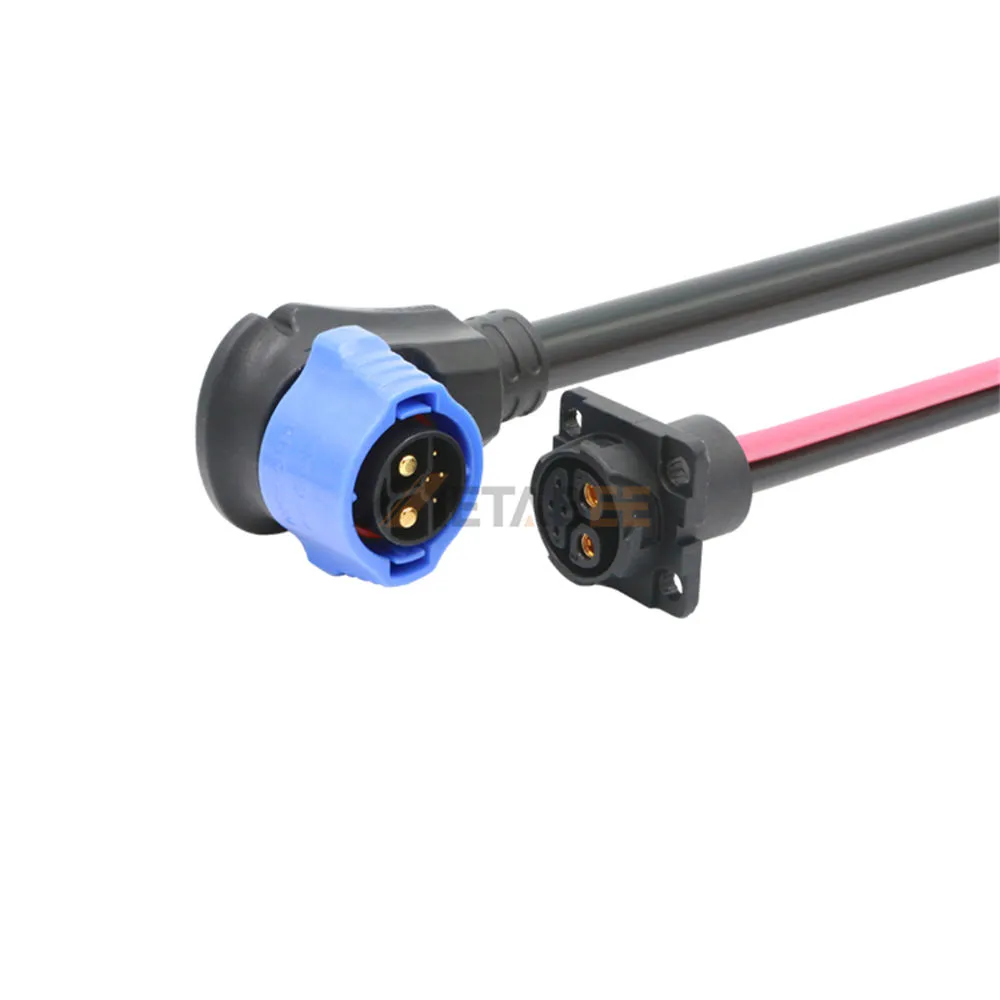

Electric Two-Wheeler Charging & Discharging Plug/Socket, Push Lock, 2+4 Pin
Introduction
The Electric Two-Wheeler Charging & Discharging Plug/Socket, Push Lock, 2+4 Pin is designed for electric two-wheeler power connection systems, supporting charging and discharging applications. Its 2+4-pin configuration integrates power and signal connections in a compact interface, while the push-lock mechanism ensures secure mating and convenient connection and disconnection.
Featuring an IP67 protection rating, this connector provides dust-tight protection and resistance to temporary water immersion under specified test conditions. Its UL94V-0 flame-retardant material and operating temperature range of -40°C to +105°C support reliable operation in demanding environments.
Key Features:
-
2+4-Pin Configuration: Integrates power and signal connections.
-
Push-Lock Mechanism: Enables secure and convenient mating.
-
IP67 Protection: Provides dust-tight and water-immersion protection.
-
UL94V-0 Flame Retardancy: Supports fire-safety requirements.
-
Wide Temperature Range: Operates from -40°C to +105°C.
-
Dual-Function Application: Designed for electric two-wheeler charging and discharging systems.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0018 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+4 Pin | |
| Wire Gauge: | Power 9AWG/Max, Signal 20AWG/Max |
|
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 300V+30V | |
| Rated Current: | 50A+5A | |
| Insulation Resistance: | 500MΩ at 500V DC | |
| Withstanding Voltage: | 2,000V AC | |
| Durability (Mating): | ≥3000 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
