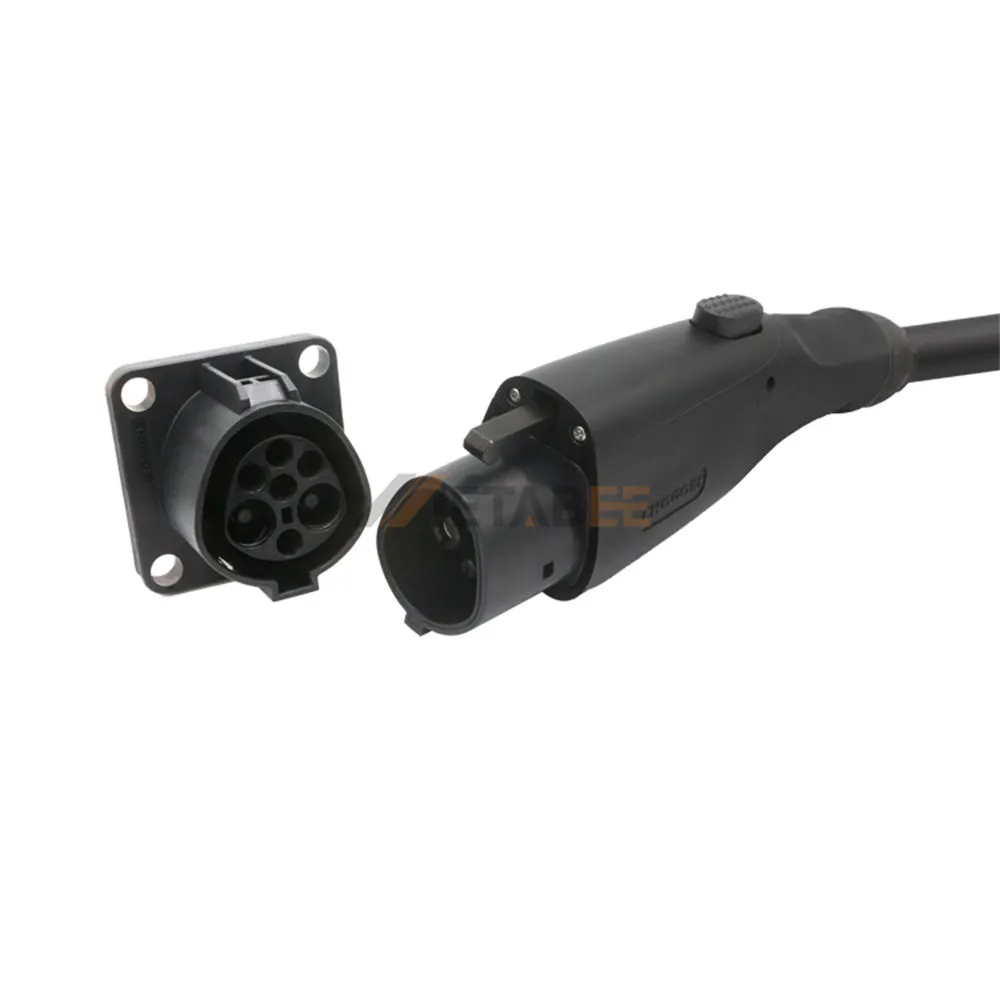

LEV Comercial Power & Signal Charging Gun, 2+5 Pin, IP55
Introduction
Lev comercial power & signal charging gun, 2+5 pin, IP55. This commercial-grade charging gun combines two power pins with five signal pins, enabling simultaneous power delivery and signal communication for light electric vehicles. The UL94V-0 flame-retardant housing and IP55 rating provide reliable protection against dust and water jets. Rated from -40°C to 105°C, it maintains stable performance across extreme temperature ranges.
Key Features:
- 2+5 pin power and signal layout
- IP55 dust and water-jet protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Stable power delivery for LEV charging
- Reliable signal transmission in one gun
Main Specifications:
General Information:
| Part No.: | YC-E1001-0053 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2+5 Pin | |
| Wire Gauge: | N/A | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 120V DC (Power)，30V DC (Signal) | |
| Rated Current: | 100A+2A | |
| Insulation Resistance: | >100MΩ at DC 500V | |
| Withstanding Voltage: | 2,000V AC (Power)， 500V AC (Signal) |
|
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP55 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
