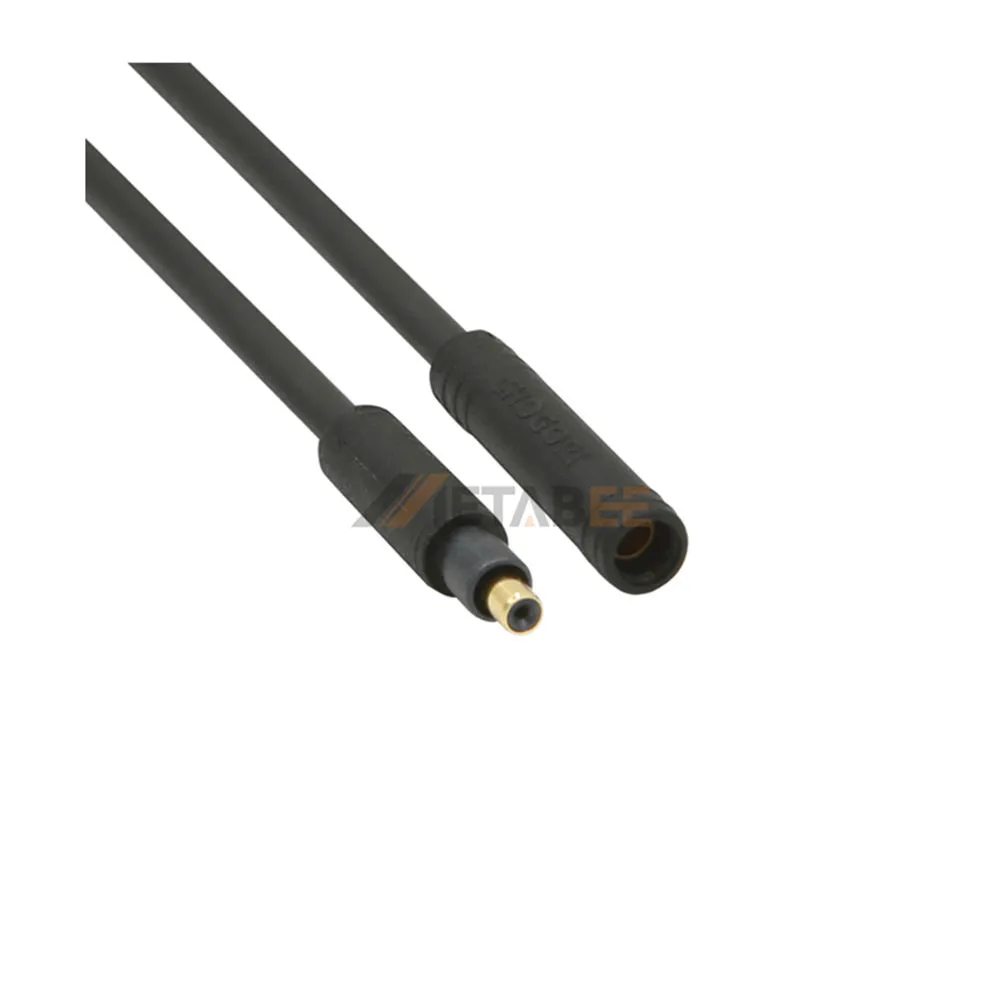

Electric Two-Wheeler Signal Connector, Push-Lock, IP66
Introduction
Optimize your light electric mobility systems with this high-precision signal connector. Designed specifically for electric motorcycles, e-scooters, and light EVs, it delivers uninterrupted data communication between controllers, displays, throttle assemblies, and battery management systems.
Equipped with an intuitive push-lock mechanism, this connector guarantees fast, blind-mating capability alongside anti-loosening vibration protection. Its robust UL94V-0 flame-retardant casing and IP66 sealing protect critical electronics from harsh road vibrations, high-pressure washdowns, and extreme environmental elements.
Key Features:
- Instant Push-Lock Coupling: Ensures quick, audible click-mating and anti-vibration disconnection prevention.
- IP66 Ingress Protection: Fully dust-tight and resistant to strong road spray, rain, and water jets.
- UL94V-0 Flame Retardance: Premium self-extinguishing housing offers superior fire and thermal safety.
- Extreme Temperature Range: Operates consistently from -40°C to 105°C in all weather conditions.
- Stable Signal Transmission: Low-resistance contacts maintain precise communication for critical EV electronics.
- Compact & Rugged Build: Space-efficient layout fits tight chassis frames with high mechanical durability.
Main Specifications:
General Information:
| Part No.: | YC-E1001-0045 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | N/A | |
| Wire Gauge: | 26AWG/0.12mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 3A | |
| Insulation Resistance: | 20MΩ at 500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
