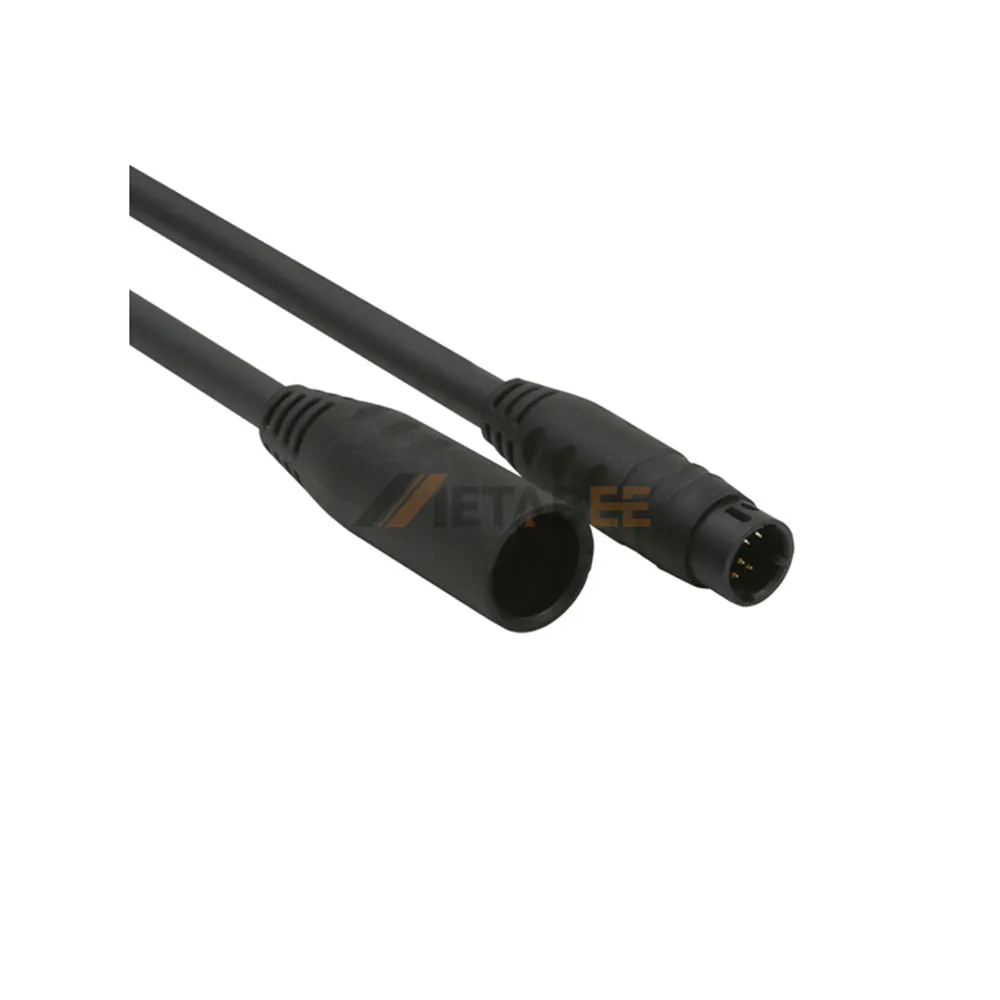

11 Pin Mini Signal Connector for E2W Pack, IP67
Introduction
The 11 pin mini signal connector for E2W pack, IP67 is designed for reliable signal transmission in electric two-wheeler battery pack systems. Its compact design supports space-efficient integration, while the 11-pin configuration accommodates multiple signal connections for battery management and control applications.
With IP67 protection against dust and temporary water immersion, this connector is suitable for demanding operating environments. Its UL94V-0 flame-retardant rating and operating temperature range of -40°C to +105°C support dependable performance under varying environmental conditions.
Key Features:
- Pin Configuration: 11-pin signal connector
- Design: Compact mini connector
- Protection Rating: IP67 dust and water protection
- Flame Retardancy: UL94V-0 rated
- Operating Temperature: -40°C to +105°C
- Application: Electric two-wheeler (E2W) battery packs
Main Specifications:
General Information:
| Part No.: | YC-E1001-0051 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 11 Pin | |
| Wire Gauge: | 26AWG/ Max | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 2A | |
| Insulation Resistance: | 20MΩ at 500V DC | |
| Withstanding Voltage: | 250V AC | |
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP67 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
