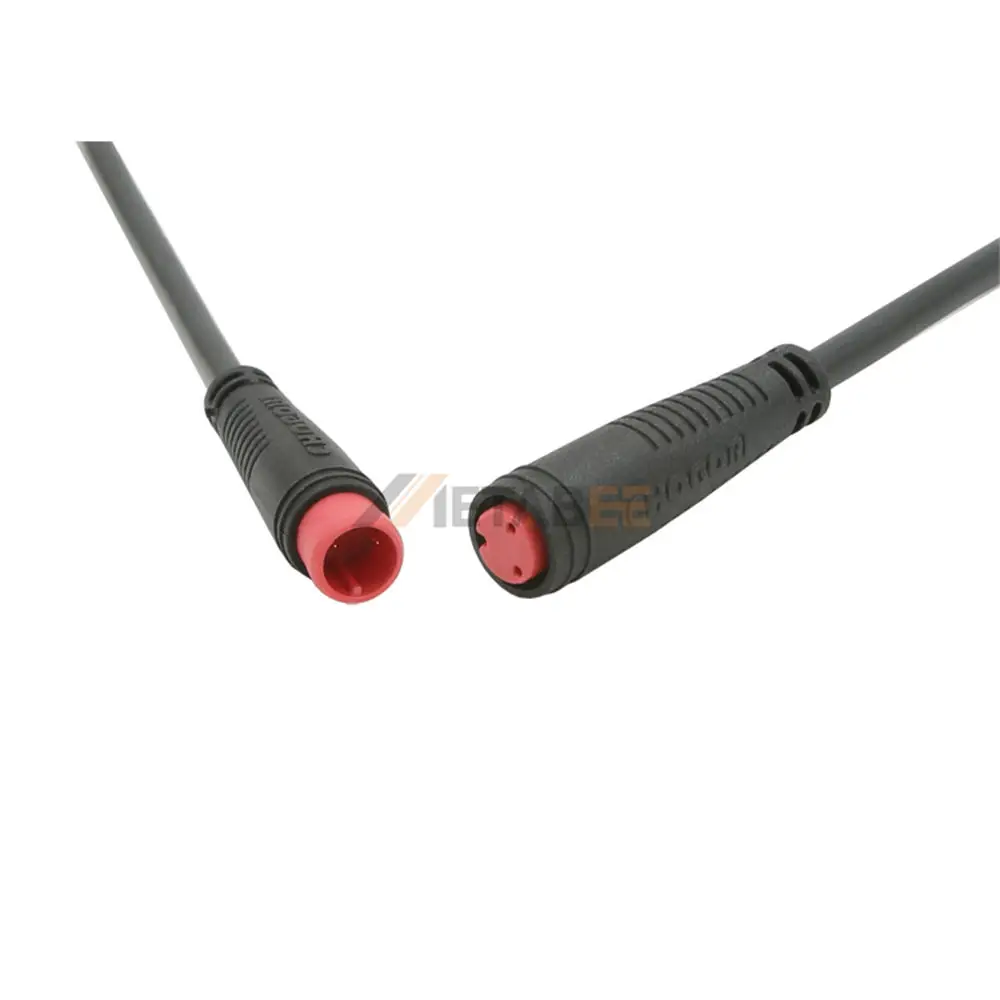

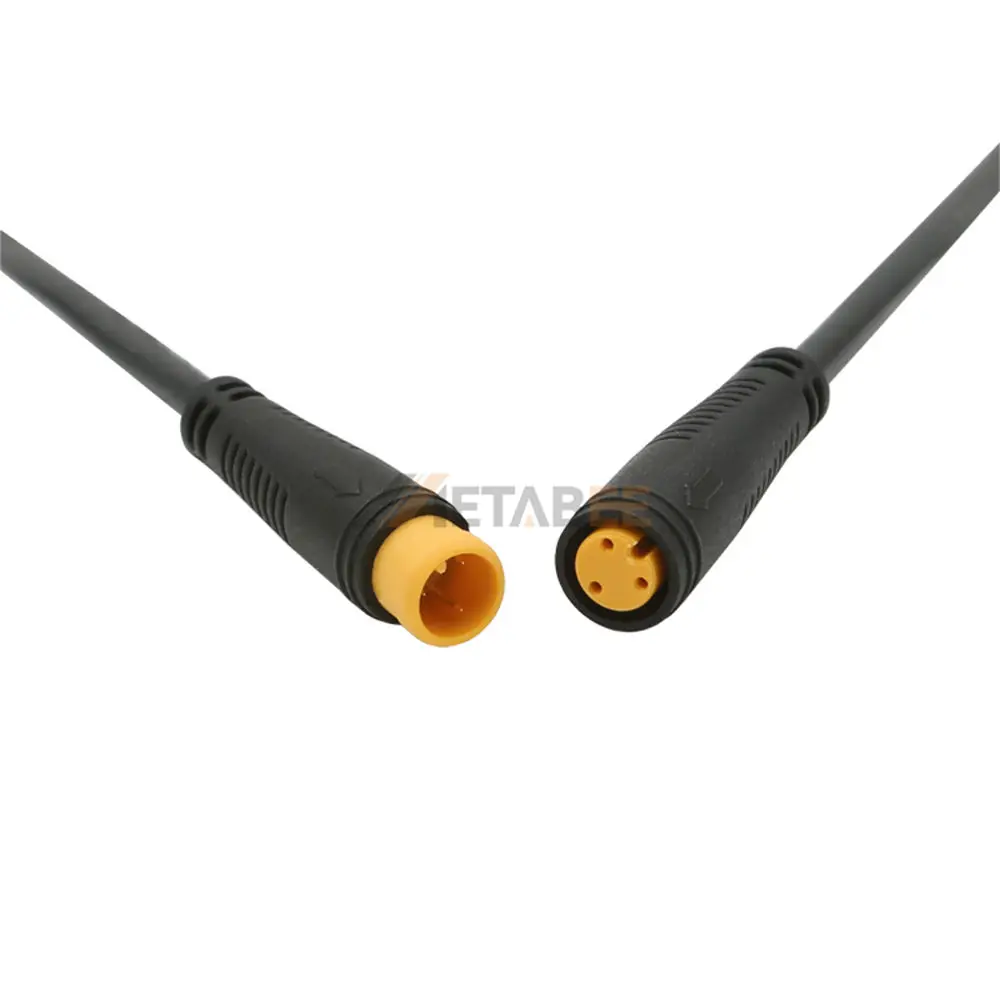

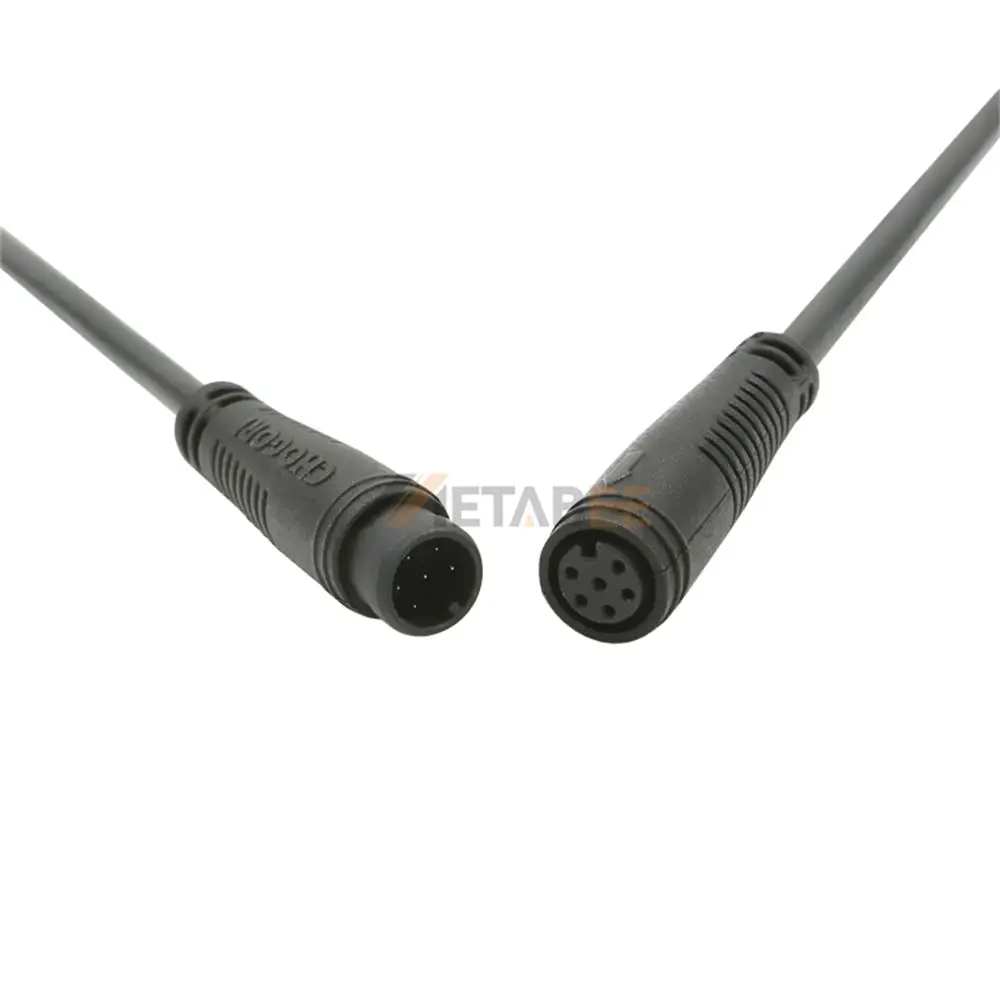

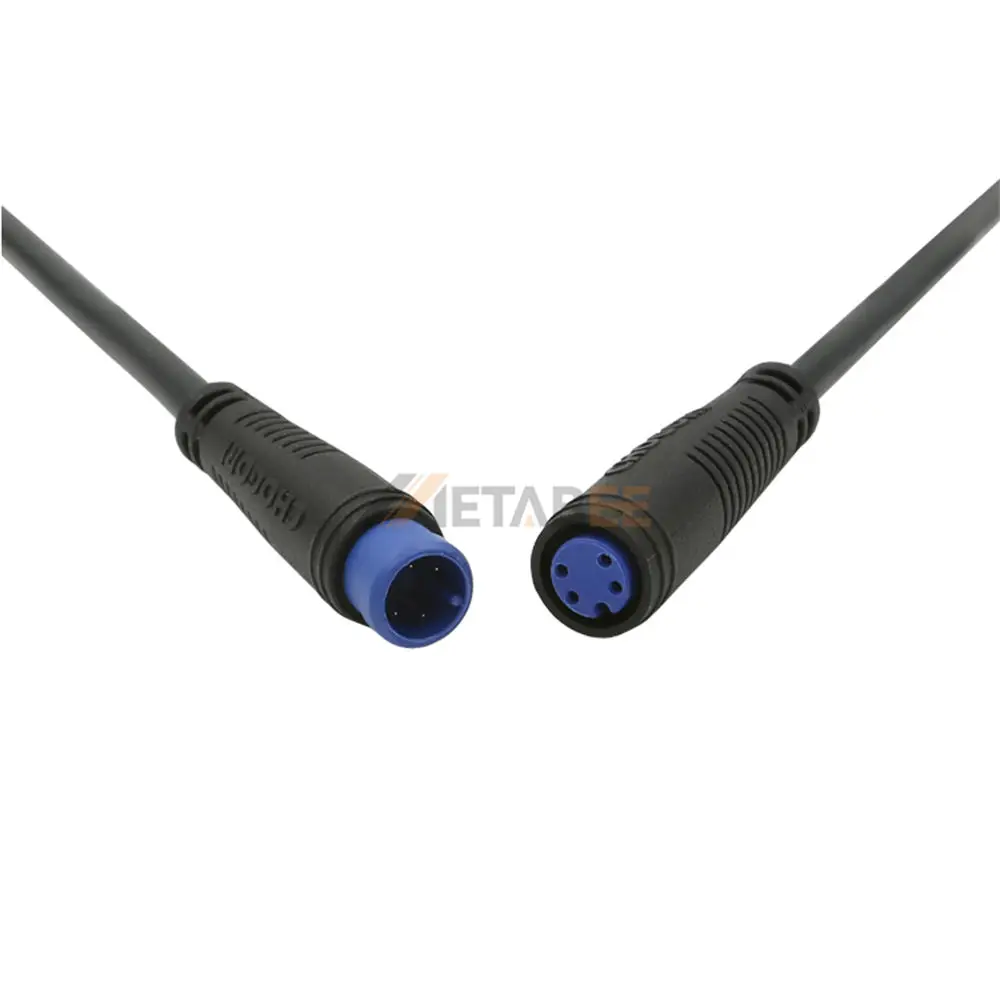

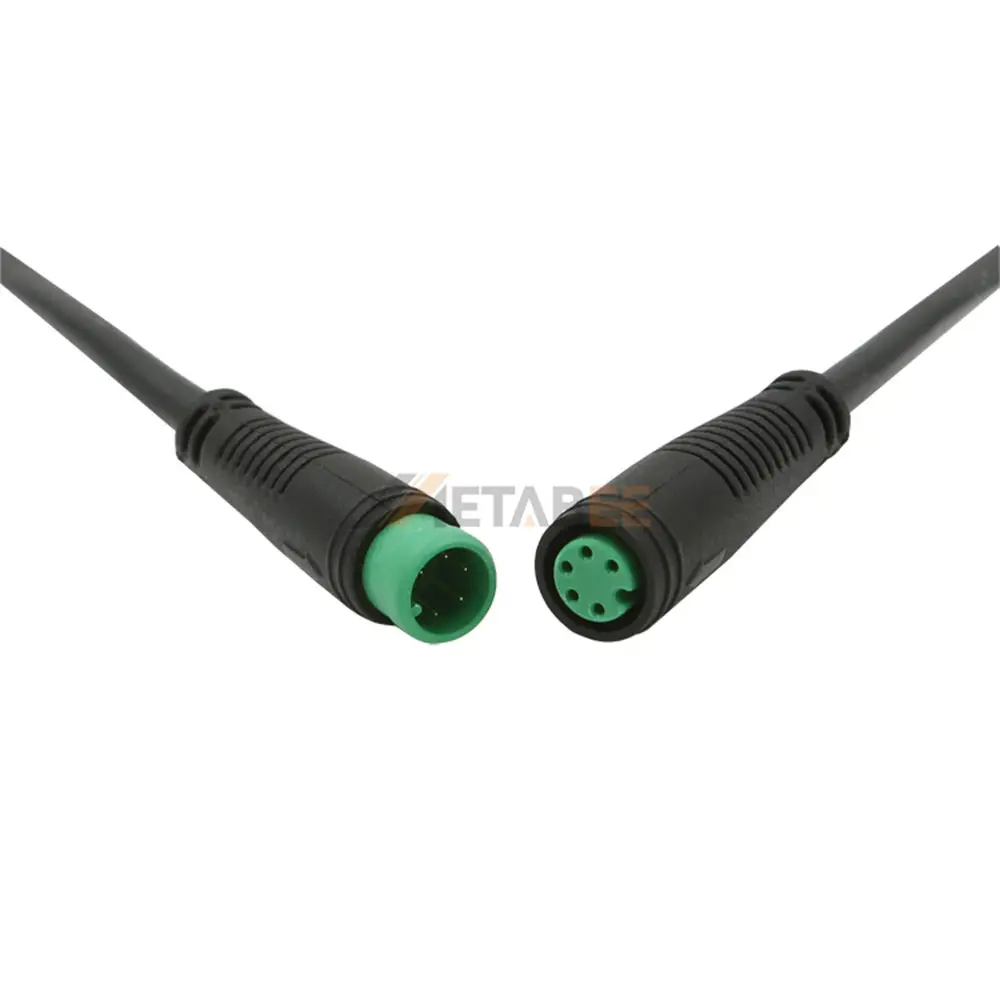

Multi-Pin Circular Waterproof Signal Connector for E-bike, 2-6 Pin, IP66
Introduction
Multi-pin circular waterproof signal connector for e-bike, 2-6 pin, IP66. This circular connector offers a flexible 2-6 pin configuration, supporting a range of signal transmission needs for e-bike systems. The UL94V-0 flame-retardant housing and IP66 rating provide robust protection against dust and powerful water jets. Operating from -40°C to 105°C, it ensures stable signal integrity in harsh riding environments.
Key Features:
- Flexible 2-6 pin circular layout
- IP66 dust-tight and water-jet protection
- UL94V-0 flame-retardant housing
- Wide -40°C to 105°C operating range
- Stable signal transmission for e-bike systems
- Durable circular design for reliable mating
Main Specifications:
General Information:
| Part No.: | YC-E1001-0049 | |
| Product Series: | Electric Motorcycle Connectors | |
| Brand: | Metabee | |
| Number of Positions: | 2-6 Pin | |
| Wire Gauge: | 28AWG/0.12mm² | |
| Other Feature: | None |
Electrical Performance:
| Rated Voltage: | 48V AC/60V DC | |
| Rated Current: | 2A | |
| Insulation Resistance: | 20MΩ at 500V DC | |
| Withstanding Voltage: | 500V AC | |
| Durability (Mating): | 200 Cycles |
Environmental Performance:
| IP Rating: | IP66 | |
| Salt Spray: | 5% NaCl, 48h | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -40°C to +105°C |
Applications:
Electric motorcycle connectors provide reliable power and signal transmission for electric two-wheelers and related mobility systems.
Here are some main applications:
- Electric Motorcycles
- Electric Scooters
- Electric Moped Systems
- Battery Pack Connections
- Battery Charging System
- Motor Controllers
- Battery Management Systems (BMS)
- Electric Motorcycle Wiring Harnesses
- Electric Delivery Motorcycles
- Electric Off-Road Motorcycles
